Product Details
Place of Origin: Dongguan, China
Brand Name: HOTHMI
Model Number: HTG12864-124
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Product Type: |
Graphic COG |
Show Contents: |
128x64 Dot |
Outline Size(mm): |
71.2x48.1x4.85mm |
Size Of View Window(mm): |
66.5x38.0mm |
Display Size(mm): |
60.78x32.94mm |
Point Spacing(mm): |
0.49x0.45mm |
Visual Angle: |
6H O'clock |
Connection PIN Number: |
36PIN |
Working Temperature: |
-20~70 ℃ |
Power Supply Voltage: |
3.3 V |
Driver Chip Model: |
ST7565R |
Product Type: |
Graphic COG |
Show Contents: |
128x64 Dot |
Outline Size(mm): |
71.2x48.1x4.85mm |
Size Of View Window(mm): |
66.5x38.0mm |
Display Size(mm): |
60.78x32.94mm |
Point Spacing(mm): |
0.49x0.45mm |
Visual Angle: |
6H O'clock |
Connection PIN Number: |
36PIN |
Working Temperature: |
-20~70 ℃ |
Power Supply Voltage: |
3.3 V |
Driver Chip Model: |
ST7565R |

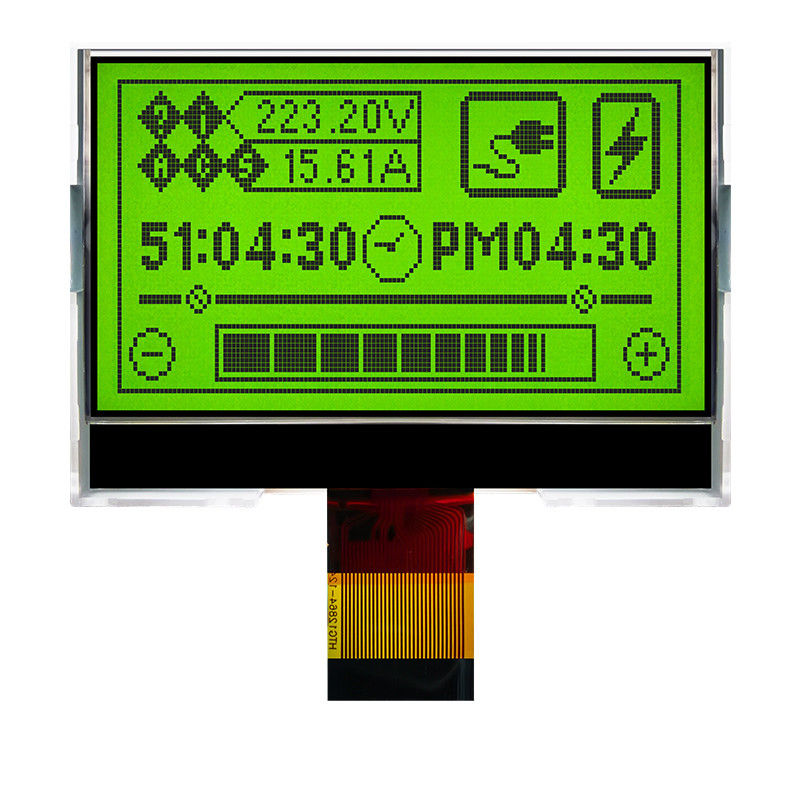

128x64 COG LCD Graphic Display Module ST7565R With Side White Backlight
HOTLCD 128x64 graphic Chip-On-Glass (COG) Liquid Crystal Display shows dark pixels on a white background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTG12864-124 display has an optimal view of 6:00, operates at 3.3V supply voltage and is RoHS compliant.
Product parameters
| ITEM | STANDARD VALUE | UNIT |
| Number of dots | 128x64 | dots |
| Module dimension | 71.2x48.1x4.85 | mm |
| View display area | 66.5x38.0 | mm |
| Dot size | 0.49x0.45 | mm |
| Dot pitch | 0.52x0.48 | mm |
| Operating temp | -20~70 | ℃ |
| Storage temp | -30~80 | ℃ |
| Driving Method | 1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V | |
| Viewing direction | 6H | |
| Display mode | FSTN | |
| Display type | TRANSMISSIVE / NEGATIVE | |
| Driver IC | ST7565R | |
| Backlight | WHITE | |
| Product application | instrumentation | |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
Available in character and graphic formats, COG (Chip-On-Glass) LCD Displays are designed without a PCB. The LCD driver/controller is bonded directly to the glass of the display. This allows COG displays to be smaller in size, more cost effective and a highly customizable display solution compared to typical LCD modules with a board.
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.
Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.
Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.
Choose from a wide selection of changes including shape, size, pinout, and component layout of your PCB to make it a perfect fit for your application.
