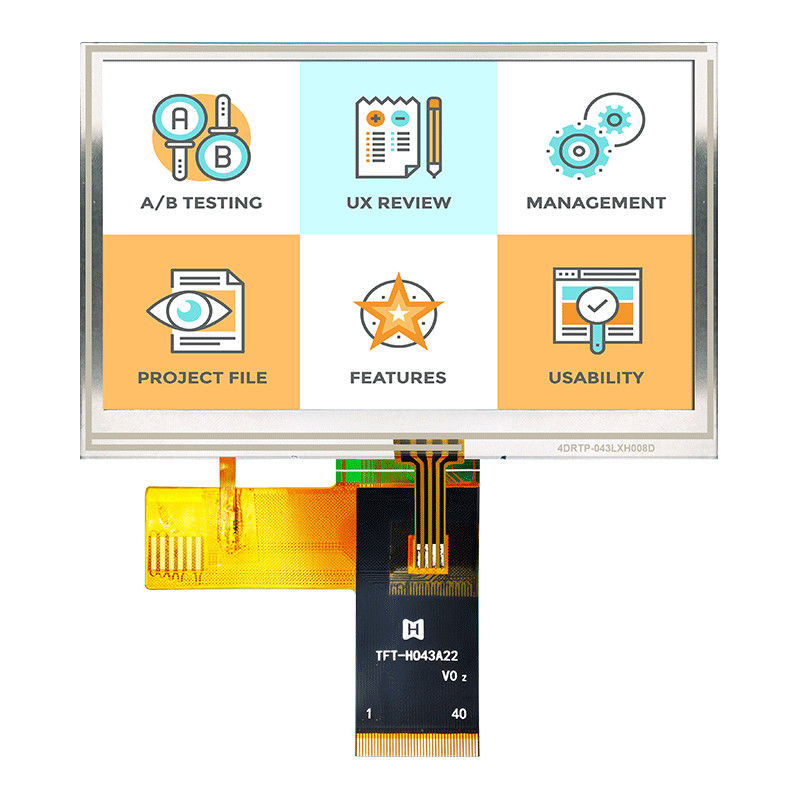

Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H043A22WQIST8R40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Format:: |
480 X 272 |
Display Type:: |
Sunlight Readable LCD |
Display Mode:: |
Transmissive |
Outline L X W X H:: |
105.46x67.11x4.60mm |
Active Area L X W:: |
95.04x53.86mm |
Luminance:: |
850cd/m2 |
Interface:: |
SPI+MCU |
Controller Type:: |
T.B.D |
Connection Type:: |
40 Pin |
Operating Temperature:: |
-30 ~ 80°C |
Display Format:: |
480 X 272 |
Display Type:: |
Sunlight Readable LCD |
Display Mode:: |
Transmissive |
Outline L X W X H:: |
105.46x67.11x4.60mm |
Active Area L X W:: |
95.04x53.86mm |
Luminance:: |
850cd/m2 |
Interface:: |
SPI+MCU |
Controller Type:: |
T.B.D |
Connection Type:: |
40 Pin |
Operating Temperature:: |
-30 ~ 80°C |
| project | Parameter Description | unit |
| TFT series | Standard TFT | |
| Diagonal size | 4.3” | Inch |
| Resolution | 480 × RGB × 272 (TFT) | dots |
| Dimensions | 105.46x67.11x4.3 | mm |
| Effective area (AA) | 95.04x53.86 | mm |
| LCD type | TFT, white, transmissive | |
| Display perspective | IPS(U80/D80/L80/R80) | |
| Aspect ratio | 1.1:2 | |
| Backlight type | LED, white | |
| TFT driver IC | TBD | |
| Touch panel | Resistive touch | |
| Surface | Anti-glare/glossy | |
| Brightness | 1000 | cd/㎡ |
| Operating temperature | -30~+80 | °C |
| Storage temperature | -30~+85 | °C |
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.
Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.
Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.
Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
