Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H043A22WQIST8C40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Format:: |
480 X 272 Dots |
Display Type:: |
Sunlight Readable MOUDLE |
Outline L X W X H:: |
105.46x67.11x4.30mm |
Active Area L X W:: |
95.04x53.86 |
Luminance:: |
850 Cd/m2 |
Interface:: |
SPI-MCU |
Controller Type:: |
GT911 |
Connection Type:: |
46 Pin |
Operating Temperature:°C: |
-30 ~ 80 |
Display Format:: |
480 X 272 Dots |
Display Type:: |
Sunlight Readable MOUDLE |
Outline L X W X H:: |
105.46x67.11x4.30mm |
Active Area L X W:: |
95.04x53.86 |
Luminance:: |
850 Cd/m2 |
Interface:: |
SPI-MCU |
Controller Type:: |
GT911 |
Connection Type:: |
46 Pin |
Operating Temperature:°C: |
-30 ~ 80 |

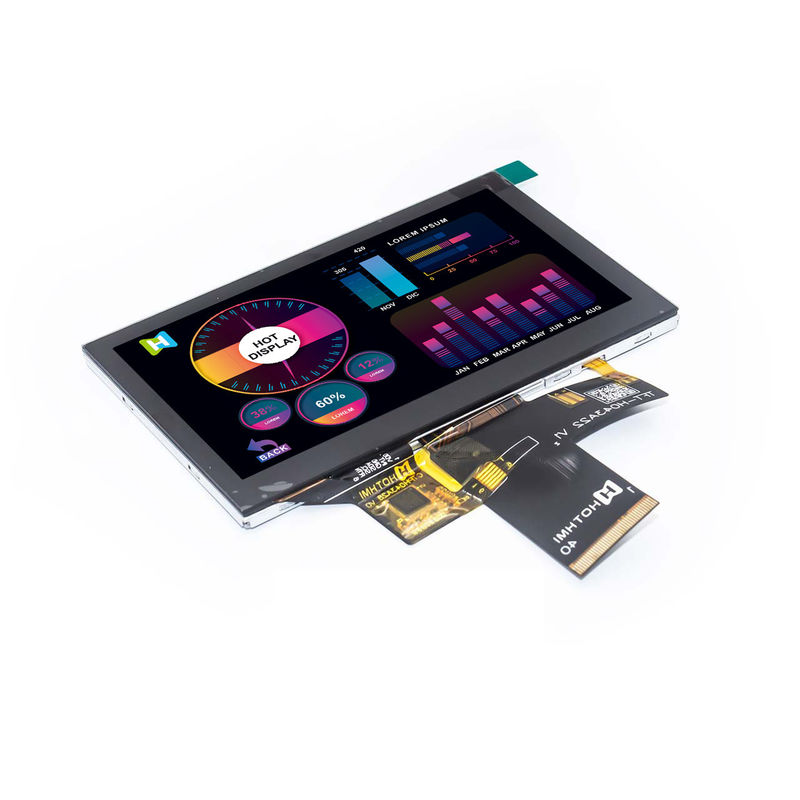

This 480x272 sunlight readable TFT is equipped with a powerful backlight for visibility in bright lighting conditions including direct sunlight. LCD display with SPI/MCU multi-interface and full viewing angle. This LCD monitor is RoHS compliant and has a 10-point multi-touch capacitive touchscreen.
General Feature
|
Item |
Standard Value |
Unit |
||
|
Display Size |
4.3 |
Inch |
||
|
Number of Pixels |
480x272 |
dots |
||
|
Active Area |
95.04x53.86 |
mm |
||
|
Outline Dimension |
105.46x67.11x4.30 |
mm |
||
|
Viewing Direction |
FULL O'clock |
- | ||
|
Interface |
Supports SPI/Dual SPI/Quard SPI and MCU 8-bit and 16-bit interfaces |
- |
||
|
Driver IC |
T.B.D | - | ||
|
Driver Condition |
VCI=3.3V(Typ) |
V |
||
|
Backlight |
White LED/12 PCS/6 PCS serial 2 ways parallel |
- | ||
|
Touch Panel |
WHITOUT TOUCH | |||
|
CTP Driver IC |
- | - | ||
|
Driver Condition |
VDD=3.3V |
V |
||
|
TFT Operation AT |
-30 ～ +80 |
℃ |
||
|
TFT Storage AT |
-30 ～ +85 |
℃ |
||
TFT Pin Description
|
Pin NO. |
Symbol |
Description |
| 1 | YU/INT |
Res touch control pins, not connected when not in use |
| 2 | XL/RTN |
Res touch control pins, not connected when not in use |
| 3 | YD/SDA |
Res touch control pins, not connected when not in use |
| 4 | XR/SCL |
Res touch control pins, not connected when not in use |
| 5 | CTP-VDD |
CTP Power supply |
| 6 | VCI |
Power supply |
| 7 | NC |
No connection |
| 8 | LEDK |
LED cathode |
| 9 | NC |
No connection |
| 10 | LEDA |
LED anode |
| 11 | NC |
No connection |
|
12 |
SPI4W |
Standard SPI 3/4-wire Select. SPI4W="VCI", 4-wire SPI.SPI4W="GND", 3-wire SPI |
| 13 | NC |
No connection |
| 14 | IM1 |
Interface selection, set by IM [1 ～ 0] pins |
| 15 | NC |
No connection |
| 16 | IM0 |
Interface selection, set by IM [1 ～ 0] pins |
| 17 ～ 24 | DB[0 ～ 7] |
Parallel Interface Data Bus |
| 25 ～ 32 | DB[8 ～15] |
Parallel Interface Data Bus |
| 33 | RESX |
Global reset. Active low, Internal pull high |
|
34 |
WR |
Write enable in the MCU parallel interface Clock input in SPI interface, pull high internally |
|
35 |
SDA |
Serial communication data input and output, internal pull low. |
| 36 | CS |
Chip select, internal pull high |
|
37 |
RD |
Read the enable input in the MCU parallel interface and pull it high internally. |
|
38 |
D/CX |
Data or Command flag,Internal pull high. DCX = “VCI” is data；DCX = “GND” is command |
| 39 ～ 40 | GND |
Power supply ground |
CTP Pin Description
|
Pin NO. |
Symbol |
Description |
| 1 | RTN |
System reset |
| 2 | VDD |
Power supply |
| 3 | GND |
Power supply ground |
| 4 | INT |
Interrupt signal |
| 5 | SDA |
IIC data signal |
| 6 | SCL |
IIC clock signal |
