Product Details
Place of Origin: Dongguan, China
Brand Name: HOTHMI
Model Number: HTG12864-101
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Product Type: |
COG |
Show Contents: |
128x64 |
Outline Size(mm): |
48.0x36.0x3.8 |
Size Of View Window(mm): |
44.0x25.0 |
Display Size(mm): |
39.66x19.82 |
Point Spacing(mm): |
0.29x0.29 Mm |
Visual Angle: |
6H O'clock |
Connection PIN Number: |
FFC-28PIN |
Interface Mode: |
I2C/6bit |
Working Temperature: |
-20~70℃ |
Power Supply Voltage: |
3.0v |
Driver Chip Model: |
UC1601S |
Product Type: |
COG |
Show Contents: |
128x64 |
Outline Size(mm): |
48.0x36.0x3.8 |
Size Of View Window(mm): |
44.0x25.0 |
Display Size(mm): |
39.66x19.82 |
Point Spacing(mm): |
0.29x0.29 Mm |
Visual Angle: |
6H O'clock |
Connection PIN Number: |
FFC-28PIN |
Interface Mode: |
I2C/6bit |
Working Temperature: |
-20~70℃ |
Power Supply Voltage: |
3.0v |
Driver Chip Model: |
UC1601S |

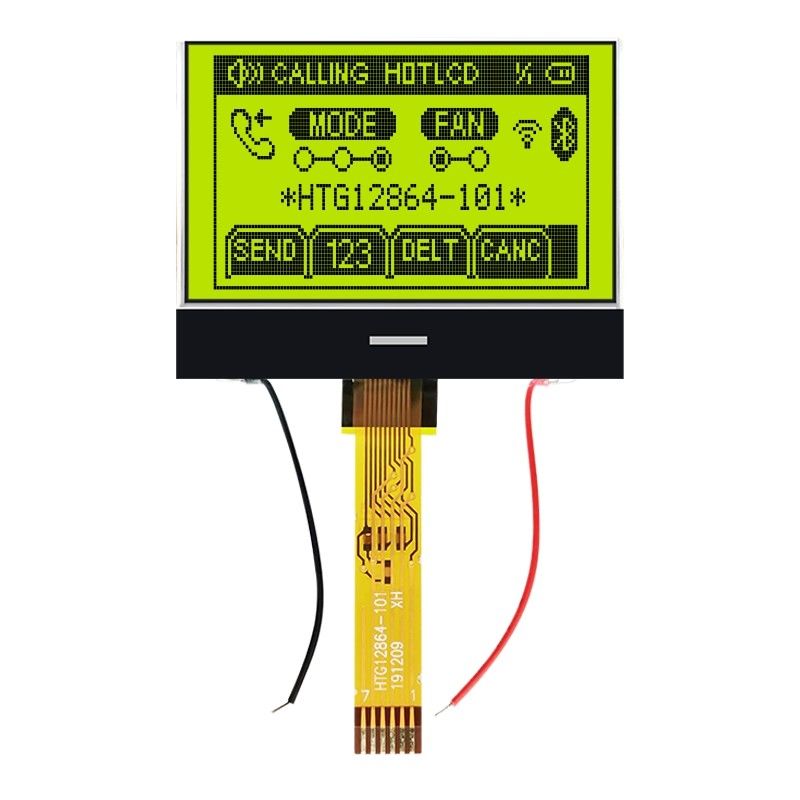

128X64 Graphic COG LCD UC1601S | FSTN Green Display With White Side Backlight/HTG12864-101
HOTLCD 128x64 graphic Chip-On-Glass (COG) Liquid Crystal Display shows blue pixels on a gray background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTG12864-101 display has an optimal view of 6:00, operates at 3V supply voltage and is RoHS compliant.
Product parameters
| ITEM | STANDARD VALUE | UNIT |
| Number of dots | 128x64 | dots |
| Module dimension | 48.0x36.0x3.8 | mm |
| View display area | 39.66x19.82 | mm |
| Dot size | 0.29x0.29 | mm |
| Dot pitch | 0.31x0.31 | mm |
| Operating temp | -20~70 | ℃ |
| Storage temp | -30~80 | ℃ |
| Driving Method | 1/ 128 DUTY,1/ 12 BIAS,VOP= 3.0V | |
| Viewing direction | 6 O’CLOCK | |
| Display mode | FSTN | |
| Display type | TRANSMISSIVE / NEGATIVE | |
| Driver IC | US1601S | |
| Backlight |
WHITE |
|
Electrical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage For Logic | VDD-VSS | － | 2.7 | 3.0 | 3.3 | V |
| Supply Voltage For LCM | VOP | Ta=-20℃ Ta=25℃ Ta=70℃ |
－ 9.15 － |
－ 9.45 － |
－ 9.75 － |
V V V |
| Input High Volt. | VIH | － | 0.7 VDD | － | VDD | V |
| Input Low Volt. | VIL | － | Vss | － | 0.3VDD | V |
| Output High Volt. | VOH | － | 0.8 VDD | － | VDD | V |
| Output Low Volt. | VOL | － | Vss | － | 0.2 VDD | V |
| Supply Current | IDD | VDD=3.0V | － | 0.45 | 0.9 | mA |
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.
Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.
Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.
Choose from a wide selection of changes including shape, size, pinout, and component layout of your PCB to make it a perfect fit for your application.
