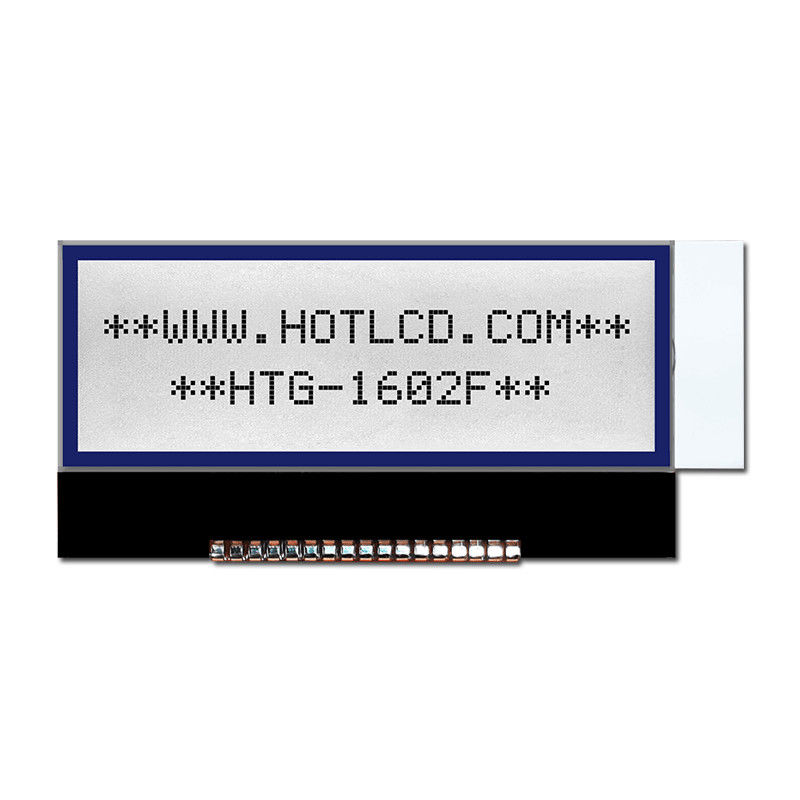

2X16 Character COG LCD | STN+ Gray Display With No Backlight | ST7032I/HTG1602F
This 16x2 character Chip-On-Glass (COG) LCD shows blue pixels on a gray background. This transflective STN
positive LCD is visible with ambient light or a backlight. The Liquid Crystal Display offers a wide operating temperature
range from -20 to 70 degrees Celsius. This HTG1602D display with built-in ST7032I controller has a 6:00 optimal view,
parallel interface, operates at 3.0V supply voltage and is RoHS compliant.
Product parameters
| ITEM | STANDARD VALUE | UNIT |
| Number of dots | 2X16 DOTS | ---- |
| Module dimension | 49.7x25.3x2.0 | mm |
| View display area | 45.7x18.3 | mm |
| Dot size | 0.55x0.41 | mm |
| Dot pitch | 0.59x0.45 | mm |
| Operating temp | -20~70 | ℃ |
| Storage temp | -30~80 | ℃ |
|
Driving Method |
1/ 128 DUTY,1/ 12 BIAS,VOP= 3.0V |
|
|
Viewing direction |
6 O’CLOCK |
|
|
Display mode |
STN |
|
|
Display type |
TRANSMISSIVE / NEGATIVE |
|
|
Driver IC |
ST7032I |
|
| Backlight | WHITE | |
Mechanical Data
| Item | Standard Value | Unit |
|---|---|---|
| Module Dimension | 49.7x25.3x2.0 | mm |
| Viewing Area | 45.7x18.3 | mm |
| Mounting Hole | 42.86x14.3 | mm |
| Dot Pitch | 0.55x0.41 | mm |
| Dot Size | 0.59x0.45 | mm |
Electrical Characteristics
| Item | Symbol | Standard Value typ. |
Unit |
|---|---|---|---|
| Input Voltage | VDD | 3.0v | V |
