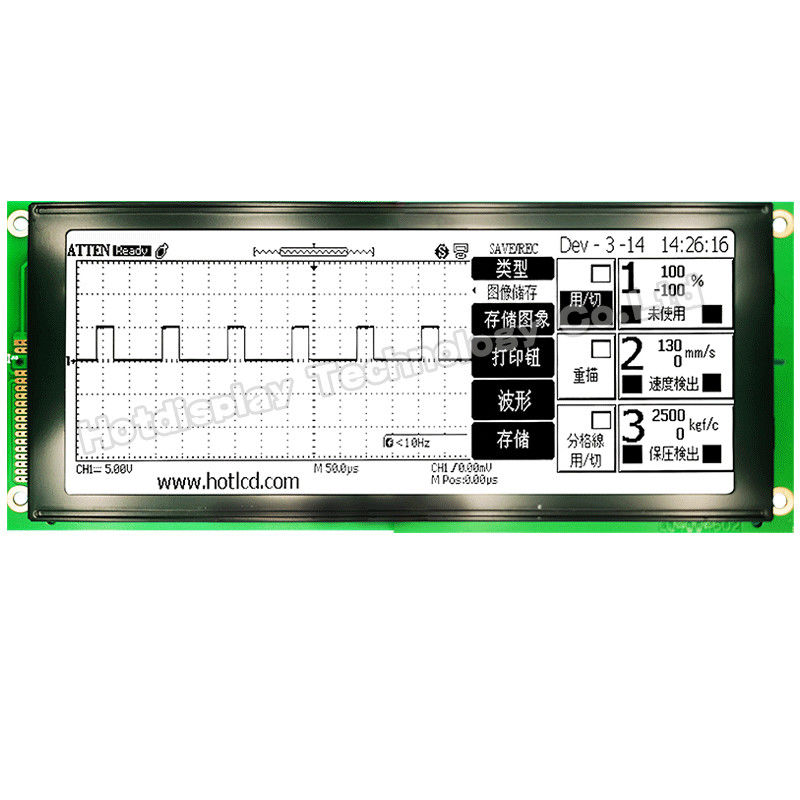

640x200 Graphic LCD Module | DFSTN With White Backlight /HTM640200
DESCRIPTION
HTM640200 is a mono 640x200 graphic LCD module which is having the module dimension of 260x110.7 mm and AA size of 211.17x79.17 mm. This graphic LCD display is built in with controller and with a straight single low pin header (17 pins, pin pitch 2.54mm) on module; it communicates via 6800/8080 8-bit parallel interface. This LCD module can be operating at temperatures from 0℃ to +50℃; its storage temperatures range from -20℃ to +70℃.
Product parameters
| ITEM | STANDARD VALUE | UNIT |
| Number of dots | 640X200 DOTS | ---- |
| Module dimension | 260x110.4x9.4 | mm |
| View display area | 211.17x79.17 | mm |
| Dot size | 0.366x0.3 | mm |
| Dot pitch | 0.396x0.33 | mm |
| Operating temp | 0~50 | ℃ |
| Storage temp | -20~70 | ℃ |
|
Driving Method |
1/ 128 DUTY,1/ 12 BIAS,VOP= 15.0V |
|
|
Viewing direction |
6 O’CLOCK |
|
|
Display mode |
DFSTN |
|
|
Display type |
TRANSMISSIVE / NEGATIVE |
|
|
Driver IC |
- |
|
| Backlight | WHITE | |
Mechanical Data
| Item | Standard Value | Unit |
|---|---|---|
| Module Dimension | 260x110.4x9.4 | mm |
| Viewing Area | 216.0x83.2 | mm |
| Mounting Hole | 211.17x79.17 | mm |
| Dot Pitch | 0.366x0.3 | mm |
| Dot Size | 0.396x0.33 | mm |
Electrical Characteristics
| Item | Symbol | Standard Value typ. |
Unit |
|---|---|---|---|
| Input Voltage | VDD | 5.0 | V |
