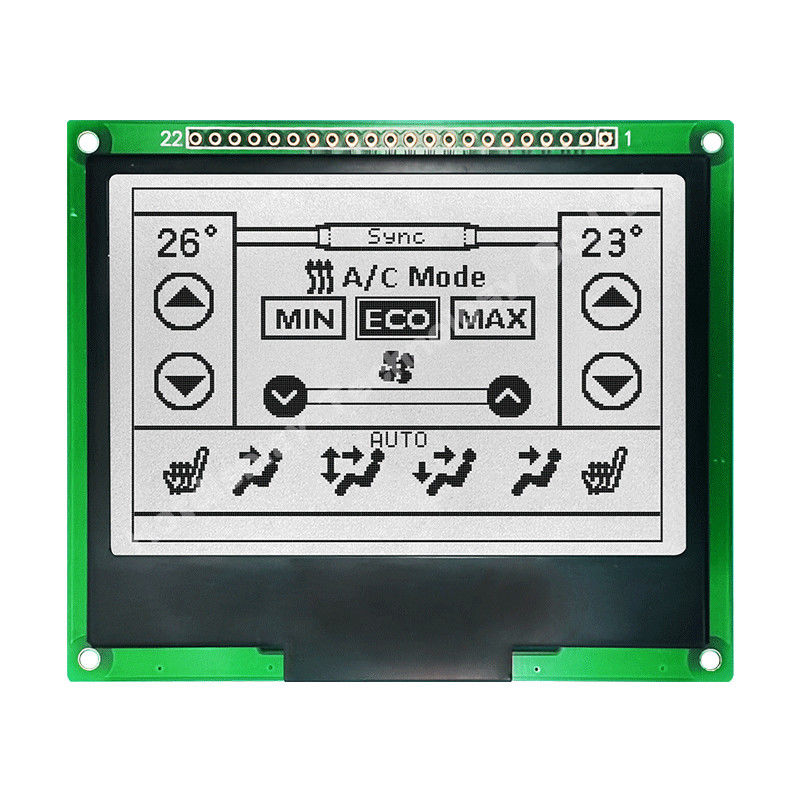

240X160 Graphic LCD Module | IC ST7529 FSTN With White Backlight /HTM240160F
Product parameters
| ITEM | STANDARD VALUE | UNIT |
| Number of dots | 240X160 DOTS | ---- |
| Module dimension | 87.0x73.0x10.0 | mm |
| View display area | 72.9x48.0 | mm |
| Dot size | 0.261x0.261 | mm |
| Dot pitch | 0.281x0.281 | mm |
| Operating temp | -10~60 | ℃ |
| Storage temp | -20~70 | ℃ |
|
Driving Method |
1/ 128 DUTY,1/ 12 BIAS,VOP= 15.0V |
|
|
Viewing direction |
6 O’CLOCK |
|
|
Display mode |
STN/ (gray) |
|
|
Display type |
TRANSMISSIVE / NEGATIVE |
|
|
Driver IC |
ST7529 |
|
| Backlight | WHITE | |
Mechanical Data
| Item | Standard Value | Unit |
|---|---|---|
| Module Dimension | 87.0x73.0x10.0 | mm |
| Viewing Area | 72.9x48.0 | mm |
| Mounting Hole | 67.42x44.94 | mm |
| Dot Pitch | 0.281x0.281 | mm |
| Dot Size | 0.32(W) x 0.30(H) | mm |
Electrical Characteristics
| Item | Symbol | Standard Value typ. |
Unit |
|---|---|---|---|
| Input Voltage | VDD | 3.3 | V |
Interface Pin Function
| 1 | VSS | Power Supply For Logic Circuit ,0V |
| 2 | VDD | Power Supply For Logic Circuit 3.3V |
| 3~10 | DB0~DB7 | 8-bit Date Bus |
| 11 | /WR | Write (/WR ) Control Signal Input. |
| 12 | A0(RS) | Data/Command Control. |
| 13 | /RD | Read (/RD )Control Signal Input. |
| 14 | /RST | Reset Signal |
| 15 | /CS | Chip Selection Input |
| 16 | NC(EN) | VLCD Power Enable(L:Disenable;H:Enable) |
| 17 | BLK(-) | Power Supply For Backlight Negative (0V) |
| 18 | BLA(+) | Power Supply For Backlight Positive (3.3V) |
| 19~22 | NC |
Absolute Maximum Ratings
| Items | Symbol | MIN. | MAX. | Unit | Condition |
| Supply Voltage | VDD | VSS | +3.3 | V | VSS = 0V |
| Input Voltage | VIN | VSS | VDD+0.3 | V | VSS = 0V |
| Operating Temperature | TOP | -10 | +60 | ℃ | No Condensation |
| Storage Temperature | Tst | -20 | +70 | ℃ | No Condensation |
DC Characteristics
| Items | Symbol | MIN. | TYP. | MAX. | Unit | Condition |
| Operating Voltage | VDD | 2.4 | - | 3.3 | V | VDD |
| Input High Voltage | VIH | 0.7 x VDD | - | VDD | V | /CS1,/RES,A0,/WR, E,D0~D7 |
| Input Low Voltage | VIL | VSS | - | 0.3 x VDD | V | |
| Output High Voltage | VOH | 0.7 x VDD | - | VDD | V | D0~D7 |
| Output Low Voltage | VOL | VSS | - | 0.3 x VDD | V | D0~D7 |
|
Operation Current |
Iop |
460 |
- |
- |
μA |
EN=VDD V0 – VSS = 16.0 V |
| Sleep Current | Isl | - | - | 20 | μA | EN=0 ,Power Down |
LED Backlight Circuit (if need BLK)
| Items | Symbol | MIN. | TYP. | MAX. | Unit | Condition |
| Forword Voltage | Vf BLA | - | 3.3 | - | V | VDD |
| Forword Current | If BLA | - | 60 | 120 | mA | VDD |
