Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: HTM12864D
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Product Type: |
Standard COB LCD Module |
Display Content: |
128x64 |
Product Application: |
Instrumentation |
Viewing Angle: |
6H |
Number Of PINS: |
20PIN |
Special Instructions: |
SPI |
Driver Chip Model: |
KS0108 |
Product Type: |
Standard COB LCD Module |
Display Content: |
128x64 |
Product Application: |
Instrumentation |
Viewing Angle: |
6H |
Number Of PINS: |
20PIN |
Special Instructions: |
SPI |
Driver Chip Model: |
KS0108 |

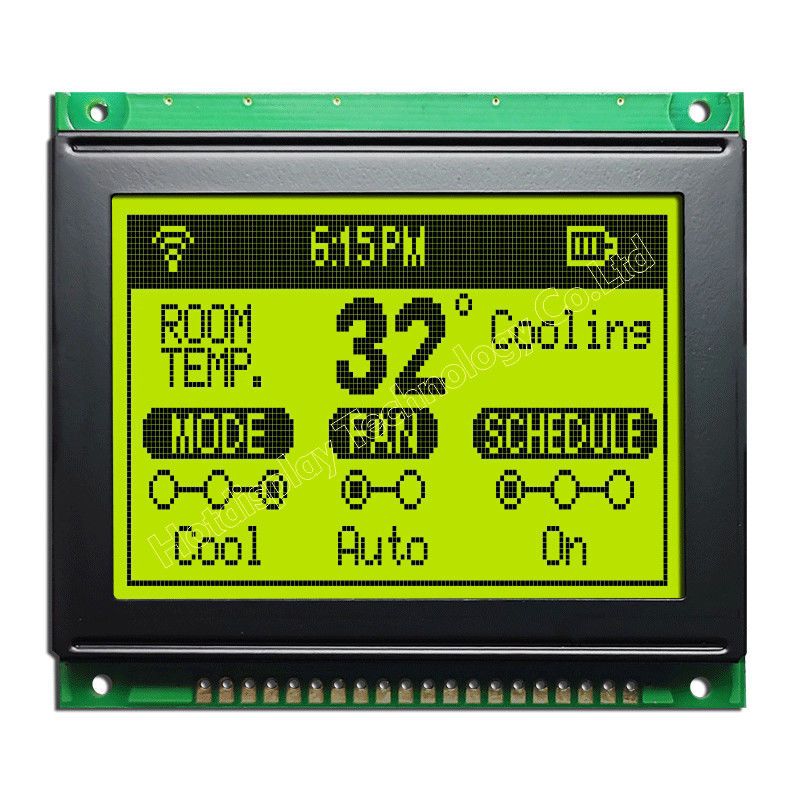

128X64 Graphic LCD Module | KS0108 | Display With White Backlight | HTM12864D
DESCRIPTION
HTM12864D is a128x64 LCD display module which is having the same mechanical size as HTM12864D.HTM12864D model is built in with KS0108; it communicates via 8080 8-bit parallel interface and negative voltage built in on module. HTM12864D is available in various LED colors including yellow/green, blue, white, red, etc. This 128 x 64 LCD module can be operating at temperatures from 0℃ to +50℃; its storage temperatures range from 0℃ to +60℃.
Product parameters
Product Application - Instrumentation
Viewing Angle - 6H
Backlight Brightness - White
Connection method PIN number - 20PIN
Interface mode - 8080/8bit
Working temperature - 0~50℃
Supply voltage - 5.0v
Driver chip model - KS0108
Mechanical Data
| Item | Standard Value | Unit |
|---|---|---|
| Module Dimension | 78.0x70.0x12.5 | mm |
| Viewing Area | 62.0x44.0 | mm |
| Mounting Hole | 56.28x38.36 | mm |
| Dot Pitch | 0.60x0.44 | mm |
| Dot Size | 0.56x0.4 | mm |
| Item | Symbol | Standard Value typ. |
Unit |
|---|---|---|---|
| Input Voltage | VDD | 5.0 | V |
Interface Pin Function
| Pin No. | Pin Name | Function |
| 1 | /CS1 | Chip selection input 1 |
| 2 | /CS2 | Chip selection input 2 |
| 3 | VSS | LCD Negtive(VSS) |
| 4 | VDD | LCD Positive(5.0V) |
| 5 | V0 | LCD Adjust |
| 6 | RS | H:Data; L: Instruction |
| 7~14 | R/W | H:Read ; L: Write. |
| 15 | E | Enable signal. |
| 16 | D0~D7 | Data Buss |
| 17 | REST | Reset Signal input |
| 18 | VEE | About( -12)V |
| 19 | BLA | Bcaklight Positive(5.0V) |
| 20 | BLK | Bcaklight Negtive(VSS) |
