4.3 inch 800x480 TFT LCD Display Module With RGB Interface

Product Details

Place of Origin: dongguan,China

Brand Name: HOTHMI

Model Number: TFT-H043A10SVIST6N40

Payment & Shipping Terms

Minimum Order Quantity: 2

Delivery Time: 25 days

Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability: 99999

Get Best Price
Product Details
Highlight:

Sunlight Readable 4.3 Inch TFT LCD

,

800x480 4.3 Inch TFT LCD

,

ST7262 4.3 Inch TFT LCD Display

Product Type:
TFT Landscape
Display Content:
800X480
Dimensions (mm):
105.5X67.2X4.55
Viewport Window Size:
4.3"
Product Application:
Industrial Control Equipment, Vehicle Instrumentation, Ultra-wide Temperature Display
Driver IC Model:
ST7262
Product Type:
TFT Landscape
Display Content:
800X480
Dimensions (mm):
105.5X67.2X4.55
Viewport Window Size:
4.3"
Product Application:
Industrial Control Equipment, Vehicle Instrumentation, Ultra-wide Temperature Display
Driver IC Model:
ST7262
Product Description

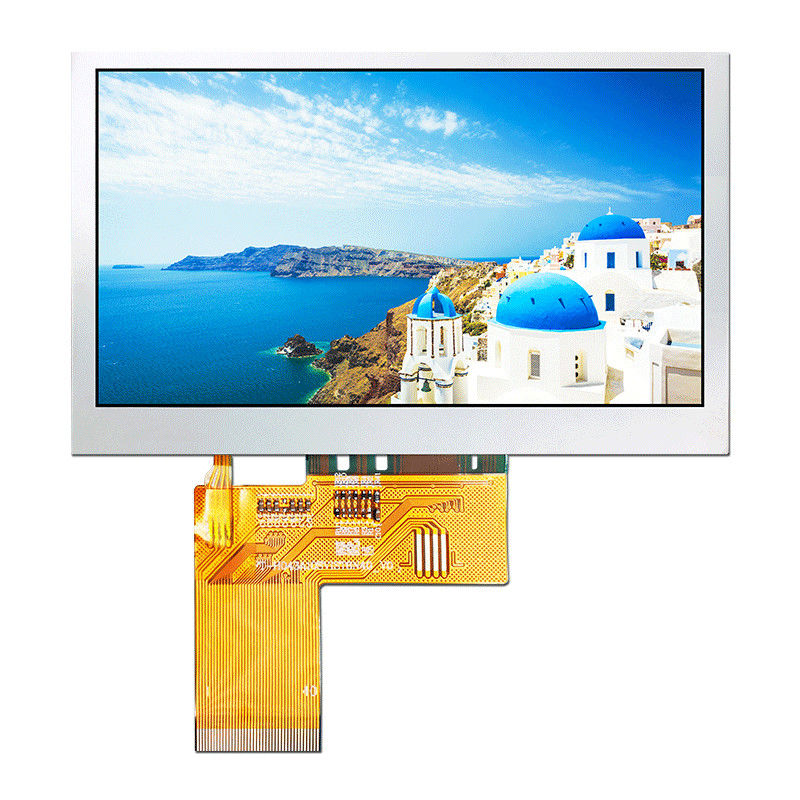

4.3 Inch Sunlight Readable TFT Without Touchscreen/800x480 Pixels/TFT-H043A10SVIST6N40



Product parameters


Display Size - 4.3"
Effective Size (mm) - 95.04X53.85
Perspective - Full Perspective
Backlight brightness - 600~1000cd/m2
Connection method PIN number - 40PIN
Interface - TTL18bit/24bit
Working temperature - (-40~80℃)
Supply Voltage - 3.3V


General Feature:



Item

Standard Value

Unit

Display Size 4.3 Inch
Number of Pixels 800(H)*3(RGB)* 480(V) dots
Active Area 95.04(H)* 53.86(V) mm
Outline Dimension

105.50(H) * 67.15(V) * 3.05(D) <TFT>

mm
Viewing Direction FULL O'clock -
TFT Interface 24-bit TTL -
TFT Driver IC ST7262 -

TFT Driver Condition

VCI=3.3V(Typ) V
Backlight

White LED/10 PCS/5 PCS serial 2 ways parallel

-
Touch Panel Without TP With RTP With CTP -
CTP Driver IC GT911 -
CTP Driver Condition VDD=3.3V(Typ)  V
Operation Temperature -40 ~ 80

Storage Temperature -40 ~ 80



TFT Pin Description



Pin NO. Symbol Description
1 LEDK LED Cathode
2 LEDA LED Anode
3 GND Ground
4 VCI Digital Power
5~12 DR0~7 Red data bus.If not used, please fix this pin at GND.
13~20 DG0~7 Green data bus.DG[7:0] are used in 8-bit RGB interface.
21~28 DB0~7 Blue data bus.If not used, please fix this pin at GND.
29 GND Ground
30 PCLK Pixel clock input pin, default is negative polarity.



31



DISP

Display mode sets DISP=GND:Standby mode; DISP=VCI:Normal display mode
32 HSD Horizontal sync signal, default is negative polarity.
33 VSD Vertical sync signal, default is negative polarity.
34 DEN Data input enable. Display access is enabled when DE is “H”.
35 NC Not Connect
36 GND Ground
37 RTP_XR RTP function pin.If not used, let this pin open.
38 RTP_YD RTP function pin.If not used, let this pin open.
39 RTP_XL RTP function pin.If not used, let this pin open.
40 RTP_YU RTP function pin.If not used, let this pin open.
