Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H035A6QVIST9N40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Product Type: |
TFT Landscape |
Display Content: |
320x240 |
Dimensions (mm): |
76.84x63.84x3.4 |
Display Size: |
3.5" |
Viewport Window Size: |
3.5" |
Effective Size (mm): |
70.08x52.56 |
Product Type: |
TFT Landscape |
Display Content: |
320x240 |
Dimensions (mm): |
76.84x63.84x3.4 |
Display Size: |
3.5" |
Viewport Window Size: |
3.5" |
Effective Size (mm): |
70.08x52.56 |

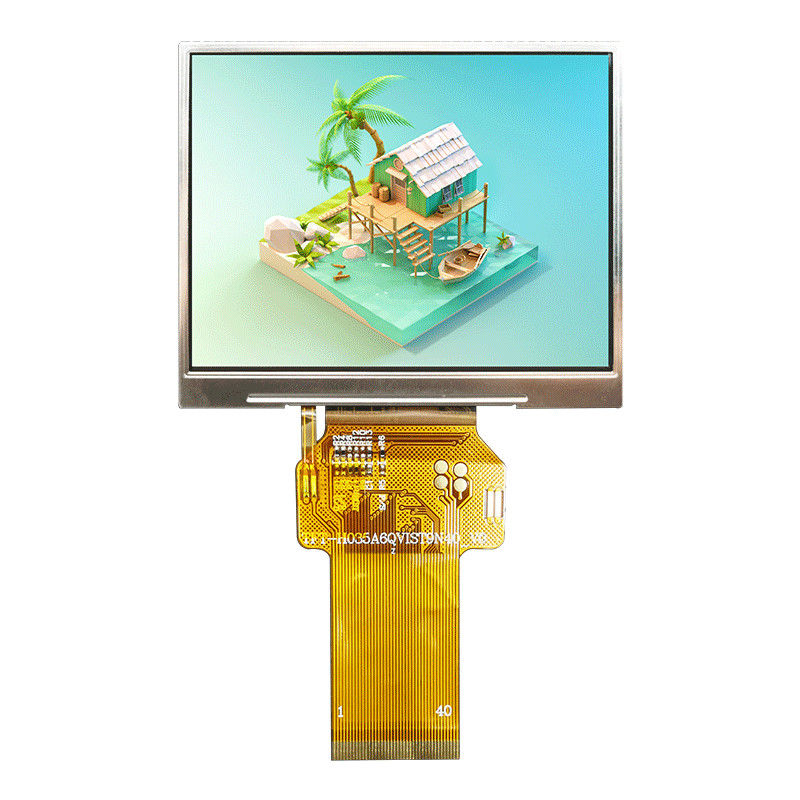

3.5 Inch TFT LCD Modules/320 X 240 Dots/Sunlight Readable/TFT-H035A6QVIST9N40
Product parameters
Product Application - Instrumentation
Perspective - Full Perspective
Backlight brightness - 900cd/m2
Connection method PIN number - FPC-40PIN
Interface - RGB
Special Instructions - 8/24-bit TTL
Working temperature - 20~70℃
Supply Voltage - 3.3V
Driver IC Model - ST7272A
General Feature:
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H035A6QVIST9N40 | |
| Diagonal size | 3.5” | Inch |
| Resolution | 320x240 | Dot |
| Dimensions | 76.84X63.84X3.35 | mm |
| Active area (AA) | 70.08X52.56 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | Full View(U80/D80/R80/L80) | |
| Aspect ratio | 3:2 | |
| Backlight type | LED white | |
| TFT driver IC | ST7272 | |
| Brightness | 900 | cd/m2 |
| Operating temperature | -30~80℃ | ℃ |
| Storage temperature | -40~85℃ | ℃ |
