Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: HTM-H035A31-SPI-V04
Payment & Shipping Terms
Product Type: |
3.5-inch TFT LCD Module |
Display Content: |
320x480 |
Dimensions (mm): |
57.2x95.8x4.2 |
Viewport Window Size: |
3.5" |
Effective Size (mm): |
48.96x73.44 |
Product Application: |
Instrumentation |
Product Type: |
3.5-inch TFT LCD Module |
Display Content: |
320x480 |
Dimensions (mm): |
57.2x95.8x4.2 |
Viewport Window Size: |
3.5" |
Effective Size (mm): |
48.96x73.44 |
Product Application: |
Instrumentation |

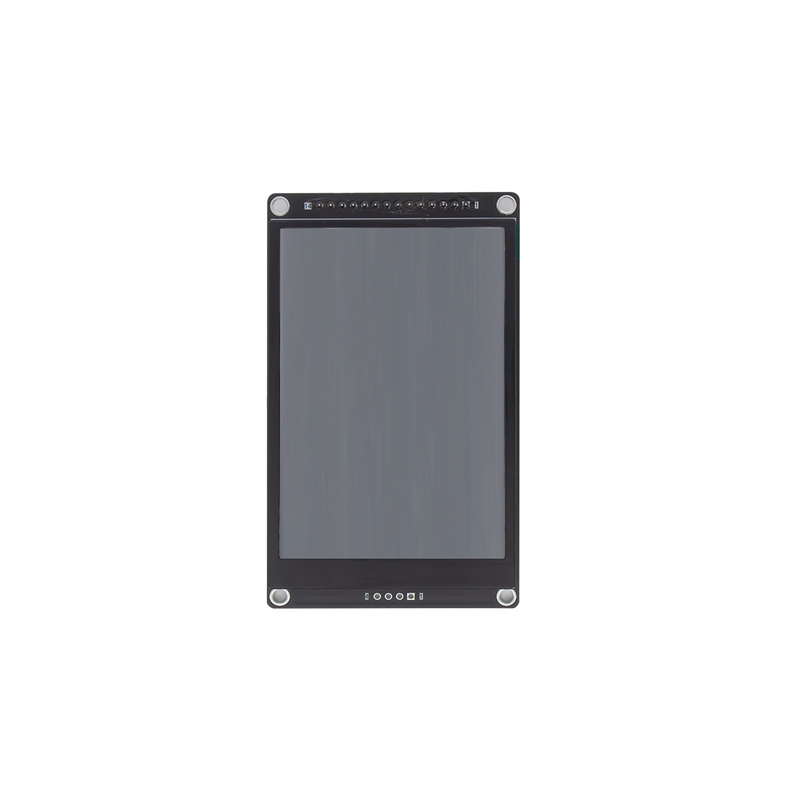

HOTDISPLAY introduces a high-performance 3.5-inch SPI TFT LCD Display with a sharp resolution of 320x480 pixels. This compact SPI TFT LCD Display, features an IPS panel for wide viewing angles and a high brightness of 400cd/m² for excellent readability.
Driven by the ILI9488 controller and operating at 3.3V, this robust SPI TFT LCD Display is designed for easy integration with popular platforms like Arduino, STM32, and C8051. Its industrial-grade credentials are confirmed by an 8kV ESD protection and an operating temperature range of -20°C to 70°C. This reliable SPI TFT LCD Display is ideal for a wide range of applications requiring a durable and clear interface.
For your next project, choose this versatile SPI TFT LCD Display for a perfect blend of quality and performance.
General Feature:
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | HTM-H035A31- SPI-V04 | |
| Diagonal size | 3.5” | Inch |
| Resolution | 320x480 | Dot |
| Dimensions | 57.2x95.8x4.2 | mm |
| Active area (AA) | 48.96x73.44 | mm |
| LCD type | 3.5” TFT Module | mm |
| Display viewing angle | Full View | |
| Aspect ratio | 2:3 | |
| Backlight type | LED white | |
| TFT driver IC | ILI9488 | |
| Brightness | 400cd/m2 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ | ℃ |
