Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H080A1SVTHX3N50
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Format: |
800x600 Pixels |
Outline L X W X H: |
182.9x121.5x7.0mm |
Active Area L X W: |
162.00x121.5mm |
Luminance: |
300cd/m2 |
Interface:=: |
TTL 18/24 Bit - |
Controller Type: |
HX8264+HX8696 |
Operating Temperature: |
-20°C ~ 70°C |
Display Format: |
800x600 Pixels |
Outline L X W X H: |
182.9x121.5x7.0mm |
Active Area L X W: |
162.00x121.5mm |
Luminance: |
300cd/m2 |
Interface:=: |
TTL 18/24 Bit - |
Controller Type: |
HX8264+HX8696 |
Operating Temperature: |
-20°C ~ 70°C |

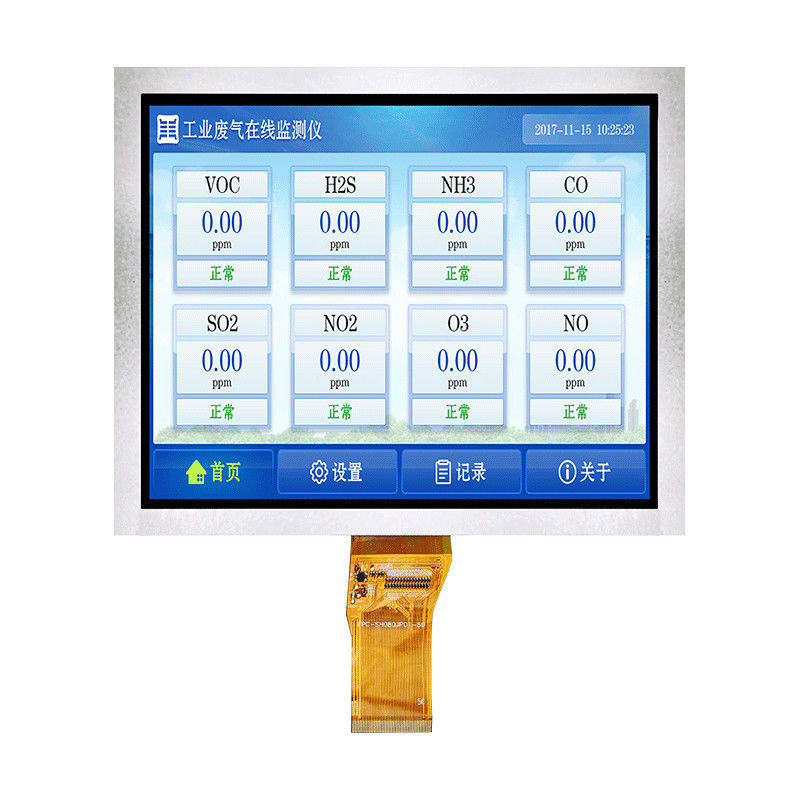

8.0 Inch 800x600 LCD Module Display Industrial Monitor TFT LCD Display Manufacturer
TFT-H080A1SVTHX3N50 | 8.0" IPS LCD | 800x600 Pixels | Industrial Monitor | TFT LCD Display Manufacturer | -20°C ~ 70°C | IC HX8264+HX8696
Introducing our 8.0 inch IPS LCD module display, model TFT-H080A1SVTHX3N50 - the perfect industrial monitor for your needs. With a resolution of 800x600 pixels, this display delivers crisp and clear images with accurate colors, making it ideal for industrial applications that require precision and clarity.
This high-quality TFT LCD display is manufactured using the latest technology to ensure durability and reliability. It has an operating temperature range of -20°C to 70°C, which makes it suitable for use in harsh environments with extreme temperatures. Whether you need a display for a factory, warehouse, or outdoor environment, this product is built to withstand the toughest conditions.
The TFT-H080A1SVTHX3N50 is powered by the IC HX8264+HX8696, which provides excellent image quality and fast response times. This technology ensures that your display will be responsive and reliable, no matter what application you use it for.
As a leading TFT LCD display manufacturer, we take pride in delivering top-quality products that meet the needs of our customers. Whether you need a single display or a large-scale deployment, we are here to help. So if you're looking for a high-quality industrial monitor with an 8.0 inch IPS LCD, look no further than our TFT-H080A1SVTHX3N50 display.
General information
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H080A1SVTHX3R50 | |
| Diagonal size | 8.0” | Inch |
| Resolution | 800x600 | Dot |
| Dimensions | 182.9X141.0X7.0 | mm |
| Active area (AA) | 162.0X121.5 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | 12 O'CLOCK(U70/D75/L75/R75) | |
| Aspect ratio | 1:1.6 | |
| Backlight type | LED white | |
| TFT driver IC | HX8264+HX8696 | |
| Brightness | 300 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ | ℃ |
Search keyword: tft 8.0, tft 8.0", 8.0 tft lcd, 8.0" tft lcd, 8.0 inch tft lcd, tft lcd 8.0, 8.0 tft display, 8.0" tft display,8.0 inch tft display, tft display 8.0, tft display 8.0"
TFT Custom Solutions
Cable Customization
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.
Touchscreen Add-on
Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.
Interface Customization
Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.
Cover Glass
Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
