Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H089A1WXIFT5N40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Format: |
800x1280 Pixels |
Outline L X W X H: |
125.38x202.84x2.55mm |
Active Area L X W: |
119.28x190.85mm |
Luminance: |
500cd/m2 |
Interface:=: |
MIPI-4L |
Controller Type: |
JD9365D |
Operating Temperature: |
-20°C ~ 70°C |
Display Format: |
800x1280 Pixels |
Outline L X W X H: |
125.38x202.84x2.55mm |
Active Area L X W: |
119.28x190.85mm |
Luminance: |
500cd/m2 |
Interface:=: |
MIPI-4L |
Controller Type: |
JD9365D |
Operating Temperature: |
-20°C ~ 70°C |

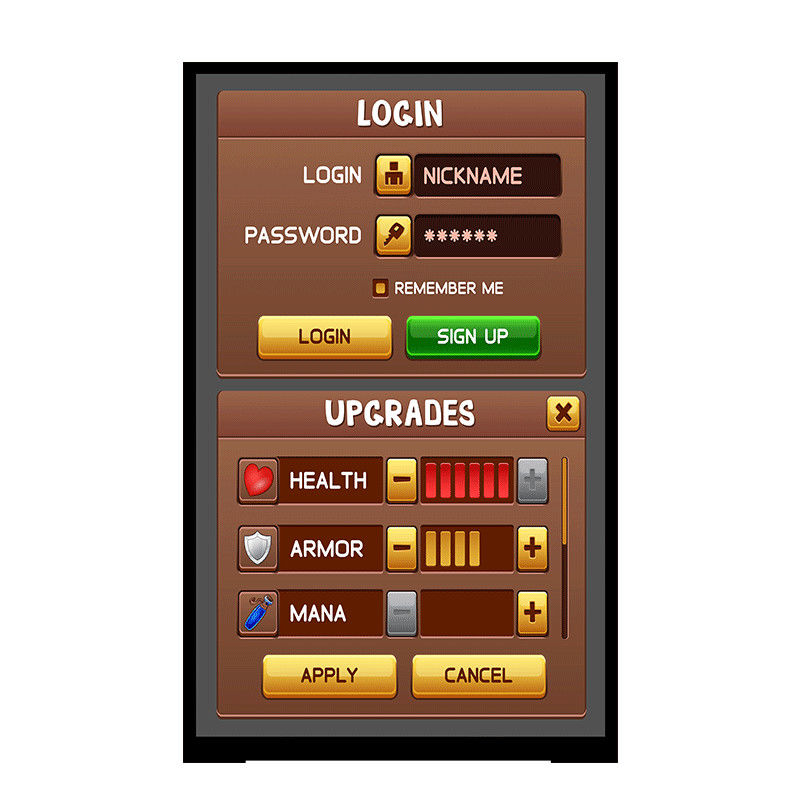

8.9 Inch 800x1280 LCD Module IPS Display Industrial Monitor TFT LCD Display Manufacturer
TFT-H089A1WXIFT5N40 | 8.9" IPS LCD | 800x1280 Pixels | Industrial Monitor | TFT LCD Display Manufacturer | -20°C ~ 70°C | IC JD9365D
This 8.9 inch TFT LCD display has a 800x1280 resolution screen with IPS technology, which delivers sunlight readable brightness, better color reproduction, better image consistency, and better optical characteristics at any angle.This 8.9" display is RoHS compliant with MIPI interface, and does not include a touchscreen.
General information
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H070A21ZBINV6N40 | |
| Diagonal size | 8.9” | Inch |
| Resolution | 800X1280 | Dot |
| Dimensions | 125.38*202.84*2.55 | mm |
| Active area (AA) | 119.28*190.85 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | Full View | |
| Aspect ratio | 1:1.5 | |
| Backlight type | LED white | |
| TFT driver IC | JD9365D | |
| Brightness | 500cd/m2 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ |
℃ |
Search keyword: tft 8.9, tft 8.9", 8.9 tft lcd, 8.9" tft lcd, 8.9 inch tft lcd, tft lcd 8.9, 8.9 tft display, 8.9" tft display,8.9 inch tft display, tft display 8.9, tft display 8.9"
TFT Custom Solutions
Cable Customization
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.
Touchscreen Add-on
Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.
Interface Customization
Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.
Cover Glass
Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
