Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: LCM-TFT080T61SXGDVNSDC
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Product Type: |
TFT HI Moudle |
Display Content: |
1024x768 Dots |
Dimensions (mm): |
203x161x21.8 |
Viewport Window Size: |
8.0 Inch |
Product Application: |
Instrumentation, Smart Home |
Effective Size (mm): |
162.05x121.54 |
Product Type: |
TFT HI Moudle |
Display Content: |
1024x768 Dots |
Dimensions (mm): |
203x161x21.8 |
Viewport Window Size: |
8.0 Inch |
Product Application: |
Instrumentation, Smart Home |
Effective Size (mm): |
162.05x121.54 |

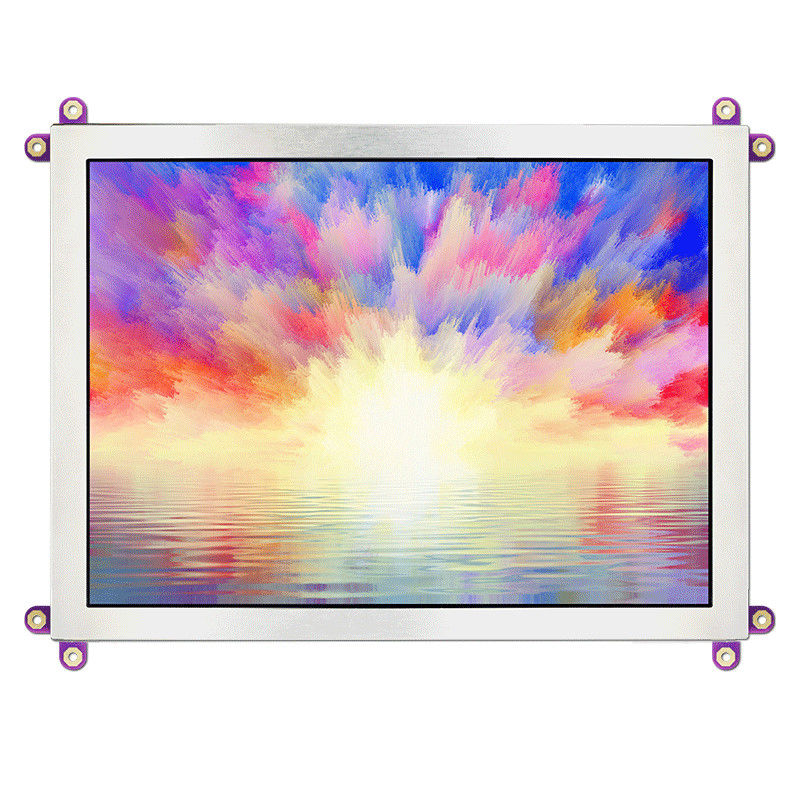

8.0 Inch 1024x786 Dots For HI Signal TFT Display Module/LCM-TFT080T61SXGDVNSDC
Product parameters
Display Size - 8.0 inch
Viewing Angle - 12H Viewing Angle
Backlight type or brightness - 300cd/m2
Connection method PIN number - FPC-46PIN
Interface - HI, VGA interface
Working temperature - -20~70℃
Supply Voltage - 9~24V
Product introduction
- 8.0 inch standard display, 1024×768(XGA) resolution
- 300 cd/m² brightness, 30,000 hours long-life backlight. There is a need to customize 500 ～ 1000 higher brightness, or 50000 hours longer life backlight
- Support OSD control buttons to help users adjust the LCD screen to the best state for different application environments,OSD menu can be switched in Chinese and English.
- Support VGA and HI 1.4a signal input (choose one when using, cannot
identify at the same time)
- Supports multi-point USB interface drive-free capacitive touch screen
- Support panel embedded installation, only need4 screws to fix the PCB,
easy installation and maintenance
- Compatible with mainstream operating systems and embedded operating systems such as DOS/Windows98/2000/XP/win7/win8/win10/Embedded/Linux.
|
Item |
Standard Value |
Unit | |
|
Interface |
HI 1.4a / VGA | - | |
|
Power Input |
DC 9 ～ 24V/1A 以上DC 9 to 24V/1A or more | - | |
|
Module brightness |
Without TP |
300 |
cd/m2 |
|
With CTP |
250 | ||
|
Product weight |
Without TP |
310 + 3% |
g |
|
With CTP |
403 + 3% | ||
LCD parameters
|
Item |
Standard Value |
Unit |
|
Display Size |
8.0 inch |
Inch |
|
Number of Pixels |
1024(H)*3(RGB)* 768(V) |
dots |
|
Active Area |
162.05(H)* 121.54(V) |
mm |
|
Outline Dimension |
203.00(H) * 161.00(V) * 21.80(D) <Without TP> |
mm |
|
Contrast Ratio |
Type 500:1 | - |
|
Response Time |
Type 20(Tr + Tf) |
msec |
|
Viewing Direction |
12 O'clock(U70/D75/L75/R75) |
- |
|
Maximum color |
16.7 M |
Color |
|
USB Touch Pane |
Without TP | - |
|
Operation Temperature |
-20 ～ 70 |
℃ |
|
Storage Temperature |
-30 ～ 80 |
℃ |
