Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-050T61SVHDVUSDC
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Product Type: |
TFT LCM |
Backlight Type Or Brightness: |
500cd/m2 |
Interface: |
HI, VGA |
Special Instructions: |
Optional Drive-free USB Touch Screen |
Working Temperature: |
-30~80℃ |
Supply Voltage: |
5.0V |
Product Type: |
TFT LCM |
Backlight Type Or Brightness: |
500cd/m2 |
Interface: |
HI, VGA |
Special Instructions: |
Optional Drive-free USB Touch Screen |
Working Temperature: |
-30~80℃ |
Supply Voltage: |
5.0V |

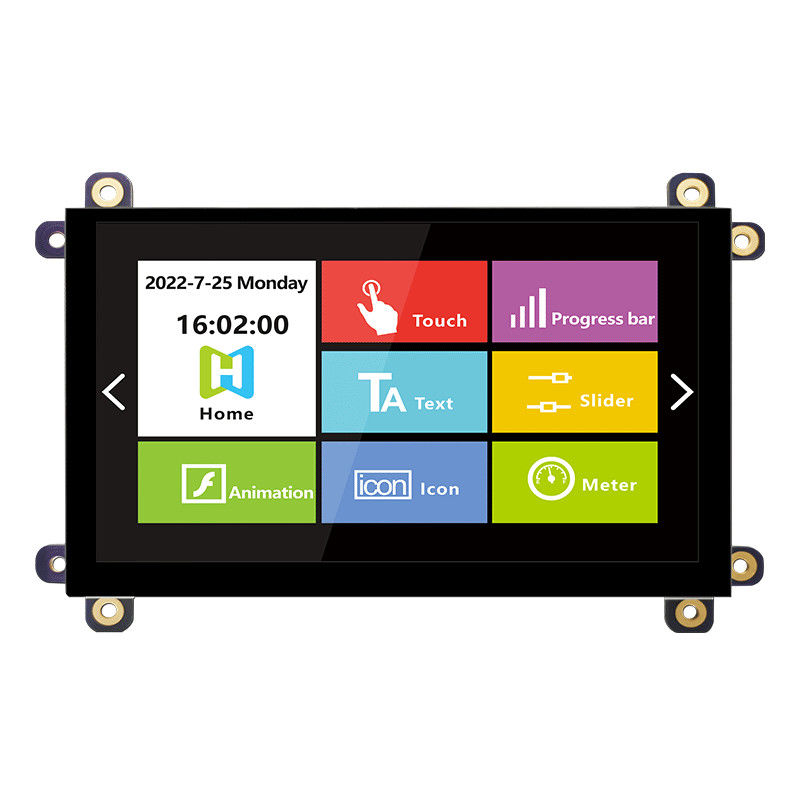

5 Inch For HI Signal Touchscreen IPS TFT Display/800x480 Pixels/TFT-050T61SVHDVUSDC
Product parameters
Display content - 800x480 dots
Dimensions (mm) - 140.0x95.0x15.0
Viewport Window Size - 5.0 inch
Display Size - 5.0 inch
Effective size (mm) - 108.0x64.8
Product Application - Industrial Display
Perspective - Full View
Module parameters
| Item | Standard Value | Unit | |
| Interface | HI 1.4a / VGA | - | |
| Power Input | DC 5V/1A 以上 | - | |
|
Module brightness |
cd/m2 |
||
| With CTP | 500 | ||
| Product weight | g | ||
| With CTP | 148 + 5% | ||
LCD parameters
| Item | Standard Value | Unit |
| Display Size | 5.0 | Inch |
| Number of Pixels | 800(H)*3(RGB)* 480(V) | dots |
| Active Area | 95.04(H)* 53.86(V) | mm |
| Outline Dimension |
140.00(H) * 95.00(V) * 23.20(D) <With CTP> |
mm |
| Contrast Ratio | 1000:1 | - |
| Response Time | 30 (Tr + Tf) | msec |
| Viewing Direction | Full O'clock | - |
| Maximum color | 16.7 M | Color |
| USB Touch Panel | With CTP | - |
| Operation Temperature | -20 ～ 70 | ℃ |
| Storage Temperature | -30 ～ 80 | ℃ |
Product Description
In order to facilitate the use of customers, Xinhongtai has recently launched a 5.0-inch LCD module, with 800×480 high-definition resolution, 500 cd/m² high brightness, 30,000 hours long-life backlight, support for backlight on/off independent control, support for VGA And HI 1.4a signal input, support multi-point USB interface, drive-free capacitive touch screen plug and play, and support panel embedded installation, only 4 screws to fix the PCB to complete, installation and maintenance is very simple, compatible with DOS/Windows98/2000 /XP/win7/win8/win10/Embedded/Linux and other mainstream operating systems and embedded operating systems.
