Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H070B13HDIIL4C40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Format: |
800x1280 |
Outline: |
108.65x167.85x4.76 |
Active Area: |
94.2x150.72 |
Luminance: |
450cd/m2 |
Interface: |
MIPI |
Controller Type: |
ILI9881C |
Operating Temperature: |
-20°C~60°C |
Display Format: |
800x1280 |
Outline: |
108.65x167.85x4.76 |
Active Area: |
94.2x150.72 |
Luminance: |
450cd/m2 |
Interface: |
MIPI |
Controller Type: |
ILI9881C |
Operating Temperature: |
-20°C~60°C |

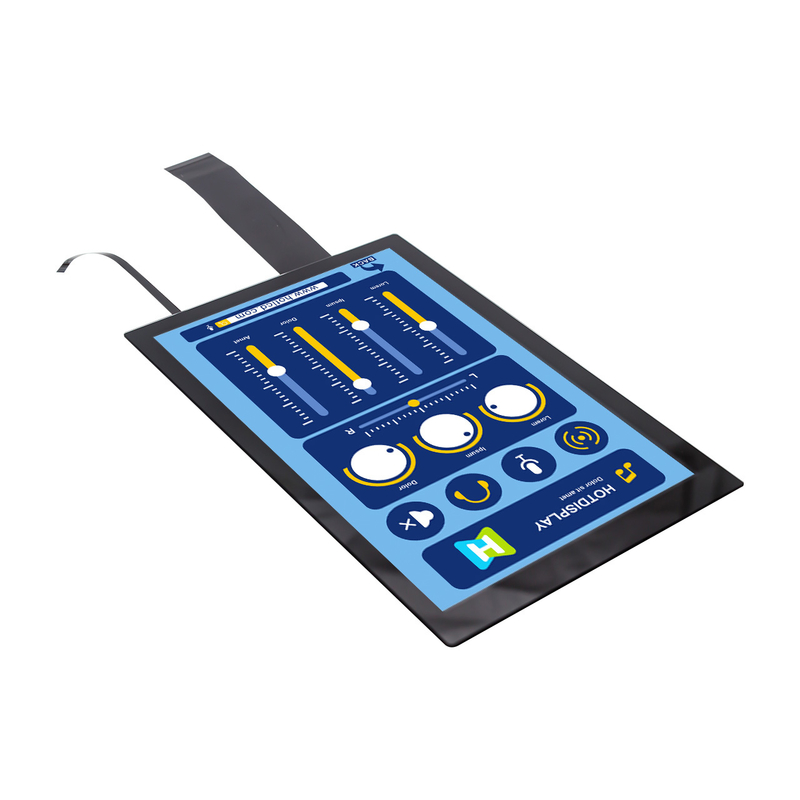

The TFT-H070B13 series LCD modules deliver a stunning 800×1280 pixel HD resolution. The 7-inch active display area is like a transparent window. Combined with IPS technology for a wide viewing angle and moderate brightness, they deliver high-quality images. Whether used for production line monitoring or outdoor equipment, images remain stable and clear, eliminating grayscale and color casts.
Feel free to touch with a light touch. The 6H hardness glass panel, powered by the GT911 capacitive touch chip, boasts over 80% light transmittance, ensuring precise, lag-free touch, even in humid environments and when operated with gloves. A typical brightness of 450 cd/m² penetrates strong light interference, and the NTSC 50% color gamut restores true colors, making parameter charts and fault alarms vivid and eye-catching.Under exquisite craftsmanship, they offer composure in harsh environments. The module's slim design fits into compact spaces, and the MIPI 4-lane interface ensures rock-solid data transmission. A hardware reset protection mechanism eliminates the risk of data corruption even in the event of a power outage.
From medical devices to in-vehicle central control systems, from industrial HMIs to smart terminals, the TFT-H070B13 uses light and shadow as its language and touch as its bridge, condensing reliable performance and sensory experience into a compact form factor, bringing tangible vitality to smart devices.
We also offer a non-touch version, the TFT-H070B13HDIIL5N40. We're not limited to these 7.0-inch TFTs; we also offer a 7.0-inch bar-shaped TFT LCD, the TFT-H070A21ZBINV6N40, and an ultra-bright, sunlight-readable 7-inch TFT LCD, the TFT-H070B26WSIJDKC40. For users lacking development capabilities, we also offer a simple and easy-to-use 7-inch smart display module.
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H070B13HDIIL4C40 | |
| Diagonal size | 7.0” | Inch |
| Resolution | 800x1280 | Dot |
| Dimensions | 108.65x167.85x4.76 | mm |
| Active area (AA) | 94.2x150.72 | mm |
| LCD type | 7.0” TFT Module | mm |
| Display viewing angle | Full View | |
| Aspect ratio | 2:3 | |
| Backlight type | LED white | |
| TFT driver IC | ILI9881C | |
| Brightness | 450cd/m2 | cd/m2 |
| Operating temperature | -20~60℃ | ℃ |
| Storage temperature | -30~70℃ | ℃ |
