Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H050A1SVIST6N40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
800x480 |
Dimensions (mm): |
120.7x75.8x3.0 |
Field Of View Window Size: |
Full Viewing Angle (U80/D80/R80/L80) |
Backlight Brightness: |
600cd/m2 |
Driver Chip: |
ST7262 |
Interface: |
RGB |
Operating Temperature:: |
-30~80℃ |
Display Content: |
800x480 |
Dimensions (mm): |
120.7x75.8x3.0 |
Field Of View Window Size: |
Full Viewing Angle (U80/D80/R80/L80) |
Backlight Brightness: |
600cd/m2 |
Driver Chip: |
ST7262 |
Interface: |
RGB |
Operating Temperature:: |
-30~80℃ |
If you need to purchase please contact https://www.display-lcd.com/
▶ Model: TFT-H050A1SVIST6N40
▶ Type: TFT standard display
▶ Display pixels: 800x480
▶ Display inches: 120.7x75.8x3.0
▶ AA size (mm): 108.0x64.8
▶ Application: Instruments, portable electronic devices
▶ Viewing angle: full viewing angle (U80/D80/R80/L80)
▶ Backlight/brightness: 600cd/m2
▶ Pin: FPC-40 pin
▶ Interface mode: RGB
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -30~80℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7262

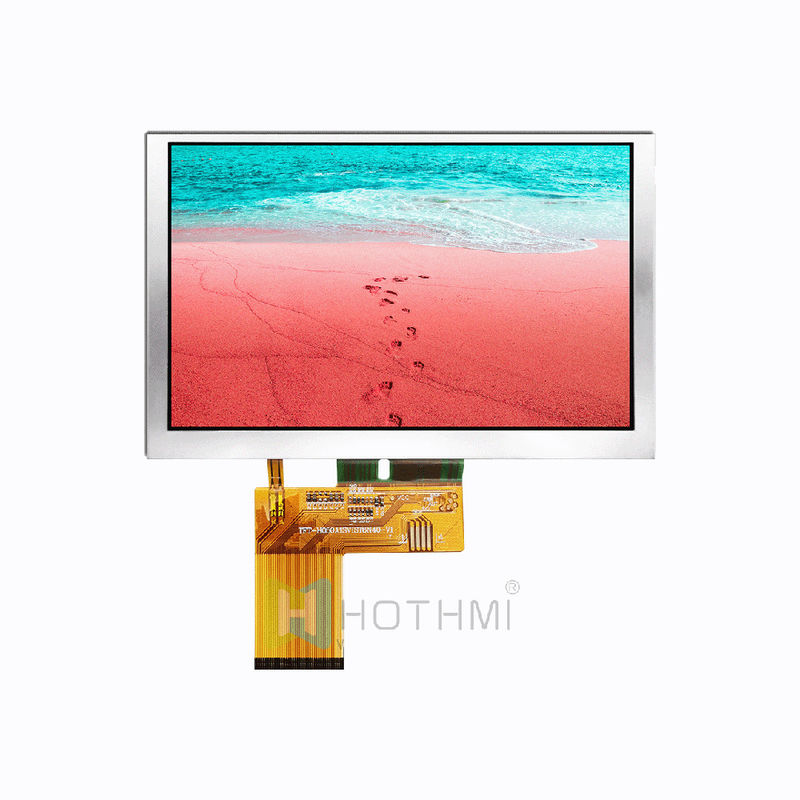

This standard 5.0 display TFT-H050A1SVIST6N40 has a resolution of 800x480 pixels, an IPS full-view display, and has a high-quality effect no matter from which direction it is viewed, with a brightness of 600cd/m2. The compact size, 3.3V low-voltage power supply and impressive display quality make this display an excellent choice for projects without resistive touch function. The same product also has models with resistive or touch.
This 5.0-inch LCD display uses a 40PIN FPC soft cable connection to provide a safe and reliable electrical connection. The connection method of the FPC soft cable makes disassembly easier and easier to operate. This TFT LCD display is powered by the SC7262 controller. The controller optimizes the function of the display to ensure smooth operation and accurate presentation of images and graphics. Popular industries for this TFT size include IoT, industrial automation, consumer electronics, test and measurement, and handheld devices. They are also ideal for DIY or prototyping projects due to their compatibility with STM32/RK. The RGB interface enables fast and efficient communication between the STM32/rk series, ensuring smooth data transmission and real-time updates. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H050A1SVIST6N40 | |
| Diagonal size | 5.0” | Inch |
| Resolution | 800X480 | Dot |
| Dimensions | 120.7x75.8x3.0 | mm |
| Active area (AA) | 108.0x64.8 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | Full View(U80/D80/R80/L80) | |
| Aspect ratio | 2:1 | |
| Backlight type | LED white | |
| TFT driver IC | ST7262 | |
| Brightness | 600 | cd/m2 |
| Operating temperature | -30~80℃ | ℃ |
| Storage temperature | -30~85℃ | ℃ |
