Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H050A1SVIST4R40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Product Type: |
TFT Landscape |
Product Application: |
Printers, Copiers, Smart Home, Vehicle Instruments |
Effective Size (mm): |
108.0x64.8 |
Connection Method PIN Number: |
40PIN |
Backlight Brightness: |
450cd/m2 |
Perspective: |
Full Perspective |
Product Type: |
TFT Landscape |
Product Application: |
Printers, Copiers, Smart Home, Vehicle Instruments |
Effective Size (mm): |
108.0x64.8 |
Connection Method PIN Number: |
40PIN |
Backlight Brightness: |
450cd/m2 |
Perspective: |
Full Perspective |

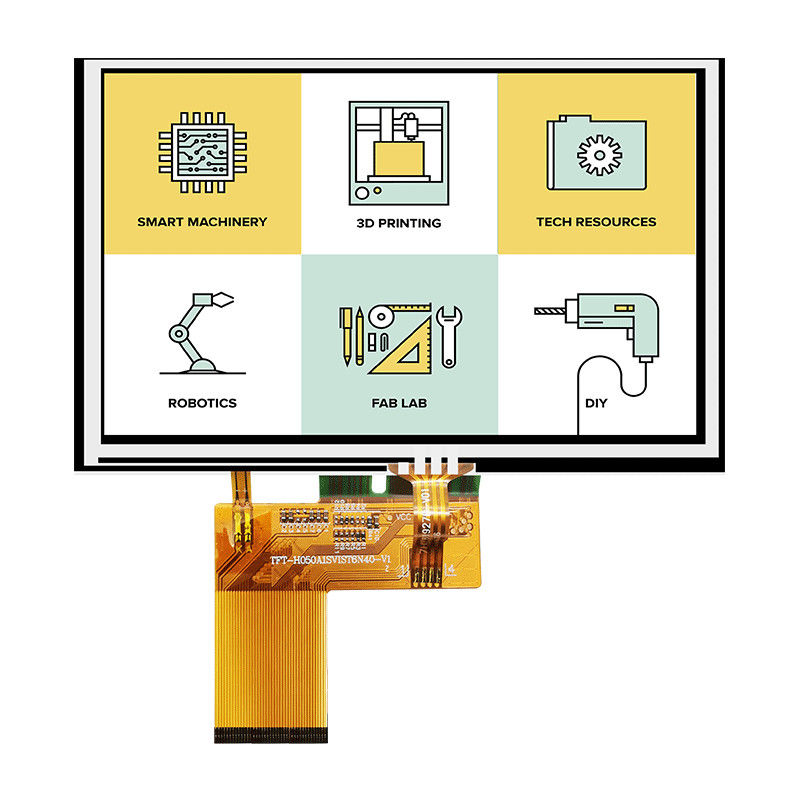

5 Inch TFT LCD Display IC 7262/800x480 Dots Resistive Touch Panel/TFT-H050A1SVIST4R40
Product parameters
Display Content - 800x480
Dimensions (mm) - 120.7x75.8x3.0
Viewport Window Size - 5.0 inch
Display Size - 5.0 inch
Interface method - RGB
Special Instructions - Ultra Wide Temperature Operation
Working temperature - (-30~80℃)
Supply Voltage - 3.3V
Driver IC Model - ST7262
General Feature
|
Item |
Standard Value |
Unit |
| Display Size | 5.0 | Inch |
| Number of Pixels | 800(H)*3(RGB)* 480(V) | dots |
| Active Area | 108.00(H)* 64.80(V) | mm |
| Outline Dimension |
120.70(H) * 75.80(V) * 4.50(D) <TFT+RTP> |
mm |
| Viewing Direction | FULL O'clock | - |
| TFT Interface | 24-bit TTL | - |
| TFT Driver IC | ST7262 | - |
|
TFT Driver Condition |
VCI=3.3V(Typ) | V |
| Backlight |
White LED/12 PCS/6 PCS serial 2 ways parallel |
- |
| Touch Panel | With RTP | - |
| CTP Driver IC | - | |
| CTP Driver Condition | VDD=3.3V(Typ) | V |
| Operation Temperature | -30 ～ 80 |
℃ |
| Storage Temperature | -30 ～ 85 |
℃ |
TFT Pin Description
| Pin NO. | Symbol | Description |
| 1 | LEDK | LED Cathode |
| 2 | LEDA | LED Anode |
| 3 | GND | Ground |
| 4 | VCI | Digital Power |
| 5～12 | DR0～7 | Red data bus.If not used, please fix this pin at GND. |
| 13～20 | DG0～7 | Green data bus.DG[7:0] are used in 8-bit RGB interface. |
| 21～28 | DB0～7 | Blue data bus.If not used, please fix this pin at GND. |
| 29 | GND | Ground |
| 30 | PCLK | Pixel clock input pin, default is negative polarity. |
|
31 |
DISP |
Display mode sets DISP=GND:Standby mode; DISP=VCI:Normal display mode |
| 32 | HSD | Horizontal sync signal, default is negative polarity. |
| 33 | VSD | Vertical sync signal, default is negative polarity. |
| 34 | DEN | Data input enable. Display access is enabled when DE is “H”. |
| 35 | NC | Not Connect |
| 36 | GND | Ground |
| 37 | RTP_XR | RTP function pin.If not used, let this pin open. |
| 38 | RTP_YD | RTP function pin.If not used, let this pin open. |
| 39 | RTP_XL | RTP function pin.If not used, let this pin open. |
| 40 | RTP_YU | RTP function pin.If not used, let this pin open. |
DESCRIPTION
HOTLCD Display 5 inch standard higher resolution TFT LCD model. The dimension is between our standard 4.3 inches and standard 5.7 inches TFT modules, but the H050A1 is with a better resolution. The H050A1 is with 800x480 resolution. The display H050A1 is a good option for customers while designing a new project which request a better resolution or competitive price. The display H050A1 is with outline dimension of 120.7 x 75.8 mm and AA size of 108.0 x 64.80 mm. The H050A1 5 inch TFT module can be operating at temperatures from –30℃ to +80℃; its storage temperatures range from -30℃ to +85℃. This display TFT-H050A1SVIST4R40 TFT LCD module is a 5 inch diagonal, 800xRGBx480, full color TFT-LCD module.
