Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H050A7SVISTKN40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Product Type: |
TFT Landscape |
Display Content: |
800x480 |
Dimensions (mm): |
120.7x75.8x2.9 |
Viewport Window Size: |
5.0 Inch |
Effective Size (mm): |
108.0x64.80 |
Product Applications: |
Instruments, Meters |
Product Type: |
TFT Landscape |
Display Content: |
800x480 |
Dimensions (mm): |
120.7x75.8x2.9 |
Viewport Window Size: |
5.0 Inch |
Effective Size (mm): |
108.0x64.80 |
Product Applications: |
Instruments, Meters |

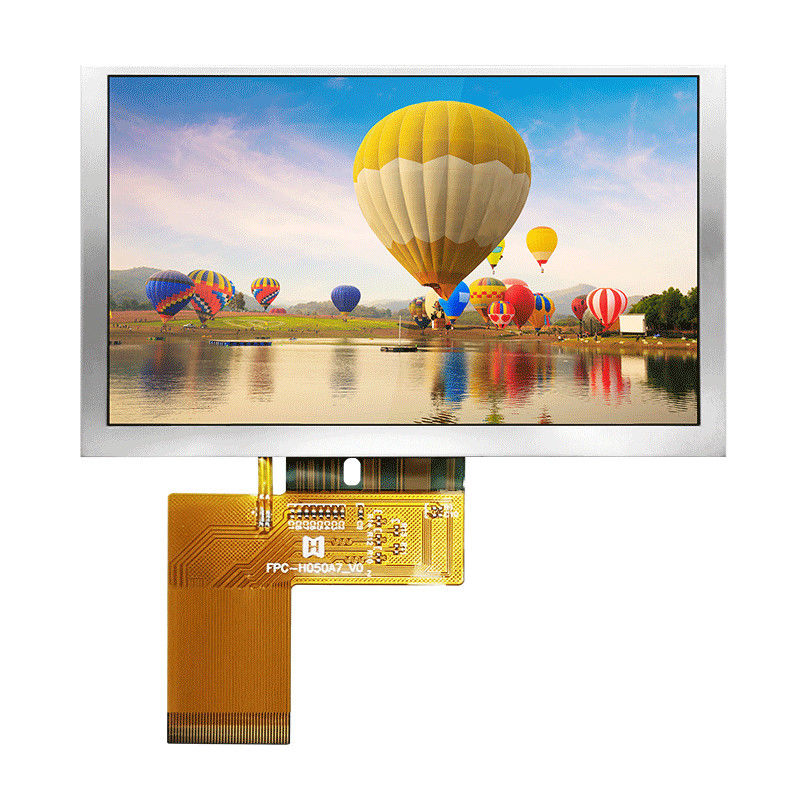

5 Inch High Brightness TFT Display 800x480 Pixels IC ST7262/TFT-H050A7SVISTKN40
Product Description
TFT-H050A7SVISTKN40 is a 5-inch TFT LCD module with IPS panel technology. This TFT-LCD has a resolution of 800 x 480 pixels. The TFT-H050A7SVISTKN40 module has built-in ST7262 driver IC, supports LVDS interface, the contrast ratio is 1000 (typical value), and the module brightness is 1000 nits (typical value). H050A7 adopts IPS panel technology, the viewing angle is wider than TN glass, left: 80 / right: 80 / top: 80 / bottom: 80 degrees, vivid colors, high-quality pictures with natural saturation. The driving voltage of the H050A7 module is 3.3V, normal black/transmissive LCD, matte glass, and the screen aspect ratio is 16:9. The operating temperature of this module is -30°C to +80°C, and the storage temperature is -30°C to +80°C. If the customer's product application needs to use high-brightness TFT, the TFT-H050A7SVISTKN40 module can be selected, and its module brightness is 1000 nits (typ.).
TFT-H050A7SVISTKN4 is 800x480 dots 5 inch color tft lcd liquid crystal display, using ST7262 driver IC, 1000cd/m2 brightness, visible in sunlight, excellent display quality, super wide viewing angle, easy to use by 8051, PIC, AVR, ARDUINO, ARM and Controlled by MCU such as Raspberry PI, all materials meet the environmental protection requirements RoHS standard.
Product parameters
Display Size - 5.0 inch
Perspective - Full View
Backlight brightness - 1000cd/m2
Connection method PIN number - FPC-40PIN
Interface method - LVDS
Working temperature - (-30~80℃)
Supply Voltage - 3.3V
Driver IC Model - ST7262
General Feature
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H050A7SVISTKN40 | |
| Diagonal size | 5.0” | Inch |
| Resolution | 640x480 | Dot |
| Dimensions | 120.7x75.8x2.9 | mm |
| Active area (AA) | 108.0x64.8 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | Full View(U80/D80/R80/L80) | |
| Aspect ratio | 3:2 | |
| Backlight type | LED white | |
| TFT driver IC | ST7262 | |
| Brightness | 1000 | cd/m2 |
| Operating temperature | -30~85℃ | ℃ |
| Storage temperature | -30~85℃ | ℃ |
