Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H024A9QVIFT5R20
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Special Instructions: |
RTP Available |
Operating Temperature: |
-20~70℃ |
Product Application: |
Instrumentation |
Dimensions (mm): |
42.52x59.86x2.20 |
Effective Size (mm): |
36.72x48.96 |
Viewport Window Size: |
2.4" |
Special Instructions: |
RTP Available |
Operating Temperature: |
-20~70℃ |
Product Application: |
Instrumentation |
Dimensions (mm): |
42.52x59.86x2.20 |
Effective Size (mm): |
36.72x48.96 |
Viewport Window Size: |
2.4" |

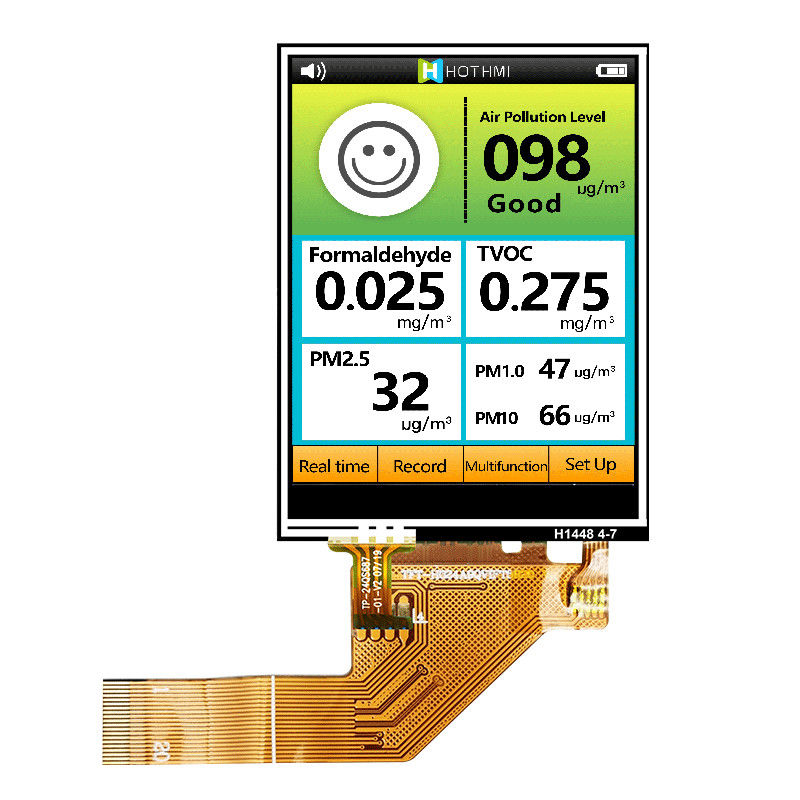

2.4 inch Standard Resistive TFT Display/240x320 Pixels/TFT-H024A9QVIFT5R20
Product parameters
Product Type - TFT
Display Content - 240x320
Display Size - 2.4"
Perspective - Full Perspective
Backlight brightness - 500cd/m2
Connection method PIN number - FPC-20PIN
Interface method - MIPI
Supply Voltage - 3.2v
Driver chip model - JD9852
| Item | Standard Value | Unit |
| Display Size | 2.4” | -- |
| Number of Pixels | 240(H)x3(RGB)x320(V) | -- |
| Active Area | 36.72(H) *48.96(V) | mm |
| Outline Dimension | 42.52(H) ×59.86(V)× 3.40(D) <TFT+RTP> | mm |
| Viewing Direction | Full O’Clock | - |
| Interface | MIPI-1L (Video mode) | - |
| Driver IC | JD9852 | - |
| Driver Condition | VCI=2.8V,IOVCC=1.8V | V |
| Backlight | White LED | - |
| Touch Panel | Resistive Touch Panel | - |
| CTP Driver IC | - - - | |
| CTP Driver Condition | VDD=3.3V | |
| Operation Temperature | -20~70 | ℃ |
| Storage Temperature | -30~80 | ℃ |
3.1 Pin Description
| Pin NO. | Symbol | Description |
| 1 | GND | Ground |
| 2 | RTP_XR | Resistive touch control signal |
| 3 | RTP_YD | Resistive touch control signal |
| 4 | RTP_XL | Resistive touch control signal |
| 5 | RTP_YU | Resistive touch control signal |
| 6 | NC | No Connect |
| 7 | GND | Ground |
| 8 | D0N | MIPI-DSI Data differential signal input pins. |
| 9 | D0P | MIPI-DSI Data differential signal input pins. |
| 10 | GND | Ground |
| 11 | DCKN | MIPI-DSI CLOCK differential signal input pins. |
| 12 | DCKP | MIPI-DSI CLOCK differential signal input pins. |
| 13 | GND | Ground |
| 14 | RESX | Global reset pin. Active low to enter reset state. |
| 15 | IOVCC | Logic Power(1.75 ~ 3.3 V,1.8V Type) |
| 16 | VCI | Analog Power(2.6 ~ 3.3 V,2.8V Type) |
| 17 | GND | Ground |
| 18 | LED_A | LED Anode |
| 19 | LED_K | LED Cathode |
| 20 | GND | Ground |
TFT-H024A9QVIFT5R20 | 2.4" Standard LCD | 240x320 Pixels | Resistive Touchscreen
This 240x320 resolution LCD TFT is a standard display with 8-bit/16-bit Parallel interface, offering 262K colors and a full optimal view. This Liquid Crystal Display has a built-in JD9852 controller, FFC ZIF I/O connection, is RoHS compliant and has a resistive touchscreen.
