Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H050A11FWIST5C20
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
480x854 |
Dimensions (mm): |
72.0x122.0x4.15 |
Field Of View Window Size: |
IPS Full Viewing Angle |
Backlight Brightness: |
500cd/m2 |
Driver Chip: |
ST7701S |
Interface: |
MIPI |
Operating Temperature:: |
-20~70℃ |
Display Content: |
480x854 |
Dimensions (mm): |
72.0x122.0x4.15 |
Field Of View Window Size: |
IPS Full Viewing Angle |
Backlight Brightness: |
500cd/m2 |
Driver Chip: |
ST7701S |
Interface: |
MIPI |
Operating Temperature:: |
-20~70℃ |
If you need to purchase please contact https://www.display-lcd.com/

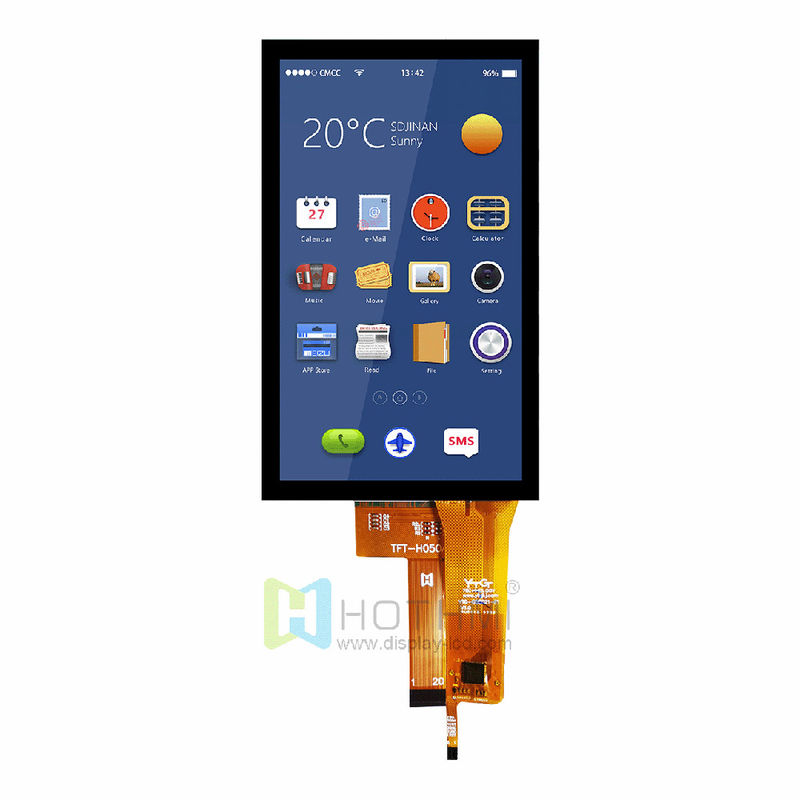

5.0-inch Capacitive Touch TFT LCD/480x854 IPS Full Viewing Angle Capacitive Touch LCD Display/MIPI Interface/ST7701S Controller/Android/RK Motherboard
▶ Model: TFT-H050A11FWIST5C20
▶ Type: TFT standard display
▶ Display pixels: 480x854
▶ Display inches: 72.0x122.0x4.15
▶ AA size (mm): 61.632x109.654
▶ Application: Instrumentation, portable electronic devices
▶ Viewing angle: IPS full viewing angle
▶ Backlight/brightness: 500cd/m2
▶ Pin: FPC-20 pin
▶ Interface: MIPI
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7701S<TFT>,GT911<CTP>
This standard 5.0 display TFT-H050A11FWIST5C20 has a resolution of 480x854 pixels, IPS full viewing angle, and excellent quality no matter which direction you watch from, with a brightness of 500cd/m2. The compact size, 3.3V low voltage power supply, and impressive display quality make this display an excellent choice for projects without touch function.
This 5.0-inch LCD display uses a 20PIN FPC soft cable connection to provide a safe and reliable electrical connection, and the FPC soft cable connection method makes disassembly easier and easier to operate. This TFT LCD display is powered by the ST7701S controller. The controller optimizes the function of the display to ensure smooth operation and accurate presentation of images and graphics. Popular industries for this TFT size include the Internet of Things, industrial automation, consumer electronics, test and measurement, and handheld devices. Due to their compatibility with Android/RK motherboards, they are also very suitable for DIY or prototype projects. The LVDS interface enables fast and efficient communication between Linux/industrial control motherboards/RK series, ensuring smooth data transmission and real-time updates. Our displays are all RoHS compliant and adhere to strict environmental and safety standards
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H050A11FWIST5C20 | |
| Diagonal size | 5.0” | Inch |
| Resolution | 480x854 | Dot |
| Dimensions | 72.0x122.0x4.15 | mm |
| Active area (AA) | 61.632x109.654 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | Full View(U80/D80/R80/L80) | |
| Aspect ratio | 1:2 | |
| Backlight type | LED white | |
| TFT driver IC | ST7701S | |
| Brightness | 500 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ | ℃ |
