Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H040A19WVIST5N40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
480x800 Dots |
Dimensions (mm): |
57.14x96.85 |
Field Of View Window Size: |
Full View |
Backlight Brightness: |
500cd/m2 |
Driver Chip: |
ST7701S |
Interface: |
RGB+SPI |
Operating Temperature:: |
-20°C~70 °C |
Display Content: |
480x800 Dots |
Dimensions (mm): |
57.14x96.85 |
Field Of View Window Size: |
Full View |
Backlight Brightness: |
500cd/m2 |
Driver Chip: |
ST7701S |
Interface: |
RGB+SPI |
Operating Temperature:: |
-20°C~70 °C |

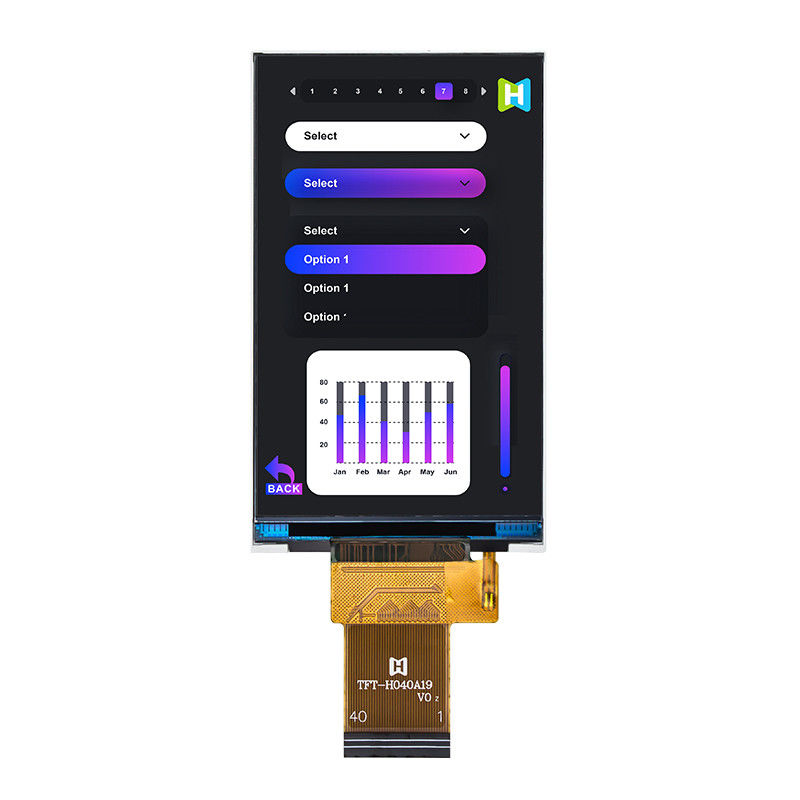

This 4.0-inch TFT LCD display adopts 480x3(RGB)x800 resolution, with a display area of 51.84mm×86.40mm. It is equipped with full viewing angle (80 degrees up, down, left and right) technology to ensure that the picture is full of color and has a wide viewing angle. Whether it is industrial control, medical equipment or consumer electronics, it can present a clear and delicate visual experience.
This 4.0-inch TFT LCD display is equipped with ST7701Sdriver chip, supports RGB+9b_SPI (rising edge) and RGB+16b_SPI (falling edge) dual interface modes, and flexibly adapts to different system requirements. Its operating voltage range is 2.8V~3.6V, compatible with mainstream embedded platforms, built-in white LED backlight system, 8 LED series design provides 500cd/m² typical brightness, meeting the high visibility requirements in diverse indoor and outdoor lighting environments. The product has passed rigorous reliability testing and can operate stably in an environment of -20℃ to +70℃. It also has anti-vibration and anti-static (contact ±4KV/air ±8KV) capabilities, adapting to the harsh challenges of industrial scenarios.
From smart home control panels to in-vehicle information terminals, this 4.0-inch TFT LCD display TFT-H040A19 injects visual competitiveness into your innovative products with compact size (57.14mm×96.85mm×2.00mm), high reliability and excellent display performance. In the same series, we also provide the module with driver board HTM-H040A27-SPI-A01C, and the square display TFT-H040A12DHIIL3C40 with
optical bonding touch function.
General Feature
| Item | Standard Value | Unit |
| Display Size | 4.0 | Inch |
| Number of Pixels | 480(H)* 3(RGB)* 800(V) | dots |
| Active Area | 51.84x86.4 | mm |
| Outline Dimension | 57.14x96.85 | mm |
| Viewing Direction | Full View | - |
| TFT Interface | RGB+SPI | - |
| TFT Driver IC | ST7701S | - |
| TFT Driver Condition | VCI=3.3V(Typ) | V |
| Backlight-1 | White LED/8 PCS/4 LEDs serial 2 ways parallel | - |
| Touch Panel | - | - |
| CTP Driver IC | - | - |
| CTP Driver Condition | VDD=3.3V(Typ) | V |
| Operation Temperature | -20 ～ 70 | ℃ |
| Storage Temperature | -30 ～ 80 | ℃ |
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Glass Color | While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
