Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H030A10FWIST3C40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
480x854 |
Dimensions (mm): |
43.5x75.4x3.8 |
Field Of View Window Size: |
IPS Full Viewing Angle |
Backlight Brightness: |
300cd/m2 |
Driver Chip: |
ST7701 |
Interface: |
RGB |
Operating Temperature:: |
-30~80℃ |
Display Content: |
480x854 |
Dimensions (mm): |
43.5x75.4x3.8 |
Field Of View Window Size: |
IPS Full Viewing Angle |
Backlight Brightness: |
300cd/m2 |
Driver Chip: |
ST7701 |
Interface: |
RGB |
Operating Temperature:: |
-30~80℃ |

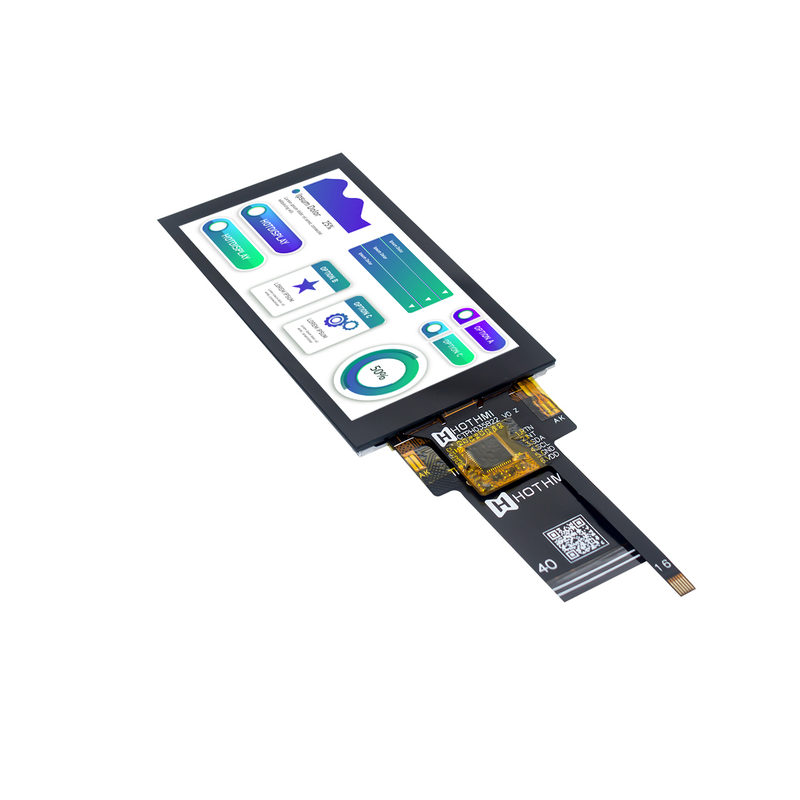

This 3-inch, 480x854 TFT LCD display features exquisitely detailed pixels, capturing every detail within its 3-inch footprint. The IPS (Full Viewing Angle) and moderate brightness ensure this 3.0-inch TFT LCDdelivers a high-quality display.
This model features capacitive touch, and the GT911 touch chip ensures a silky-smooth feel when your fingertips glide across the screen. Advanced capacitive touch technology ensures swift and precise responses to taps, swipes, and pinch-to-zoom actions. Every action is accompanied by precise feedback, with zero lag and false touches. The ST7701 controller is compatible with development platforms such as Arduino and LVGL.
The transition between the screen and the frame has been meticulously calculated. The slim yet sturdy "plastic-iron integrated" construction not only provides a solid and reliable grip, but also ensures smooth and responsive operation even at the edges of the touch area. Both the display and the touch panel utilize flexible FPC cables, allowing users to easily connect to the driver board, making this a developer-friendly solution.
The TFT-H030A10FWIST3C40 capacitive touch screen, whether integrated into a compact portable device, a professional industrial control interface, or the control center of a smart home, quietly elevates every interaction with its reliable quality, comfortable appearance, and responsive feedback, making even the most cold technology accessible, warm, and vivid. The non-touch version of the same series is TFT-H030A10FWIST3N40.
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H030A10FWIST3C40 | |
| Diagonal size | 3.0” | Inch |
| Resolution | 480x854 | Dot |
| Dimensions | 43.5x75.4x3.8 | mm |
| Active area (AA) | 36.72x65.28 | mm |
| LCD type | 3.0” TFT Module | mm |
| Display viewing angle | Full View | |
| Aspect ratio | 2:3 | |
| Backlight type | LED white | |
| TFT driver IC | ST7701 | |
| Brightness | 300cd/m2 | cd/m2 |
| Operating temperature | -30~80℃ | ℃ |
| Storage temperature | -30~80℃ | ℃ |
