Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H116D01FHIWZ3N30
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
1920x1080 Dots |
Dimensions (mm): |
263.34x157.16 |
Field Of View Window Size: |
Full View |
Backlight Brightness: |
350cd/m2 |
Driver Chip: |
TBD |
Interface: |
EDP 2-Lane |
Operating Temperature:: |
-20°C~70 °C |
Display Content: |
1920x1080 Dots |
Dimensions (mm): |
263.34x157.16 |
Field Of View Window Size: |
Full View |
Backlight Brightness: |
350cd/m2 |
Driver Chip: |
TBD |
Interface: |
EDP 2-Lane |
Operating Temperature:: |
-20°C~70 °C |

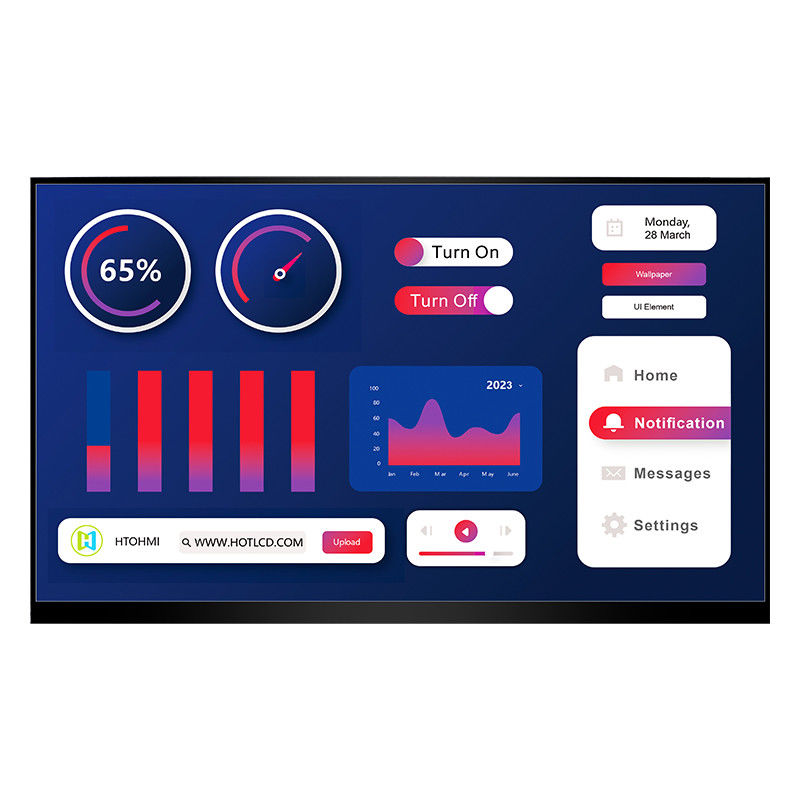

11.6 Inch IPS 1920x1080 Wide Temperature TFT Display Panel For Industrial
TFT-H116D01FHIWZ3N30 | 11.6" IPS TFT LCD Display | TFT LCD Display Manufacturer | 1920x1080 HD resolution | -20℃~70℃ | For industrial computer | Interface EDP 2-Lane | Wide Temperature
11.6-Inch IPS 1920x1080 Wide Temperature TFT Display Panel for Industrial Applications
Introducing the TFT-H116D01FHIWZ3N30, a high-performance 11.6-inch IPS TFT LCD display designed specifically for industrial applications. This versatile display offers the following standout features:
High-Definition Clarity: With a crisp 1920x1080 HD resolution, this display ensures sharp and detailed visuals, making it perfect for industrial data visualization.
Robust Temperature Range: Operating flawlessly in temperatures ranging from -20°C to 70°C, this display thrives in industrial environments with varying climate conditions.
Industrial-Grade Reliability: Engineered to meet the rigorous demands of industrial computing, it delivers exceptional durability and reliability, adhering to strict industrial standards.
EDP 2-Lane Interface: Equipped with a high-speed EDP 2-Lane interface, it guarantees swift data transfer and superior image quality.
The TFT-H116D01FHIWZ3N30 is the ideal choice for a wide range of industrial applications, from control systems to rugged computing solutions. As a leading TFT LCD display manufacturer, we provide dependable products and outstanding technical support. Elevate your industrial computing experience with the TFT-H116D01FHIWZ3N30, delivering impeccable visuals in even the harshest environments.
General Feature
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H116D01FHIWZ3N30 | |
| Diagonal size | 8.9” | Inch |
| Resolution | 800X1280 | Dot |
| Dimensions | 125.38*202.84*2.55 | mm |
| Active area (AA) | 119.28*190.85 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | Full View | |
| Aspect ratio | 1:1.5 | |
| Backlight type | LED white | |
| TFT driver IC | JD9365D | |
| Brightness | 500cd/m2 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ | ℃ |
