Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H116D01FHIWZKN30
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
1920x1080 Dots |
Dimensions (mm): |
267.72x164.42 |
Field Of View Window Size: |
Full View |
Backlight Brightness: |
1000cd/m2 |
Driver Chip: |
TBD |
Interface: |
EDP 2-Lane |
Operating Temperature:: |
-20°C~70 °C |
Display Content: |
1920x1080 Dots |
Dimensions (mm): |
267.72x164.42 |
Field Of View Window Size: |
Full View |
Backlight Brightness: |
1000cd/m2 |
Driver Chip: |
TBD |
Interface: |
EDP 2-Lane |
Operating Temperature:: |
-20°C~70 °C |

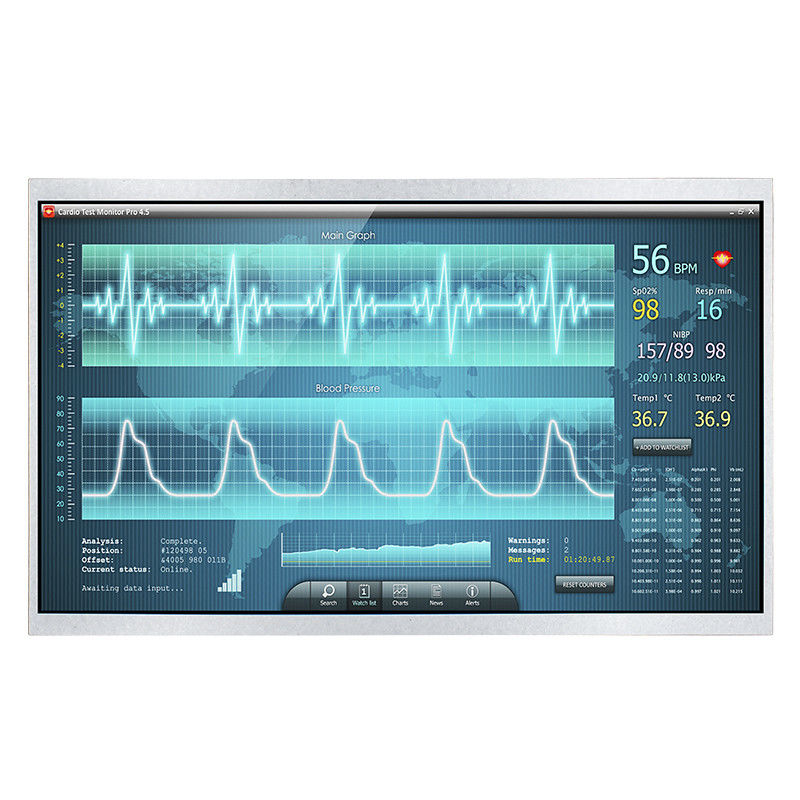

11.6 Inch IPS 1920x1080 Wide Temperature TFT Display Sunlight Readable
TFT-H116D01FHIWZKN30 | 11.6" IPS TFT LCD Display | TFT LCD Display Manufacturer | 1920x1080 HD resolution | -20℃~70℃ | For industrial computer | Interface EDP 2-Lane | Wide Temperature | Sunlight Readable
Product Description: The TFT-H116D01FHIWZKN30 is a high-performance 11.6-inch IPS TFT LCD display designed for industrial computers, catering to the demands of various harsh environmental conditions. Its outstanding features make it an ideal choice for industrial applications.
Key Features:
The TFT-H116D01FHIWZKN30 finds wide applications in industrial automation, outdoor displays, traffic control, medical equipment, and military applications, renowned for its exceptional performance and durability. This display is a reliable industrial-grade solution capable of operating steadily in a variety of harsh environments and ensuring easy readability of screen content under varying lighting conditions.
General Feature
| project | Parameter Description | unit |
| TFT series | Standard TFT module | |
| Diagonal size | 11.6 " | Inch |
| Resolution | 1920 x RGB x 1080 (TFT) | dots |
| Dimensions | 267.72x164.42x6.15 | mm |
| Effective area (AA) | 256.32x144.18 | mm |
| LCD type | Horizontal TFT module | |
| Display perspective | 85/85/85/85 (IPS) | |
| Aspect ratio | 1.1:2 | |
| Backlight type | LED, white | |
| TFT driver IC | T.B.D | |
| Touch panel | nothing | |
| Surface | Bright surface | |
| Brightness | one thousand | cd/㎡ |
| Operating temperature | -20~+70 | °C |
| Storage temperature | -30~+80 | °C |
