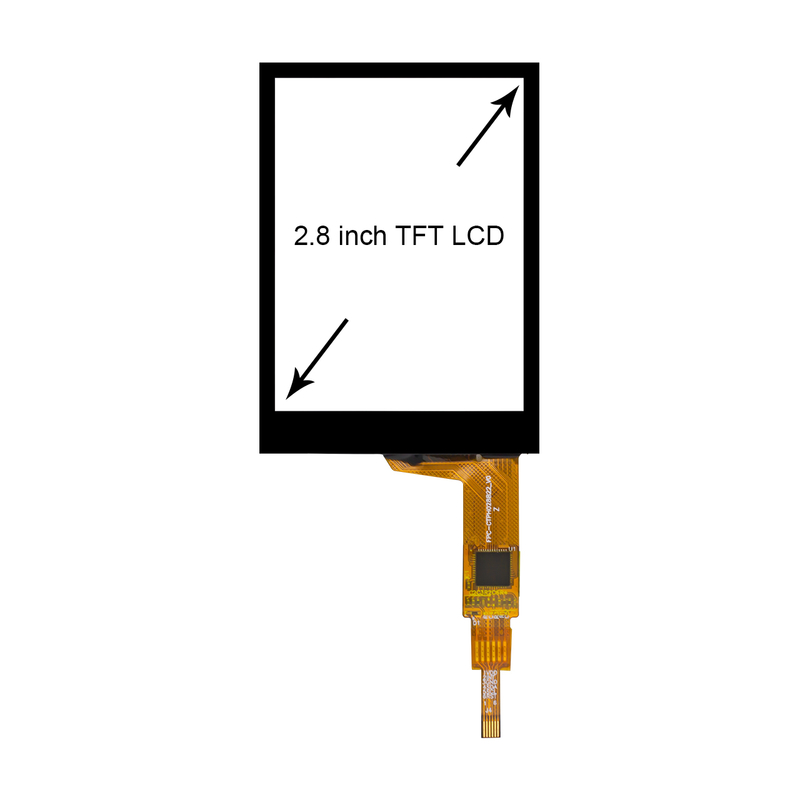

2.8 inch Capacitive Touch Panel with Glass + Glass structure and IIC Interface

Product Details

Place of Origin: dongguan,China

Brand Name: HOTHMI

Model Number: CTPH028B22_V0

Payment & Shipping Terms

Minimum Order Quantity: 2

Delivery Time: 25 days

Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability: 99999

Get Best Price
Product Details
Highlight:
Dimensions (mm):
44.2x58.6
Backlight Brightness:
1500cd/m2
Driver Chip:
GT911
Interface:
IIC
Operating Temperature::
-20~70℃
Dimensions (mm):
44.2x58.6
Backlight Brightness:
1500cd/m2
Driver Chip:
GT911
Interface:
IIC
Operating Temperature::
-20~70℃
Product Description

If you need to purchase please contact https://www.display-lcd.com/



1. Precision Dimensions & Tolerances

Front view: Critical dimensions with tight tolerances (e.g., 49.90±0.1mm, 7.25±0.2mm) ensure high accuracy for seamless integration.

Side/Back views: Multi-layer thickness control (1.45±0.1mm total) with sensor-specific tolerances (±0.1mm) guarantees consistent performance.



2. Robust Material & Construction

SUS (Stainless Steel) Midplate (T=0.2mm) enhances durability and structural stability.

Black finish for a sleek, professional appearance.



3. Advanced Sensor Integration

Multiple sensor-ready interfaces (e.g., 0.70±0.1mm sensor slots) support high-precision detection.

Back-view pin configuration (Pin_S10ML) includes essential connections (VDD, INT, GND, SDA) for versatile electronic compatibility.



4. Optimized Electrical Performance

3.3V VDD power supply (typ) with ≥85% efficiency ensures energy-efficient operation.

Supports GT911 touch controller, ideal for responsive touch applications.



5. Environmental & Industry Compliance

Meets CIP TFT standards for display interfaces.

Rated for 40V contact / 80V air resolution (Back telly), suitable for industrial environments.

Storage and operational conditions adhere to stringent environmental guidelines.



6. Design Flexibility

P0.5x5=2.50mm pitch pattern allows modular expansion.

Scalable 1:1 design (per drawing) facilitates easy prototyping and production.



Ideal Applications:

Industrial touch panels, embedded systems, and precision electronic devices requiring reliable sensor integration and compact form factors (1.45mm thickness).



Quality Assurance:

Dimensional accuracy (±0.1mm), material durability (SUS), and compliance with Airbus-referenced standards ensure top-tier performance.
