Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H024A9QVIFT8N20
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Product Type: |
TFT |
Display Content: |
240x320 |
Dimensions (mm): |
42.52x59.86x2.20 |
Viewport Window Size: |
2.4" |
Effective Size (mm): |
36.72x48.96 |
Backlight Brightness: |
800cd/m2 |
Product Type: |
TFT |
Display Content: |
240x320 |
Dimensions (mm): |
42.52x59.86x2.20 |
Viewport Window Size: |
2.4" |
Effective Size (mm): |
36.72x48.96 |
Backlight Brightness: |
800cd/m2 |

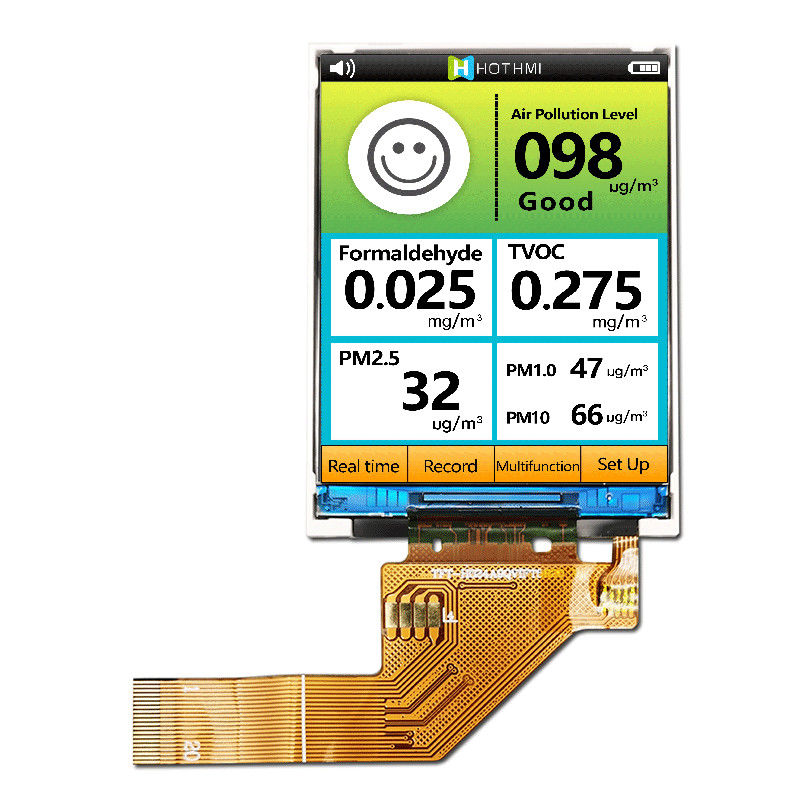

2.4 inch Sunlight Readable TFT LCD Display/240x320 Pixels/TFT-H024A9QVIFT8N20
Product parameters
Display Size - 2.4"
Product Application - Instrumentation
Perspective - Full Perspective
Connection method PIN number - FPC-20PIN
Interface method - MIPI
Special Instructions - RTP available
Operating temperature - (-20~70℃)
Supply Voltage - 3.2v
Driver chip model - JD9852
| Item | Standard Value | Unit |
| Display Size | 2.4” | -- |
| Number of Pixels | 240(H)x3(RGB)x320(V) | -- |
| Active Area | 36.72(H)x48.96(V) | mm |
| Outline Dimension | 42.52(H) ×59.86(V)× 3.40(D) | mm |
| Viewing Direction | Full O’Clock | - |
| Interface | MIPI-1L (Video mode) | - |
| Driver IC | JD9852 | - |
| Driver Condition | VCI=2.8V,IOVCC=1.8V | V |
| Backlight | White LED | - |
| Touch Panel | Resistive Touch Panel | - |
| CTP Driver IC | - - - | |
| CTP Driver Condition | VDD=3.3V | |
| Operation Temperature | -20~70 | ℃ |
| Storage Temperature | -30~80 | ℃ |
TFT-H024A9QVIFT8N20 is a 2.4-inch TFT color LCD screen carefully designed by Xinhongtai HOTLCD R&D team, 240*320 resolution, high picture quality, wide viewing angle, 65K/262K true color, built-in JD9852 controller, support MIPI interface , No peripheral circuit, 20PIN plug-in FPC can be connected to the main board (optional connector), single power supply DC2.8V power supply. This TFT module can be equipped with a touch screen, and all materials comply with the RoHS standard of environmental protection requirements. It is widely used in various instruments, smart devices, analytical instruments, hand-held instruments, driving recorders, etc. : 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi, etc.
