Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H024B12QVIFT8N15
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
240x320 |
Dimensions (mm): |
42.52x59.86x2.20 |
Viewport Window Size: |
2.4" |
Effective Size (mm): |
36.72x48.96 |
Product Application: |
Instrumentation |
Perspective: |
Full Perspective |
Display Content: |
240x320 |
Dimensions (mm): |
42.52x59.86x2.20 |
Viewport Window Size: |
2.4" |
Effective Size (mm): |
36.72x48.96 |
Product Application: |
Instrumentation |
Perspective: |
Full Perspective |

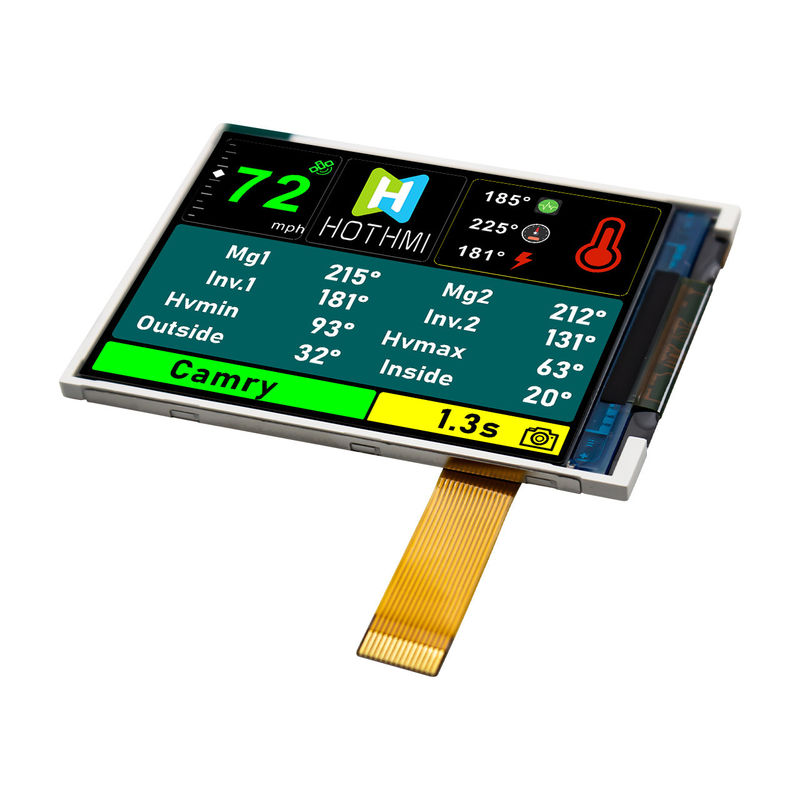

2.4 inch high brightness sunlight readable LCD TFT/240x320 Pixels/TFT-H024B12QVIFT8N15
Product parameters
Product Type - TFT
Display Size - 2.4"
Backlight brightness - 800cd/m2
Connection method PIN number - FPC-15PIN
Interface method - MIPI
Working temperature - (-20~70℃)
Supply Voltage - 3.2V
Driver chip model - JD9852
General Feature:
| Item | Standard Value | Unit |
| Display Size | 2.4 | Inch |
| Number of Pixels | 240(H)x3(RGB)x320(V) | -- |
| Active Area | 36.72(H) x48.96(V) | mm |
| Outline Dimension |
42.52(H) ×59.86(V)× 2.20(D) <TFT> |
mm |
| Viewing Direction | Full O’Clock | - |
| Interface | MIPI-1L (Video mode) | - |
| Driver IC | JD9852 | - |
| Driver Condition | VCI=2.8V,IOVCC=1.8V | V |
| Backlight | LED White LED | - |
| Touch Panel | Whitout Touch Panel | - |
| CTP Driver IC | - - - | |
|
CTP Driver Condition |
VDD=3.3V | |
| Operation Temperature | -30~80 | ℃ |
| Storage Temperature | -30~80 | ℃ |
Pin Description
| Pin | Symbol | Description |
| 1 | TE | No Connect |
| 2 | GND | Ground |
| 3 | D0N | MIPI-DSI Data differential signal input pins. |
| 4 | D0P | MIPI-DSI Data differential signal input pins. |
| 5 | GND | Ground |
| 6 | DCKN | MIPI-DSI CLOCK differential signal input pins. |
| 7 | DCKP | MIPI-DSI CLOCK differential signal input pins. |
| 8 | GND | Ground |
| 9 | RESX | Global reset pin. Active low to enter reset state. |
| 10 | GND | Ground |
| 11 | IOVCC | Logic Power(1.75 ~ 3.3 V,1.8V Type) |
| 12 | VCI | Analog Power(2.6 ~ 3.3 V,2.8V Type) |
| 13 | GND | Ground |
| 14 | LED_A | LED Anode |
| 15 | LED_K | LED Cathode |
TFT-H024B12QVIFT8N15 is a 2.4-inch TFT color LCD screen carefully designed by HOTLCD R&D team, 240*320 resolution, high image quality, wide viewing angle, 65K/262K true color, built-in JD9852 controller, support MIPI interface, no need for peripheral circuits, 15PIN The plug-in FPC can be connected to the motherboard (optional connector), and the single power supply DC 3.2V power supply. The TFT module can be equipped with a touch screen, and all materials are RoHS compliant. Widely used in various instruments, intelligent equipment, analytical instruments, handheld instruments, driving recorders, etc.: 8051, PIC, AVR,
