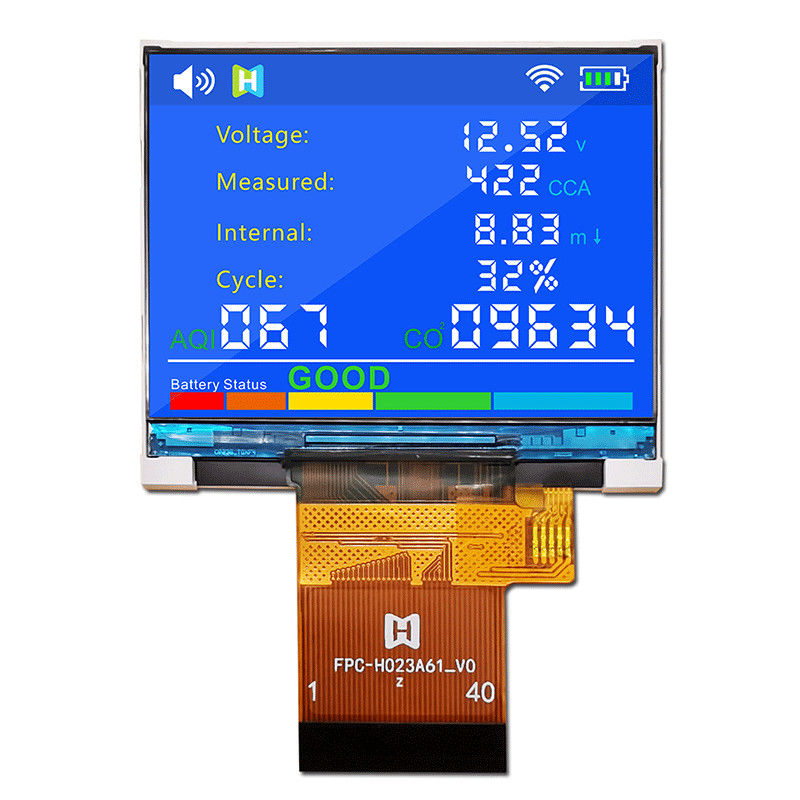

2.3 inch square standard TFT without touch screen/320x240 Pixels/TFT-H023A61LQTIL2N40
Product parameters
Display Size - 2.3"
Product Applications - Instruments, Meters
Viewing Angle - 12H
Backlight type or brightness - 250cd/m2
Connection method PIN number - FPC-40PIN
Interface - 8080 MCU 8/16-Bit
Working temperature - (-20~70℃)
Supply Voltage - 2.8V
Driver IC Model - ILI9342C
|
Item |
Standard Value |
Unit |
| Display Size | 2.3 inch | Inch |
| Number of Pixels | 320(H)x3(RGB)x 240(V) | dots |
| Active Area | 46.75(H)x 35.06(V) | mm |
| Outline Dimension | 51.00(H) x 45.80(V)x 2.50(D) <TFT> | mm |
| Viewing Direction |
12 O'clock |
- |
| TFT Interface |
8080 MCU 8/16-Bit |
- |
| TFT Driver IC | ILI9342 | - |
|
TFT Driver Condition |
VCI=2.8V,IOVCC=1.8V(Typ) | V |
| Backlight | White LED/4 PCS/4 LEDs parallel | - |
| Touch Panel | Without TP With RTP With CTP | - |
| CTP Driver IC | - - - | - |
| CTP Driver Condition | VDD=3.3V(Typ) | V |
| Operation Temperature | -20 ～ 70 |
℃ |
| Storage Temperature | -30 ～ 80 |
℃ |
Product Description
TFT-H023A61LQTIL2N40 is an industrial-grade horizontal display TFT LCD screen with a resolution of 320x240 pixels, the typical brightness of the LCD screen is 250 nits, and the viewing angle is 12H direction; the supply voltage (VCI) is 2.8V~3.2V, typical value is 2.8V. The working temperature is -20℃~+70℃, and the storage temperature is -30℃~+80℃. The products are used in various small smart devices, home appliances, monitors, etc.
