Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H020A4QVIST6N40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Working Temperature: |
-20~70℃ |
Dimensions (mm): |
35.70 × 51.20 × 2.30 |
Viewport Window Size: |
2.0" |
Product Application: |
Outdoor Instrumentation, Vehicle, Industrial Control |
Effective Size（mm）: |
30.60x40.80 |
Perspective: |
Full View |
Working Temperature: |
-20~70℃ |
Dimensions (mm): |
35.70 × 51.20 × 2.30 |
Viewport Window Size: |
2.0" |
Product Application: |
Outdoor Instrumentation, Vehicle, Industrial Control |
Effective Size（mm）: |
30.60x40.80 |
Perspective: |
Full View |
Product parameters
Product Type - MCU TFT
Display Content - 240x320
Display Dimensions (mm) - 2.0"
Backlight type or brightness - 600cd/m2
Connection method PIN number - FPC-40PIN
Interface - MCU/SPI
Supply Voltage - 2.8V
Driver chip model - ST7789V
General Feature:
| Item | Standard Value | Unit |
| Display Size | 2.0” | -- |
| Number of Pixels | 240(H)x3(RGB)*320(V) | -- |
| Active Area | 30.60(H) *40.80(V) | mm |
| Outline Dimension | 35.70(H) ×51.20(V)× 2.30(D) | mm |
| Viewing Direction | FULL O'clock | - |
| Interface | MCU 8/16 bit interface compatible with SPI 3L/4L | - |
| Driver IC | ST7789V | - |
| Driver Condition | IOVCC=1.8V,VCI=2.8V | V |
| Backlight | White LED | - |
| Touch Panel | No Touch Panel | - |
| Operation Temperature | -30~85 | ℃ |
| Storage Temperature | -30~85 | ℃ |
| PPI | 199 | - |
Product Description

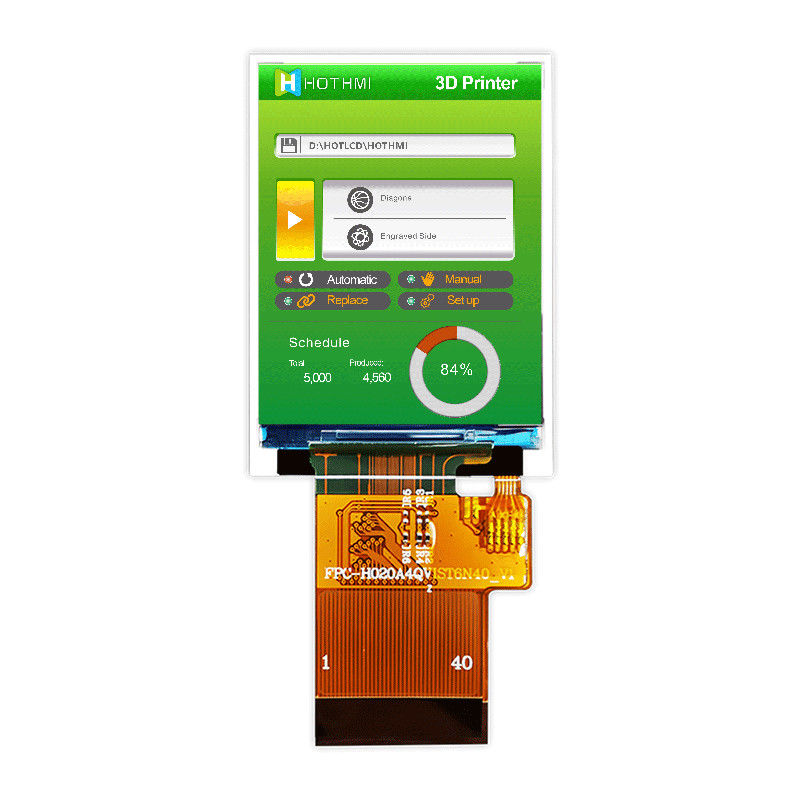

Product Description TFT-H020A4QVIST6N40 is a 2.0-inch full-color TFT LCD module with a resolution of 240x320 pixels and an aspect ratio of 3:4. The TFT module adopts ST7789V driver IC and supports MCU interface. The TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/up 80 degrees/down 80 degrees), the typical contrast ratio is 800:1, and the module brightness is as high as 600 nits (typical value). The operating temperature range of the module is -30℃~+85℃, and the storage temperature range is -30℃~+85℃.
