Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-080T61SVHDVNSDC
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Product Type: |
TFT HI Module |
Display Content: |
1024x768 Dots |
Viewport Window Size: |
8.0 Inch |
Product Application: |
Instrumentation, Smart Home |
Backlight Type Or Brightness: |
250cd/m2 |
Optional: |
Capacitive Touch Screen |
Product Type: |
TFT HI Module |
Display Content: |
1024x768 Dots |
Viewport Window Size: |
8.0 Inch |
Product Application: |
Instrumentation, Smart Home |
Backlight Type Or Brightness: |
250cd/m2 |
Optional: |
Capacitive Touch Screen |

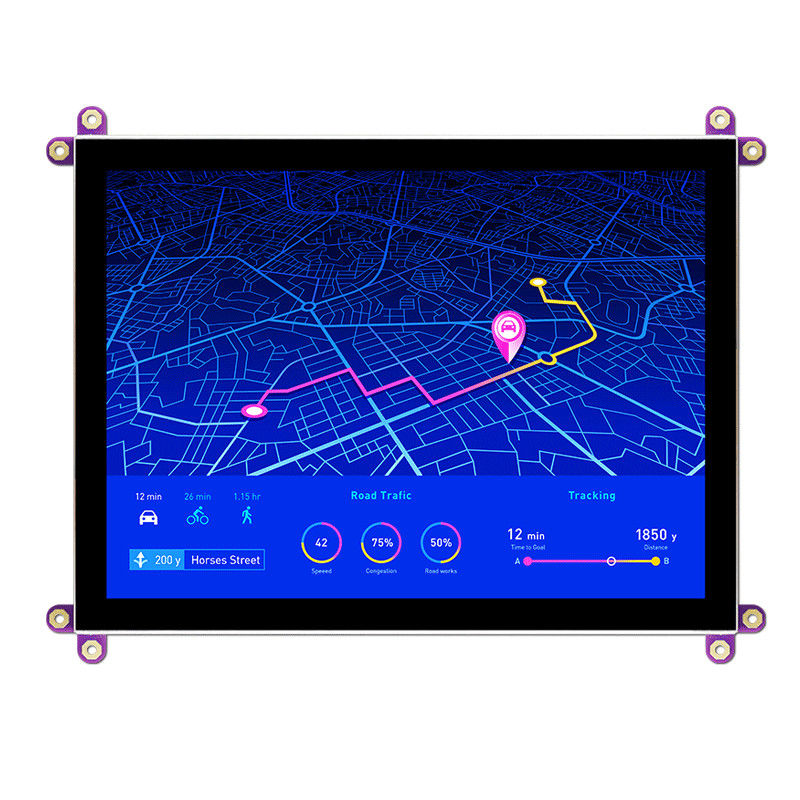

8 Inch 1024x768 For HI Signal TFT Display With Capacitive Touch/TFT-080T61SVHDVNSDC
Product parameters
Dimensions (mm) - 203x161x21.8
Display Size - 8.0 inch
Effective size (mm) - 162.05x121.54
Viewing Angle - 12H Viewing Angle
Connection method PIN number - FPC-46PIN
Interface - HI, VGA interface
Working temperature - -20~70℃
Supply Voltage - 9~24V
LCD parameters
| Item | Standard Value | Unit |
| Display Size | 8.0 inch | Inch |
| Number of Pixels | 1024(H)*3(RGB)* 768(V) | dots |
| Active Area | 162.05(H)* 121.54(V) | mm |
| Outline Dimension | 203.00(H) * 161.00(V) * 23.50(D) <With CTP> | mm |
| Contrast Ratio | Type 500:1 | - |
| Response Time | Type 20(Tr + Tf) | msec |
| Viewing Direction | 12 O'clock(U70/D75/L75/R75) | - |
| Maximum color | 16.7 M | Color |
| USB Touch Pane | With CTP | - |
| Operation Temperature | -20 ～ 70 | ℃ |
| Storage Temperature | -30 ～ 80 | ℃ |
Product introduction
- 8.0 inch standard display, 1024×768(XGA) resolution
- 300 cd/m² brightness, 30,000 hours long-life backlight. There is a need to customize 500 ～ 1000 higher brightness, or 50000 hours longer life backlight
- Support OSD control buttons to help users adjust the LCD screen to the best state for different application environments,OSD menu can be switched in Chinese and English.
- Support VGA and HI 1.4a signal input (choose one when using, cannot
identify at the same time)
- Supports multi-point USB interface drive-free capacitive touch screen
- Support panel embedded installation, only need4 screws to fix the PCB,
easy installation and maintenance
- Compatible with mainstream operating systems and embedded operating systems such as DOS/Windows98/2000/XP/win7/win8/win10/Embedded/Linux.
Pin NO. | Symbol |
| 1 | VIN |
| 2～3 | GND |
Pin NO. | Symbol |
| 1 | TMDS D2+ |
| 2 | TMDS D2 Shield |
| 3 | TMDS D2- |
| 4 | TMDS D1+ |
| 5 | TMDS D1 Shield |
| 6 | TMDS D1- |
| 7 | TMDS D0+ |
| 8 | TMDS D0 Shield |
| 9 | TMDS D0- |
| 10 | TMDS CK+ |
| 11 | TMDS CK Shield |
| 12 | TMDS CK- |
| 13 | NC |
| 14 | NC |
| 15 | DDC CLK |
| 16 | DDC DATA |
| 17 | GND |
| 18 | +5V Power |
| 19 | HPD |
VGA Connector Description
Pin NO. | Symbol |
| 1 | RED |
| 2 | GREEN |
| 3 | BLUE |
| 4 | NC |
| 5 | GND |
| 6 | GND |
| 7 | GND |
| 8 | GND |
| 9 | +5V Power |
| 10 | GND |
| 11 | NC |
| 12 | DDC DATA |
| 13 | HSYNC |
| 14 | VSYNC |
| 15 | DDC CLK |
VGA1 Connector Description
Pin NO. | Symbol |
| 1 | +5V Power |
| 2 | VSYNC |
| 3 | HSYNC |
| 4 | GND |
| 5 | RED |
| 6 | GND |
| 7 | GREEN |
| 8 | GND |
| 9 | BLUE |
| 10 | GND |
| 11 | DDC DATA |
| 12 | DDC CLK |
DESCRIPTION
080T61SVHDVNSDC with a 46-pin header connector on board, supports up to Raspberry Pi 3B+ (contain Pi 4B) version. If customers choose Raspberry Pi 4 version, please note the interface is Micro HI; customers need to use the Micro HI to HI cable for HOTLCD this series products.
LCM-TFT080T61.pdf
