Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H043A8WVIST3C30
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Product Type: |
TFT Module |
Driver Chip Model: |
ST7701S |
Dimensions (mm): |
67.00x116.24x3.85 |
Effective Size (mm): |
56.16x93.60 |
Product Application: |
Instrumentation, MIPI Display |
Connection Method PIN Number: |
FPC-30PIN |
Product Type: |
TFT Module |
Driver Chip Model: |
ST7701S |
Dimensions (mm): |
67.00x116.24x3.85 |
Effective Size (mm): |
56.16x93.60 |
Product Application: |
Instrumentation, MIPI Display |
Connection Method PIN Number: |
FPC-30PIN |

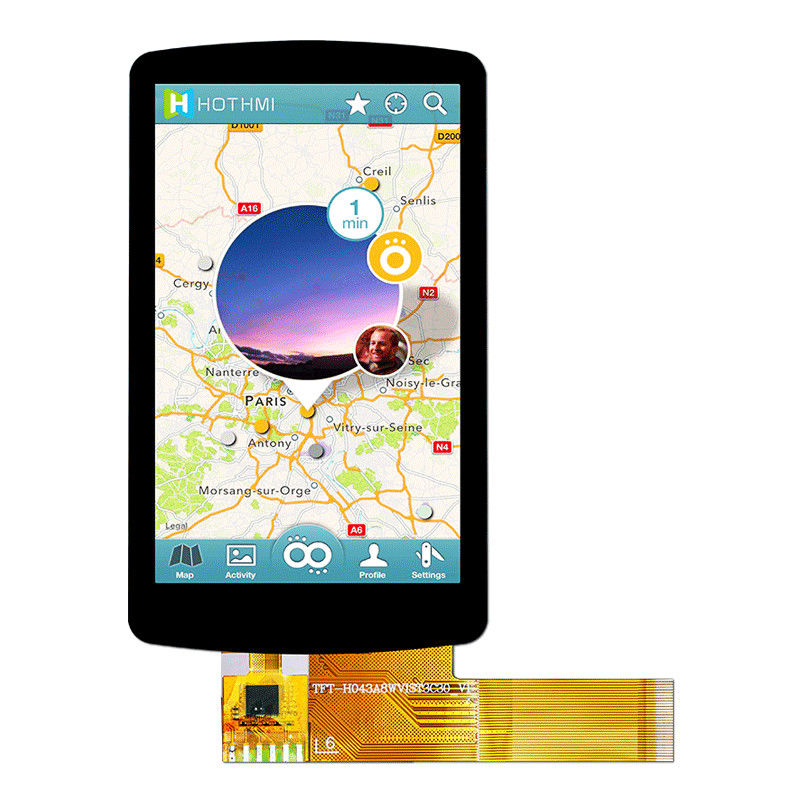

4.3 inch IPS Capacitive TFT Module/480x800 Pixels/TFT-H043A8WVIST3C30
Product parameters
Display Content - 480x800
Viewport Window Size - 4.3"
Display Size - 4.3"
Perspective - Full Perspective
Backlight brightness - 300cd/m2
Interface method - MIPI interface
Special Instructions - with CTP
Working temperature - -20~60℃
Supply Voltage - 3.3V
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H043A8WVIST3C30 | |
| Diagonal size | 4.3” | Inch |
| Resolution | 480x800 | Dot |
| Dimensions | 67.0x116.24x3.85 | mm |
| Active area (AA) | 56.16x93.6 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | Full View(U80/D80/R80/L80) | |
| Aspect ratio | 1:2 | |
| Backlight type | LED white | |
| TFT driver IC | ST7701S | |
| Brightness | 300 | cd/m2 |
| Operating temperature | -20~60℃ | ℃ |
| Storage temperature | -40~80℃ | ℃ |
