Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H043A13SVIST6N40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Product Type: |
TFT LCD Landscape |
Display Content: |
800x480 Resolution |
Dimensions (mm): |
105.5x67.2x4.55 |
Field Of View Window Size: |
4.3 Inches |
Effective Size (mm): |
95.04x53.856 |
Product Applications: |
Monitors, Smart Devices, LVDS Displays |
Driver IC Model: |
ST7262 |
Supply Voltage: |
3.3V |
Product Type: |
TFT LCD Landscape |
Display Content: |
800x480 Resolution |
Dimensions (mm): |
105.5x67.2x4.55 |
Field Of View Window Size: |
4.3 Inches |
Effective Size (mm): |
95.04x53.856 |
Product Applications: |
Monitors, Smart Devices, LVDS Displays |
Driver IC Model: |
ST7262 |
Supply Voltage: |
3.3V |

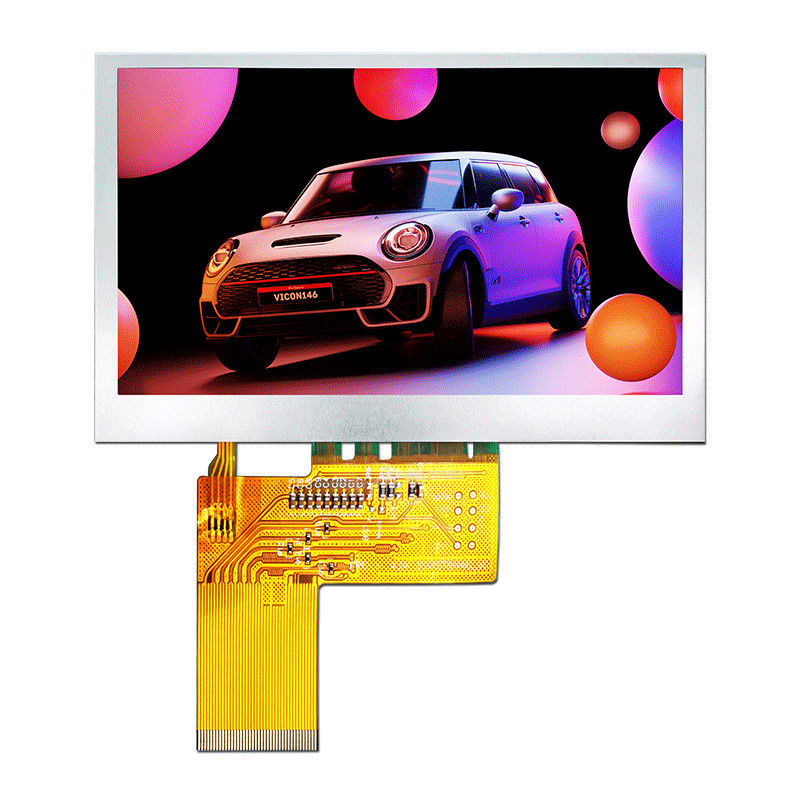

4.3-Inch Sunlight-Readable LVDS TFT Display/800x480 Pixels/TFT-H043A13SVIST6N40
Product parameters
Display Size - 4.3 inches
Perspective - Full Perspective
Backlight brightness - 600~1000cd/m2
Connection method PIN number - FPC-40PIN
Interface method - LVDS
Special Instructions - LVDS 3L/4L
Working temperature - -20~70℃
| parameter | Parameter Description | unit |
| TFT LCD | Standard TFT | |
| Diagonal inches | 4.3” | Inch |
| resolution | 800 × RGB × 480 (TFT) | dots |
| Dimensions | 105.50x67.15x3.05 | mm |
| Size (AA) area | 95.04x53.856 | mm |
| LCD specifications | TFT, white, transmissive | |
| Display perspective | 80/80/80/80 (IPS) | |
| aspect ratio | 1.1:2 | |
| Backlight specifications | LED, white | |
| TFT driver chip | ST7262 | |
| Touch glass type | None | |
| surface | Glossy | |
| Display brightness | 1000 | cd/㎡ |
| Operating temperature | -40~+80 | °C |
| Storage temperature | -40~+80 | °C |
