Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H043A10SVIST5R40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Product Type: |
TFT Landscape |
Dimensions (mm): |
105.5X67.2X4.55 |
Effective Size (mm): |
95.04X53.85 |
Viewport Window Size: |
4.3" |
Working Temperature: |
-40~80℃ |
Connection Method PIN Number: |
40PIN |
Product Type: |
TFT Landscape |
Dimensions (mm): |
105.5X67.2X4.55 |
Effective Size (mm): |
95.04X53.85 |
Viewport Window Size: |
4.3" |
Working Temperature: |
-40~80℃ |
Connection Method PIN Number: |
40PIN |

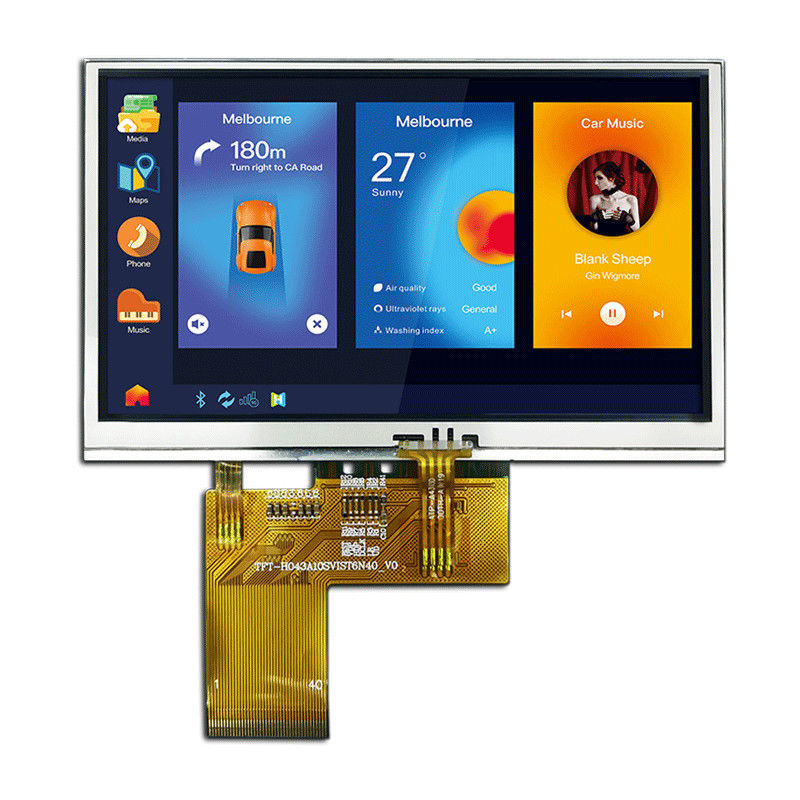

4.3 Inch Standard Resistive TFT Display/800x480 Dots/TFT-H043A10SVIST5R40
Product parameters
Display Content - 800X480
Display Size - 4.3"
Product application - industrial control equipment, vehicle instrumentation, ultra-wide temperature display
Perspective - Full Perspective
Backlight brightness - 500~850cd/m2
Interface - TTL18bit/24bit
Supply Voltage - 3.3V
Driver IC Model - ST7262
This 800x480 resolution LCD TFT is a standard display with 8-bit/16-bit Parallel interface, offering 16.7M colors and a FULL optimal view. This Liquid Crystal Display has a built-in ST7262 controller, FFC ZIF I/O connection, is RoHS compliant and has a 4-wire resistive touchscreen.
| project | Parameter Description | unit |
| TFT series | Standard TFT | |
| Diagonal size | 4.3” | Inch |
| Resolution | 800 × RGB × 480 (TFT) | dots |
| Dimensions | 105.50x67.15x4.25 | mm |
| Effective area (AA) | 96.7x55.5 | mm |
| LCD type | Horizontal TFT | |
| Display perspective | 80/80/80/80 (IPS) | |
| Aspect ratio | 1.1:2 | |
| Backlight type | LED, white | |
| TFT driver IC | ST7262 | |
| Touch panel | Resistive touch screen | |
| Surface | Glossy | |
| Brightness | 500 | cd/㎡ |
| Operating temperature | -40~+80 | °C |
| Storage temperature | -40~+80 | °C |
