Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: CTP-H043A8-V2-1
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Dimensions (mm): |
57.16x94.7 |
External Dimensions (mm): |
67.0x116.24x1.4 |
Touch Points: |
5-point Touch |
Driver Chip: |
GT911 |
Interface: |
I2C |
Light Transmittanc: |
≥85% |
Dimensions (mm): |
57.16x94.7 |
External Dimensions (mm): |
67.0x116.24x1.4 |
Touch Points: |
5-point Touch |
Driver Chip: |
GT911 |
Interface: |
I2C |
Light Transmittanc: |
≥85% |

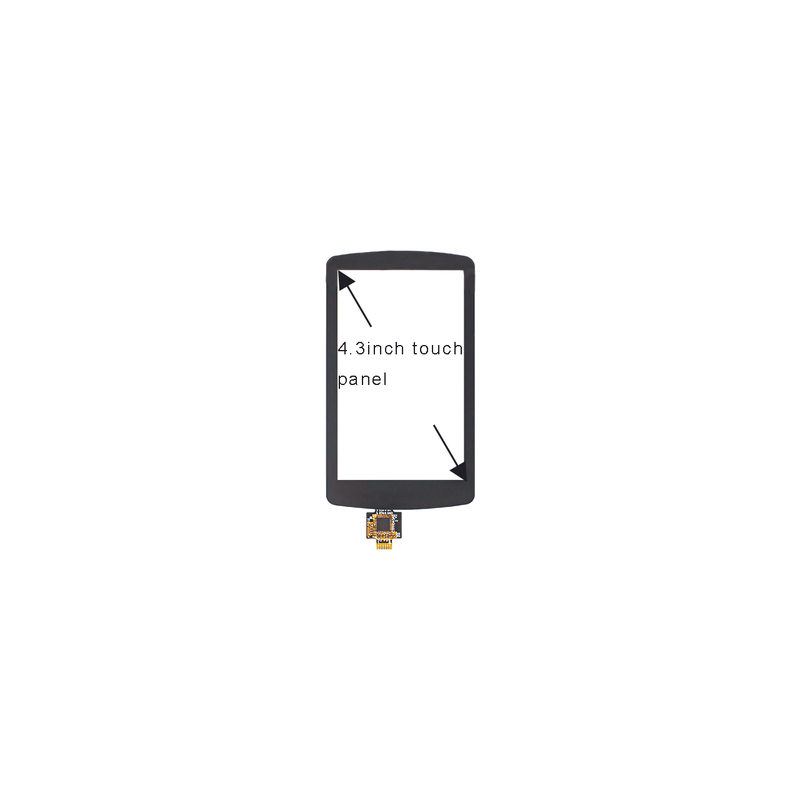

For industrial and consumer electronics applications demanding precise interaction and reliable performance, the CTP-H043A8 4.3-inch capacitive touchscreen, with its superior quality, is an ideal choice. It utilizes the high-end GT911 driver chip, enabling efficient and stable signal transmission via an I²C interface. Supporting 6-pin FFC solder connections, it simplifies integration and ensures device compatibility. Its core specifications include a 3.3V operating voltage and 1.8V logic level for optimal power efficiency and signal integrity. A wide operating temperature range of -20°C to 70°C and 90% humidity tolerance ensure it easily withstands harsh environmental challenges.
Exquisite craftsmanship and design: This version utilizes Corning Gorilla Glass 3+ tempered glass over a 0.55mm ITO sensor, precisely bonded with optical adhesive (LOCA), resulting in a total thickness of only 1.4mm ±0.1mm. Its 6H-grade surface hardness provides robust scratch resistance, while a light transmittance of ≥85% ensures crisp, vibrant images, delivering an immersive visual and touch experience. Structurally, the SUS201 stainless steel frame and double-sided conductive fabric with adhesive enhance the body's strength and optimize electromagnetic shielding. Precision silkscreen printing and a tear-resistant design on the back further simplify production and assembly. The panel features a curved profile, tailored to user requirements, creating a sophisticated and aesthetically pleasing appearance. The finished product, when paired with a TFT LCD.
| ITEM | Parameter description | Unit |
| CTP model | CTP-H043A8-V2-1 | |
| Viewing window size (mm) | 57.16x94.7 | Mm |
| Appearance size (mm) | 67.0x116.24x1.4 | mm |
| Driver chip | GT911 | |
| Structure | G+G | |
| Interface | I2C | |
| Cover shape | uXTouch | |
| Connection method | 6 PIN FPC plug | |
| Surface hardness | H6 | |
| Transmittance | ≥85％ | |
| Operating voltage | +3.3V | V |
| Operating temperature | -20℃ ～ 70℃ | ℃ |
