Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: CTP-H043A10-V0
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Dimensions (mm): |
105.2x67.0x1.6 |
Window Size (mm): |
96.04x54.86 |
Number Of Touch Points: |
5-point Touch |
Control Chip: |
GT911 |
Interface: |
I2C |
Hardness: |
6H |
Transmittance: |
≥85% |
Dimensions (mm): |
105.2x67.0x1.6 |
Window Size (mm): |
96.04x54.86 |
Number Of Touch Points: |
5-point Touch |
Control Chip: |
GT911 |
Interface: |
I2C |
Hardness: |
6H |
Transmittance: |
≥85% |

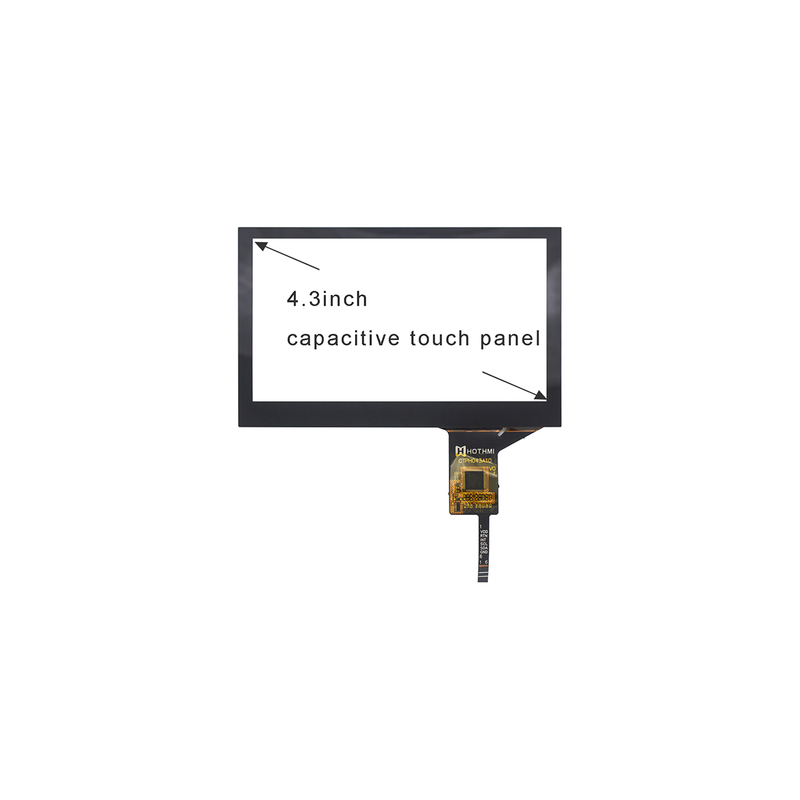

Bring an excellent touch experience to your 4.3-inch TFT LCD screen! The size of this 4.3-inch PCAP cover is customized for the user's product structure. Users can also selectively print customized colors, patterns, and panels or perforated panels of various shapes on the surface. This touch screen and TFT display can choose Optical bonding or frame bonding.
The G+G (double glass) structure of this 4.3-inch PCAP ensures durability and 85% high light transmittance, the picture is transparent and bright, and the overall power consumption is optimized. Equipped with GT911 chip, it achieves smooth 5-point touch response, and the I²C interface is stable and reliable. In terms of connection, the FPC of this touch screen comes with a 6PIN connector. Users can easily assemble and disassemble the touch panel and TFT display, and can also choose FFCs of different lengths for connection according to the actual situation of the display and the main control board. The flexible design is full of creativity.
We provide a full range of customized services: from interface definition, connection method (plug/weld/connector), process structure (G+G/G+FF/G+F/P+G/P+F), to cover shape (size, 2.5D fillet, etc.), hardness level (3H/6H/7H/9H) and surface coating (AF anti-fingerprint/AG anti-glare/AR anti-reflection), and even designated brand cover glass (such as Panda, Corning Gorilla), all can be achieved on demand.
We also provide users with a version with TFT LCD module: HTM-H043A10-MIPI-A06, and smart TFT LCD: HTM-H043A10-A5-UART.
| ITEM | Parameter description | Unit |
| CTP model | CTP-H043A10-V0 | |
| Viewing window size (mm) | 96.04x54.86 | Mm |
| Appearance size (mm) | 105.2x67.0x1.6 | mm |
| Driver chip | GT911 | |
| Structure | G+G | |
| Interface | I2C | |
| Cover shape | aTouch | |
| Connection method | 6 PIN FPC plug | |
| Surface hardness | H6 | |
| Transmittance | ≥85％ | |
| Operating voltage | +3.3V | V |
| Operating temperature | -20℃ ～ 70℃ | ℃ |
