Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H043A22WQINV8C40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
480x272 Dots |
Dimensions (mm): |
105.46 X 67.09 X 4.5 |
Field Of View Window Size: |
Full Viewing Angle |
Backlight Brightness: |
800cd/m2 |
Driver Chip: |
NV3041 |
Interface: |
SPI |
Operating Temperature:: |
-30~80℃ |
Display Content: |
480x272 Dots |
Dimensions (mm): |
105.46 X 67.09 X 4.5 |
Field Of View Window Size: |
Full Viewing Angle |
Backlight Brightness: |
800cd/m2 |
Driver Chip: |
NV3041 |
Interface: |
SPI |
Operating Temperature:: |
-30~80℃ |

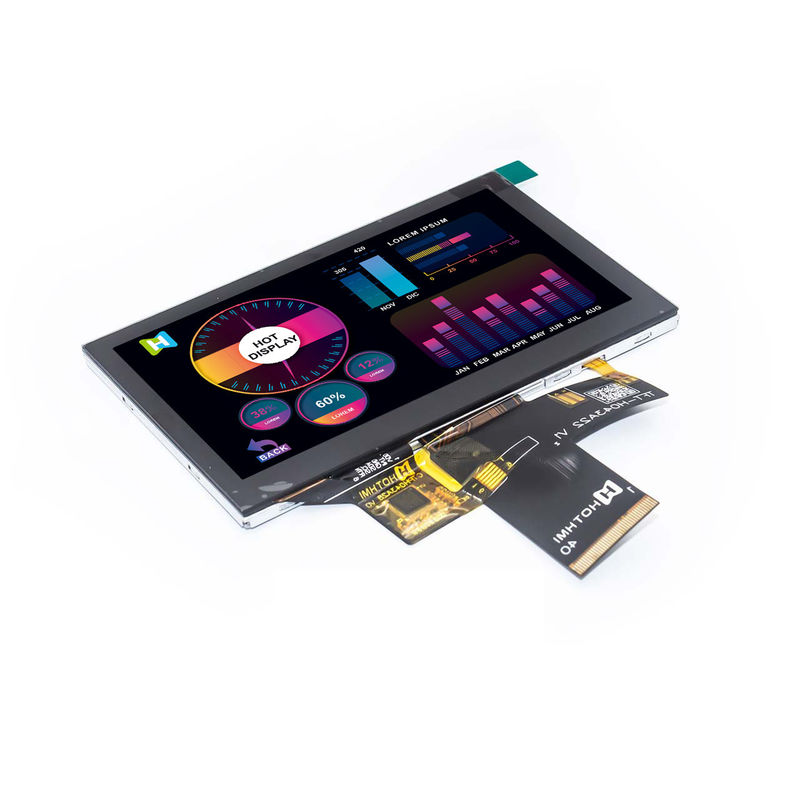

The 4.3inch 480x272 resolution IPS TFT display (model: TFTH043A22WQINV8C40) is a versatile and highperformance display module designed for industrial and embedded applications. Below is a detailed breakdown of its features and capabilities:
Key Features:
1. Display Specifications:
Size: 4.3 inches
Resolution: 480x272 pixels
Panel Type: IPS (InPlane Switching) for wide viewing angles
Brightness: 800 cd/m² (can be customized for higher brightness by adjusting backlight configuration)
Operating Temperature: 30°C to +80°C (wide temperature range for industrial use)
Controller: NV3041 (supports SPI interface)
Touchscreen: Capacitive touch (provides smooth and responsive touch input)
2. Interface:
Connection: FPC (Flexible Printed Circuit) plug
Interface: SPI (Serial Peripheral Interface)
Compatibility: Works with microcontrollers like C8051, Arduino, and STM32
FPC Connector: Requires an optional solder FPC connector for easy installation and removal
3. Viewing Experience:
Fullviewing color display with excellent color reproduction and clarity.
IPS technology ensures consistent and accurate colors from wide viewing angles.
4. Customization:
Brightness can be increased by adjusting the backlight arrangement and quantity.
RoHS compliant, meeting environmental and safety standards.
5. Development Support:
Detailed tutorials, interface information, demo code, and development kits are available upon request.
Suitable for developers working with C8051, Arduino, STM32, and other microcontroller platforms.
Applications:
Industrial control systems
Embedded systems
IoT devices
Medical equipment
Automotive displays
Consumer electronics
Additional Notes:
The display is designed for ease of integration, with clear documentation and support materials.
The capacitive touch feature enhances user interaction, making it ideal for modern touchbased applications.
The wide operating temperature range ensures reliability in harsh environments.
If you need further assistance, tutorials, or customization options, feel free to contact the supplier for detailed support.
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H043A22WQINV8C40 | |
| Diagonal size | 4.3” | Inch |
| Resolution | 480x272 | Dot |
| Dimensions | 105.46(W)x67.09(H)x4.5(D) | mm |
| Active area (AA) | 95.04x53.86 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | Full View(U85/D85/R85/L85) | |
| Aspect ratio | 3:2 | |
| Backlight type | LED white | |
| TFT driver IC | NV3041 | |
| Brightness | 800 | cd/m2 |
| Operating temperature | -30~80℃ | ℃ |
| Storage temperature | -30~85℃ | ℃ |
