Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H043A7WVIST5N40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Product Type: |
TFT Module |
Display Content: |
480x800 Dots |
Dimensions (mm): |
60.86x102.57x2.5 |
Viewport Window Size: |
4.3 Inch |
Effective Size (mm): |
56.16x93.6 |
Product Application: |
Intelligent Information Collector Instrument |
Product Type: |
TFT Module |
Display Content: |
480x800 Dots |
Dimensions (mm): |
60.86x102.57x2.5 |
Viewport Window Size: |
4.3 Inch |
Effective Size (mm): |
56.16x93.6 |
Product Application: |
Intelligent Information Collector Instrument |

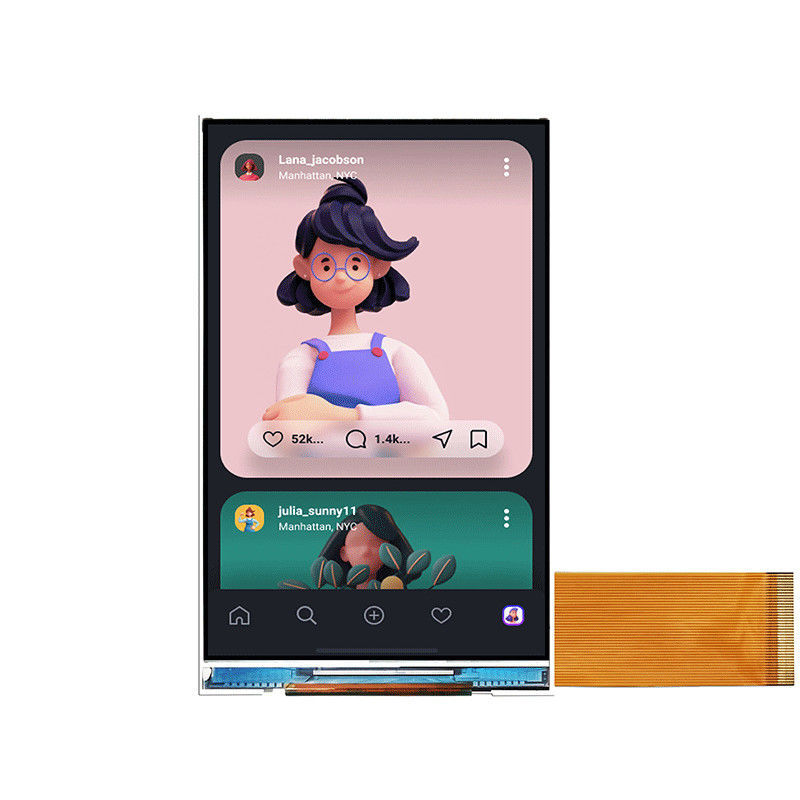

4.3 Inch IPS SPI+RGB Interface TFT LCD Module 480x800 Resolution/TFT-H043A7WVIST5N40
Product parameters
Display Size - 4.3 inch
Perspective - Full Perspective
Backlight brightness - 500cd/m2
Connection method PIN number: FPC-40PIN
Interface mode: RGB
Working temperature: -20~70℃
Supply voltage: 3.3V
Driver chip model: ST7701S
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H043A7WVIST5N40 | |
| Diagonal size | 4.3” | Inch |
| Resolution | 480x800 | Dot |
| Dimensions | 60.86X102.57X2.3 | mm |
| Active area (AA) | 56.16X93.6 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | Full View(U80/D80/R80/L80) | |
| Aspect ratio | 2:3 | |
| Backlight type | LED white | |
| TFT driver IC | ST7701S | |
| Brightness | 800 | cd/m2 |
| Operating temperature | -20~60℃ | ℃ |
| Storage temperature | -40~80℃ | ℃ |
DESCRIPTION
TFT-H043A7WVIST5N40 is a 4.3 inch IPS TFT-LCD display module; made of resolution 480 x 800 pixels. H043A7 module supports SPI+RGB interface (2 lanes), it featured with IPS panel which is having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 720 (typical value), brightness 550 nits (typical value), Anti-Glare surface panel.
This 4.3 inch MIPI LCD display is portrait mode; it integrated driver IC ST7701S on module, interface supply voltage range 2.8V to 3.3V. This TFT module can be operating at temperatures from -20℃ to +60℃; its storage temperatures range from -30℃ to +80℃.
