Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H030A8ZCISTKN40
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
268x800 Dot Matrix |
Dimensions (mm): |
26.42x79.85x1.7 |
Field Of View Window Size: |
Full View |
Backlight Brightness: |
1000cd/m2 |
Driver Chip: |
ST7701S |
Interface: |
RGB +9b_3SPI |
Operating Temperature:: |
-30°C~80 °C |
Display Content: |
268x800 Dot Matrix |
Dimensions (mm): |
26.42x79.85x1.7 |
Field Of View Window Size: |
Full View |
Backlight Brightness: |
1000cd/m2 |
Driver Chip: |
ST7701S |
Interface: |
RGB +9b_3SPI |
Operating Temperature:: |
-30°C~80 °C |

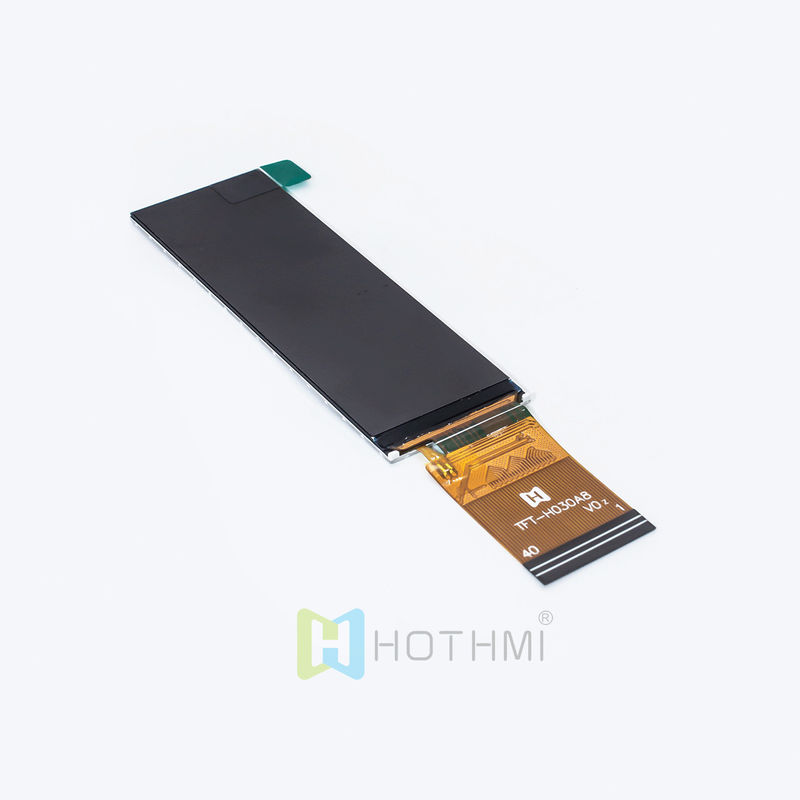

3.0 inch bar TFT LCD display module/IPS full viewing angle/268x800 dots/RGB+SPI interface/ST7701S/sunlight visible/wide temperature
TFT-H030A8ZCISTKN40 | 3.0" IPS TFT LCD Display | TFT LCD Display Manufacturer | 268x800 resolution | -30℃~80℃ | For Instrumentation | Interface RGB +9b_3SPI | Wide Temperature | IC ST7701S
Introducing our cutting-edge TFT-H030A8ZCISTKN40 3.0 Inch IPS TFT Display Panel, meticulously crafted for precision and performance in instrumentation applications. Elevate your visual experience with a display that seamlessly combines technological excellence with wide temperature adaptability.
Boasting a remarkable 268x800 resolution, every detail comes to life on this vibrant TFT LCD screen. Witness clarity and crispness like never before as your data, graphs, and measurements unfold in stunning precision.
Designed to endure even the most challenging environments, this display panel defies temperature extremes with an impressive operating range of -30℃ to 80℃. Whether you're working in frigid cold or scorching heat, our display maintains its optimal functionality, ensuring reliability and accuracy in critical situations.
Experience seamless communication through the RGB +9b_3SPI interface, providing effortless connectivity that enhances the efficiency of your instrumentation tasks. The inclusion of the advanced ST7701S IC further elevates performance, ensuring smooth operations and rapid data processing.
Immerse yourself in a world of possibilities as this TFT LCD Display Manufacturer empowers your instrumentation endeavors. Unleash the power of technology with a display that doesn't just meet standards; it sets new benchmarks for excellence. Trust in our commitment to quality, precision, and innovation as you equip your instruments with the TFT-H030A8ZCISTKN40 - where cutting-edge meets rugged reliability.
| parameter | Parameter Description | unit |
| TFT LCD | Standard strip TFT | |
| Diagonal inches | 3.0” | Inch |
| resolution | 268 × RGB × 800 (TFT) | dots |
| Dimensions | 26.42x79.85x1.7 | mm |
| Size (AA) area | 24.12x72.0 | mm |
| LCD specifications | TFT, white, transmissive | |
| Display perspective | IPS(U80/D80/L80/R80) | |
| aspect ratio | 3:1 | |
| Backlight specifications | LED, white | |
| TFT driver chip | ST7701S | |
| Touch glass type | None | |
| surface | Anti-glare | |
| Display brightness | 1000 | cd/㎡ |
| Operating temperature | -30~+80 | °C |
| Storage temperature | -40~+90 | °C |
