Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H035A1QVIST6C54
Payment & Shipping Terms
Product Application: |
Industrial Control Equipment/Vehicle Instrumentation |
Field Of View Window Size (mm): |
3.5" |
Effective Size Mm: |
70.08x52.560 |
Dimensions (mm): |
76.84x63.84x4.55 |
Driver IC Model: |
ST7272A |
CTP Driver IC: |
FT5216 |
Product Application: |
Industrial Control Equipment/Vehicle Instrumentation |
Field Of View Window Size (mm): |
3.5" |
Effective Size Mm: |
70.08x52.560 |
Dimensions (mm): |
76.84x63.84x4.55 |
Driver IC Model: |
ST7272A |
CTP Driver IC: |
FT5216 |

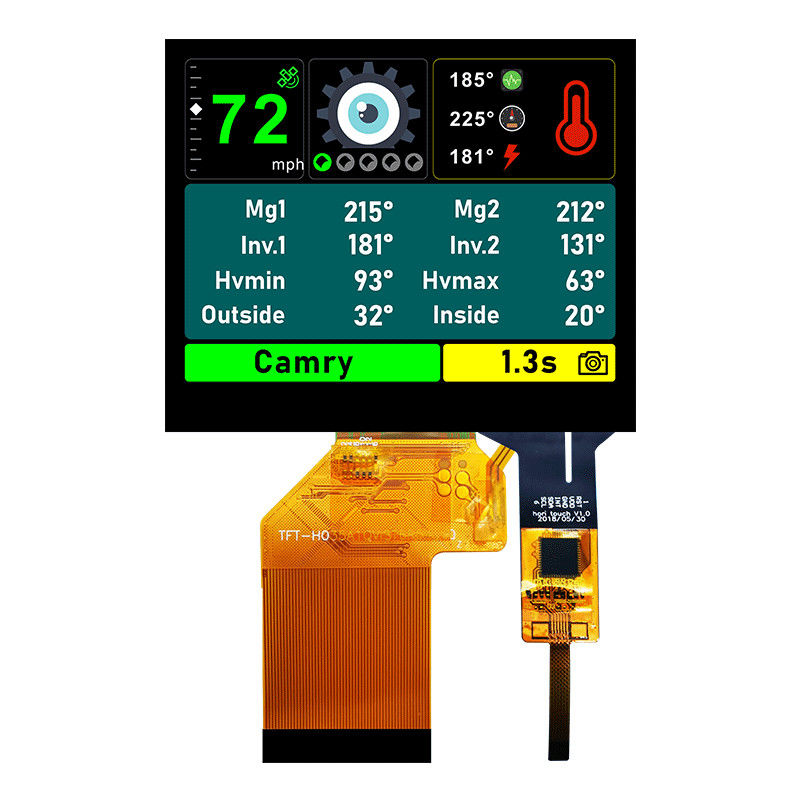

3.5" TFT Touch Screen/3.5" TFT LCD Screen 320x240/TFT-H035A1QVIST6C54
Product parameters
Product Type - TFT Landscape
Display Content - 320x240
Display Dimensions (mm) - 3.5"
Perspective - Full Perspective
Backlight brightness - 600cd/m2
Connection method PIN number - FPC-54PIN
Interface - RGB+SPI
Special Instructions - TTL8/24-BIT
Working temperature - (-30~85℃)
Supply Voltage - 3.3v
General Feature:
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H035A1QVIST6C54 | |
| Diagonal size | 3.5” | Inch |
| Resolution | 320x240 | Dot |
| Dimensions | 76.84X63.84X4.65 | mm |
| Active area (AA) | 70.08X52.560 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | IPS Full View | |
| Aspect ratio | 1:0.85 | |
| Backlight type | white LED | |
| TFT driver IC | ST7272A | |
| Brightness | 600cd/m2 | cd/m2 |
| Operating temperature | -30~85℃ | ℃ |
| Storage temperature | -40~85℃ | ℃ |
Product Description
Product Description The TFT-H035A1QVIST6C54 is a 3.5-inch wide temperature IPS TFT-LCD monitor with a projected capacitive touch screen with a resolution of 320x240 pixels. The module has built-in ST7272A driver IC and supports RGB+SPI interface. TFT-H035A1QVIST6C54 adopts IPS panel, which has the advantage of wider viewing angle, left: 80/right: 80/up: 80/down: 80 degrees (typical), contrast ratio 600:1 (typical), brightness 600 nits (typical) value), glare panel, 4:3 aspect ratio. Support I2C interface and multi-touch function. The H035A1 model features a projected capacitive touch panel (CTP). The supply voltage (VCC) of the TFT-H035A1QVIST6C54 is 3.0V to 3.6V, with a typical value of 3.3V. It can work at temperatures from -30°C to +85°C and storage temperatures from -30°C to +85°C.
