Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: CTPH035C19_V2-4
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Type: |
3.5-inch Capacitive Touch Screen |
Window Size (mm): |
49.56x73.99 |
Cover Size(mm): |
54.34x82.84x1.85 |
Number Of Touch Points: |
5-point Touch |
Driver Chip: |
GT911 |
Interface: |
I2C |
Transmittance: |
≥83% |
Type: |
3.5-inch Capacitive Touch Screen |
Window Size (mm): |
49.56x73.99 |
Cover Size(mm): |
54.34x82.84x1.85 |
Number Of Touch Points: |
5-point Touch |
Driver Chip: |
GT911 |
Interface: |
I2C |
Transmittance: |
≥83% |

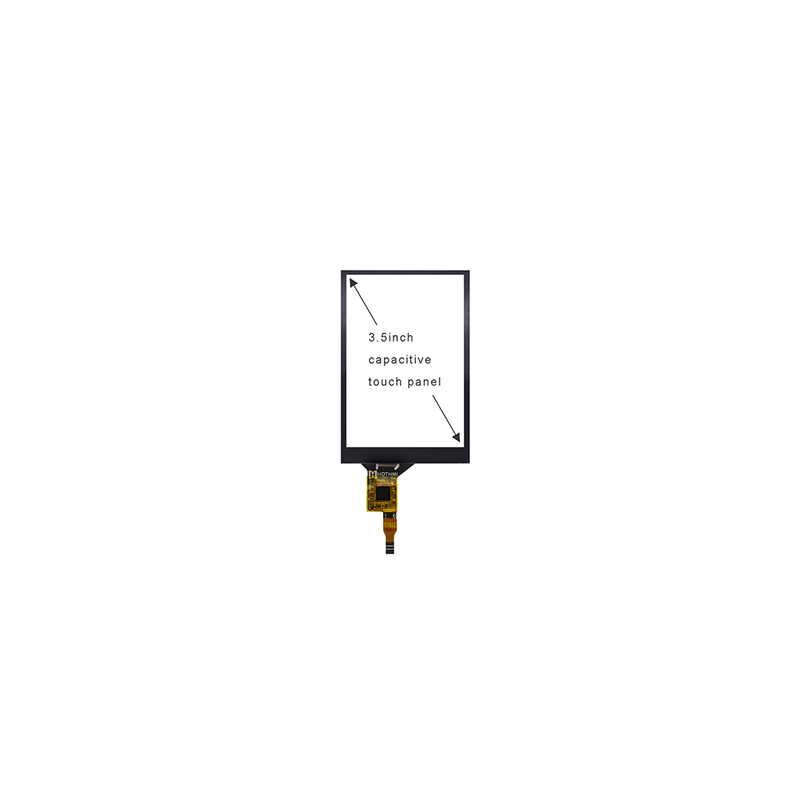

This customized 3.5-inch capacitive touch screen adopts G+G (double-layer glass) full-fit structure, with industrial-grade reliability as the core design concept. Its outer tempered cover glass (thickness 0.55~10.0mm customizable) and inner ITO sensor glass are seamlessly bonded by optical glue, and the light transmittance is increased to more than 90%, effectively eliminating air layer reflection and isolating water vapor erosion. The cover surface can be optionally equipped with AG anti-glare, AR anti-reflection or AF anti-fingerprint coating, with dark/color ink silk-screen border to meet the aesthetic and functional requirements of the device appearance.
This model of touch panel uses GT911 control chip, 5-point touch, and communicates through IIC interface. It brings users a smooth and unobstructed experience. In terms of reconnection, this touch screen provides a 6PIN plug-in FPC, and the cable lead-out position is horizontal, so users can easily assemble and disassemble the touch panel and TFT display.
At the same time, we provide customized services for this touch panel. Whether it is the interface, connection method (plug/weld/connector), process structure (G+G/G+FF/G+F/P+G/P+F), or the size of the cover, hardness (3H/6H/7H/9H) and surface treatment (AF/AG/AR), we can provide you with one by one.
Recommended matching TFT LCD display: 3.5-inch TFT LCD.
| ITEM | Parameter description | Unit |
| CTP model | CTPH035C19_V2-4 | |
| Viewing window size (mm) | 49.56x73.99 | Mm |
| Appearance size (mm) | 54.34x82.84x1.85 | mm |
| Driver chip | GT911 | |
| Structure | G+G | |
| Interface | I2C | |
| Cover shape | aTouch | |
| Connection method | 6 PIN FPC plug | |
| Surface hardness | H6 | |
| Transmittance | ≥83％ | |
| Operating voltage | +3.3V | V |
| Operating temperature | -20℃ ～ 70℃ |
℃ |
