Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H035A11HVTST5C15
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Product Type: |
TFT Vertical Screen |
Display Content: |
320x480 |
Dimensions (mm): |
54.66 X 83.0 X 3.80 |
Viewport Window Size: |
3.5" |
Effective Size (mm): |
48.96 X 73.44 |
Driver Chip Model: |
ST7796 |
Product Type: |
TFT Vertical Screen |
Display Content: |
320x480 |
Dimensions (mm): |
54.66 X 83.0 X 3.80 |
Viewport Window Size: |
3.5" |
Effective Size (mm): |
48.96 X 73.44 |
Driver Chip Model: |
ST7796 |

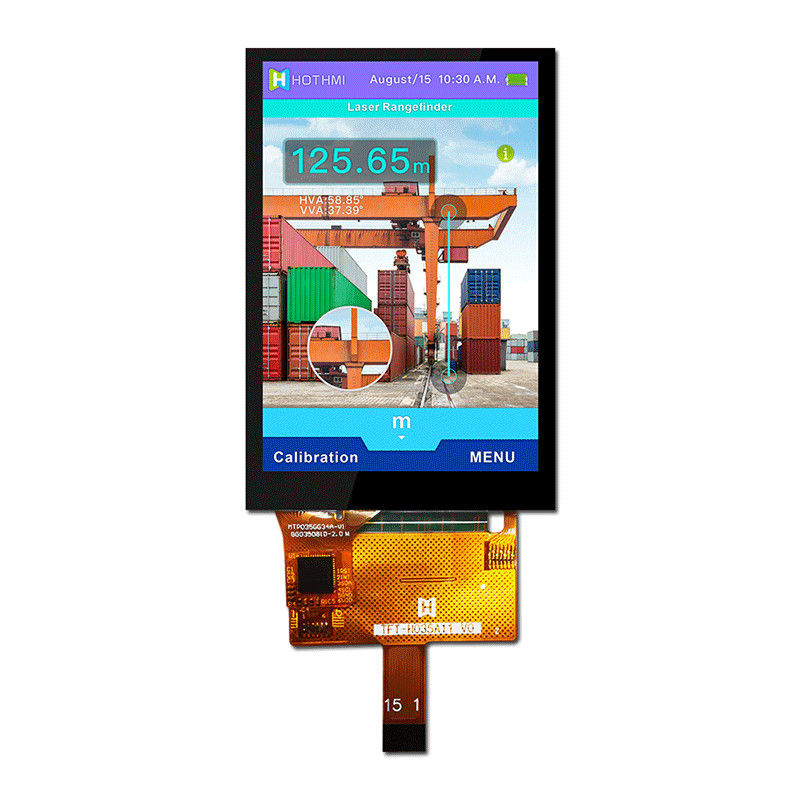

3.5 Inch 320x480 SPI IPS TFT LCD Module With CTP/Sunlight Readable/TFT-H035A11HVTST5C15
Product parameters
Display Size - 3.5"
Product Application - Outdoor Instrumentation
Perspective - Full Perspective
Backlight type or brightness - 500cd/m2
Connection method PIN number - 15PIN
Interface - SPI-4L
Special Instructions - Capacitive Touch with CTP
Working temperature - (-20~70℃)
Supply Voltage - 3.3V
Product Description
Product Description The TFT-H035A11HVTST5C15 is a 3.5-inch wide temperature IPS TFT-LCD monitor with a projected capacitive touch screen with a resolution of 320X480 pixels. The module has built-in ST7796 driver IC and supports SPI interface. TFT-H035A11HVTST5C15 adopts IPS panel, which has the advantage of wider viewing angle, left: 80/right: 80/up: 80/down: 80 degrees (typical value), contrast ratio 800:1 (typical value), brightness 400 nits (typical value) value), glare panel, 1:1.5 aspect ratio. Support I2C interface and single touch function. The H035A11 model has a projected capacitive touch panel (PCAP), and the power supply voltage (VCC) of the TFT-H035A11HVTST5C15 is 3.3V. It can operate at temperatures from -20°C to +70°C and storage temperatures from -30°C to +80°C.
