Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H035A8VGIST6N30
Payment & Shipping Terms
Minimum Order Quantity: 2
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Product Type: |
TFT |
Viewport Window Size: |
3.5" |
Dimensions (mm): |
74.5x62.4x2.37 |
Backlight Type Or Brightness: |
650cd/m2 |
Connection Method PIN Number: |
FPC-30PIN |
Operating Temperature: |
-20~70℃ |
Product Type: |
TFT |
Viewport Window Size: |
3.5" |
Dimensions (mm): |
74.5x62.4x2.37 |
Backlight Type Or Brightness: |
650cd/m2 |
Connection Method PIN Number: |
FPC-30PIN |
Operating Temperature: |
-20~70℃ |

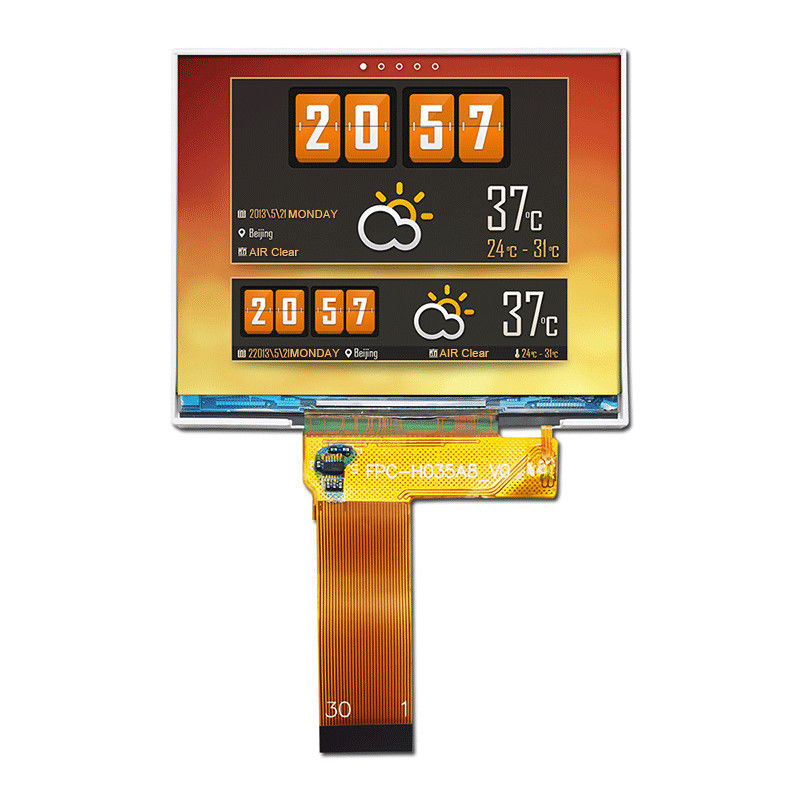

3.5 Inch TFT LCD Screen Display Module/640x480 Pixels/TFT-H035A8VGIST6N30
Product parameters
Display Content - 640x480
Display Size - 3.5"
Effective Size (mm) - 70.08x52.56
Product Application - Instrumentation
Perspective - Full view
Interface method - MIPI
Supply Voltage - 2.8v
General Feature:
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H035A8VGIST6N30 | |
| Diagonal size | 3.5” | Inch |
| Resolution | 640x480 | Dot |
| Dimensions | 74.5x62.4x2.37 | mm |
| Active area (AA) | 70.08x52.56 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | Full View(U80/D80/R80/L80) | |
| Aspect ratio | 3:2 | |
| Backlight type | LED white | |
| TFT driver IC | ST7703 | |
| Brightness | 650 | cd/m2 |
| Operating temperature | -30~80℃ | ℃ |
| Storage temperature | -30~80℃ | ℃ |
Product Description
Product Description The TFT-H035A8VGIST6N30 is a 3.5-inch full-color TFT LCD module with a resolution of 640x480 pixels and an aspect ratio of 1.25:1. The TFT module adopts ST7703 driver IC and supports MIPI interface. The TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/up 80 degrees/down 80 degrees), a typical contrast ratio of 800:1, and a module brightness of up to 650 nits (typical). The working temperature range of the module is -20℃~+70℃, and the storage temperature range is -30℃~+80℃.
