Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H016A01ZGIST4N20
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Product Type: |
Circular TFT |
Dimensions (mm): |
400x400 |
Effective Size (mm): |
39.84x39.84 |
Product Application: |
Smart Home |
Perspective: |
Full Perspective |
Display Content: |
400x400 |
Display Size: |
1.6" |
Product Type: |
Circular TFT |
Dimensions (mm): |
400x400 |
Effective Size (mm): |
39.84x39.84 |
Product Application: |
Smart Home |
Perspective: |
Full Perspective |
Display Content: |
400x400 |
Display Size: |
1.6" |

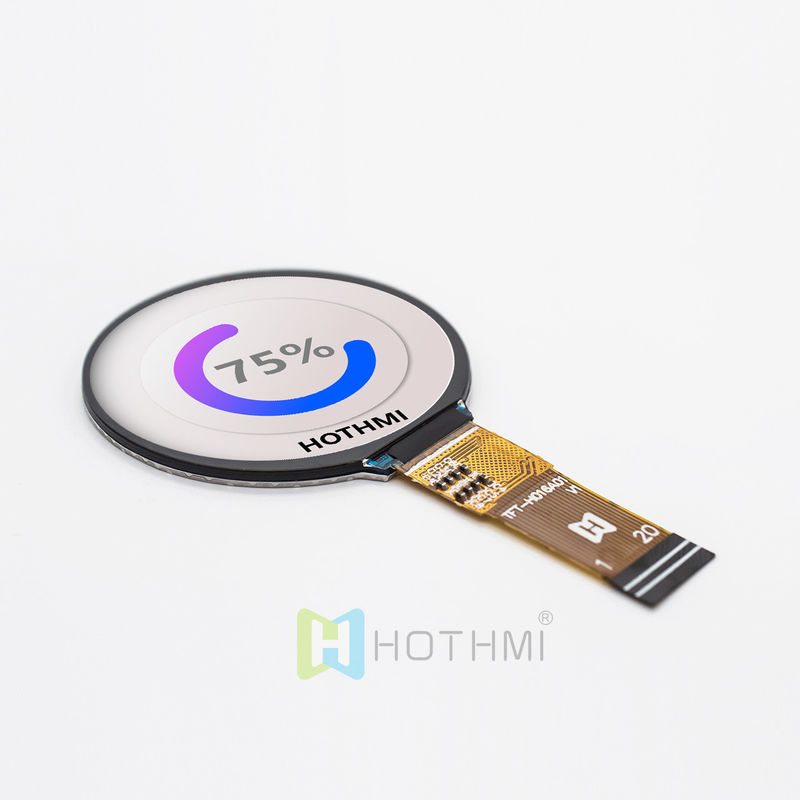

This 1.6-inch circular TFT LCD display TFT-H016A01ZGIT47N20 has a resolution of 400x400, built-in ST7797 controller, optional touch screen, high image quality, IPS wide viewing angle, high resolution, and 450cd/m2 brightness, giving this display a high-quality viewing effect.
Supports MIPI interface, , FPC connection (customizable connector).
This 1.6-inch circular TFT LCD display adopts MIPIhigh-speed mode transmission and supports low-power mode switching. The product has passed reliability tests such as high temperature, low temperature, high humidity, impact, vibration, and electrostatic discharge, and is suitable for industrial and consumer electronics fields. The initialization code includes power on reset, register configuration, and display parameter settings to ensure fast startup and stable operation.
All materials comply with environmental requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for microcontroller development platforms such as 8051 PIC, AVR, ARDUINO, ARM, Raspberry Pi, etc. This 1.6-inch circular TFT LCD display has a wide range of applications, including wearable devices, handheld instruments, home appliances, and more. We also have other series of models for circular display screens in related sizes: circular TFT LCD .
of design, performance, and reliability makes it a great choice for a variety of applications. Don't miss out on this excellent display solution!
| parameter | Parameter Description | unit |
| TFT LCD | Standard TFT | |
| Diagonal inches | 1.6 " | Inch |
| resolution | 400 x RGB x 400 (TFT) | dots |
| Dimensions | 42.14x44.34x1.95 | mm |
| Size (AA) area | 39.84x39.84 | mm |
| LCD specifications | TFT, White, transparent | |
| Display perspective | 80/80/80/80 (IPS) | |
| aspect ratio | 1: 1 | |
| Backlight specifications | LED, white | |
| TFT driver chip | ST7797 | |
| Touch glass type | nothing | |
| surface | Anti-Glare | |
| Display brightness | four hundred and fifty | cd/㎡ |
| Operating temperature | -30~+80 | °C |
| Storage temperature | -30~+80 | °C |
