Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H013A1HQIST3N16
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
320x320 Dots |
Dimensions (mm): |
36.12x39.16x1.5 |
Field Of View Window Size: |
Full View |
Backlight Brightness: |
250cd/m2 |
Driver Chip: |
ST7796DW |
Interface: |
MIPI |
Operating Temperature:: |
-20~70℃ |
Display Content: |
320x320 Dots |
Dimensions (mm): |
36.12x39.16x1.5 |
Field Of View Window Size: |
Full View |
Backlight Brightness: |
250cd/m2 |
Driver Chip: |
ST7796DW |
Interface: |
MIPI |
Operating Temperature:: |
-20~70℃ |

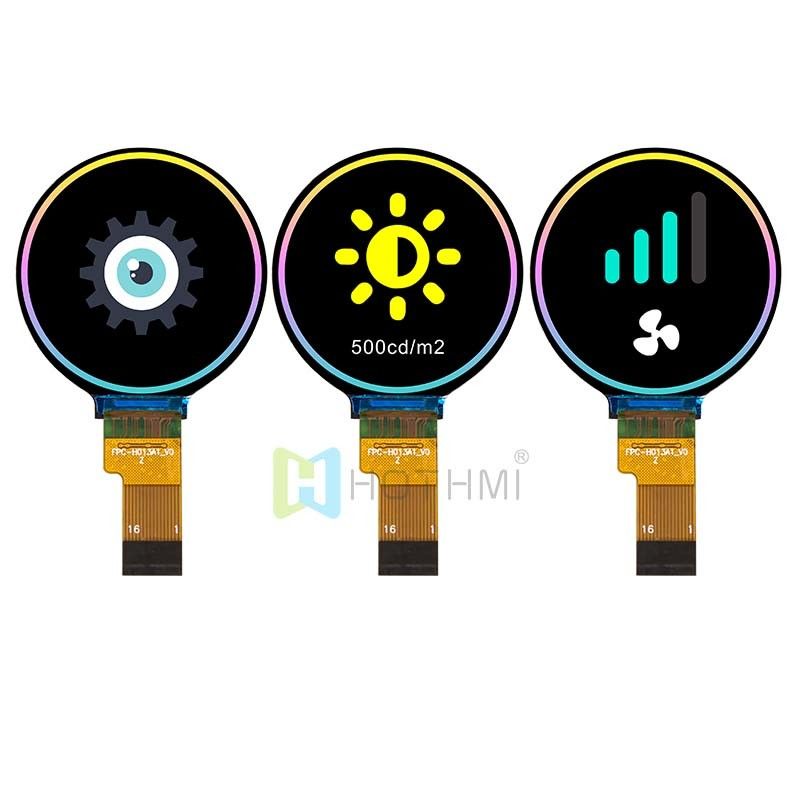

The 1.3 inch TFT LCD display TFT-H013A1HQIST3N16 is a circular IPS TFT-LCD screen with a display diameter of 1.3 inches and a resolution of 320x320 pixels. This circular TFT display consists of an IPS TFT-LCD panel with a built-in ST7796DW driver IC that communicates through the MIPI interface.
This 1.3 inch TFT LCD display adopts IPS panel with higher contrast, pure black background when display or pixel is off, left: 80 / right: 80 / top: 80 / bottom: 80 degrees (typical) wider viewing angle, contrast ratio 1,000 :1 (typ), brightness 350 nits (typ), anti-glare surface panel. If customers need capacitive touch screen, please choose model TFT-H013A1HQIST2C16.
The LCM's supply voltage is 1.8V to 2.8V, with a typical value of 2.8V. The operating temperature is -20℃ to +70℃, and the storage temperature is -20℃ to +80℃. Display modules are suitable for compact devices such as smart meters, Android/RK motherboard,wearables and meter applications. They are also ideal for home automation products, white goods and video systems.
|
