Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H013A2QQIST3N10
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Product Application: |
Smart Wear, Instrumentation |
Display Size: |
1.3" |
Effective Size (mm): |
23.4x23.4 |
Backlight Type Or Brightness: |
350cd/m2 |
Operating Temperature: |
-20~70℃ |
Product Application: |
Smart Wear, Instrumentation |
Display Size: |
1.3" |
Effective Size (mm): |
23.4x23.4 |
Backlight Type Or Brightness: |
350cd/m2 |
Operating Temperature: |
-20~70℃ |

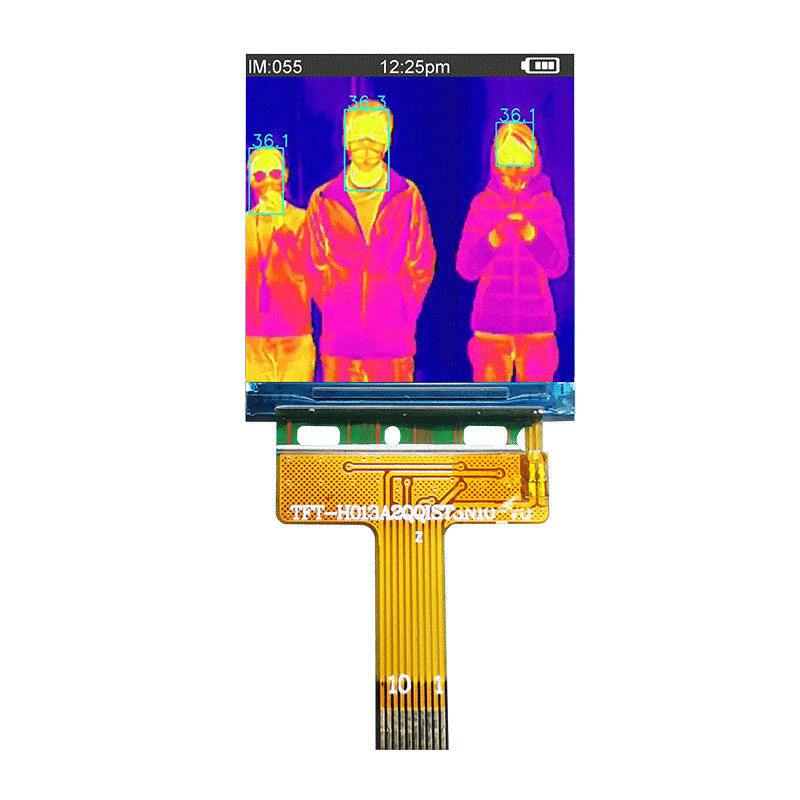

1.3 inch IPS TFT Display/240x240 Pixels/TFT-H013A2QQIST3N10
TFT-H013A2QQIST3N10 | 1.3 inch TFT LCD color display module | 240X240 SPI square Display
This 1.3-inch TFT LCD screen TFT-H013A2QQIST3N10 is a 1.3-inch TFT LCD square display module with 240x240 pixel resolution and normally black transmissive design. The module supports full viewing angle and is suitable for embedded devices with strict space requirements.
This module is equipped with ST7789H2 driver IC, adopts four-wire SPI interface, supports operating temperature range of -20℃ to 70℃ and storage temperature range of -30℃ to 80℃. Typical brightness of 350cd/m² and contrast make it a good partner for many industrial products. Moderate response time meets the needs of clear dynamic display.
This 1.3-inch TFT LCD screen provides detailed initialization code and supports sleep mode to reduce power consumption. In terms of reliability, it has passed many rigorous tests: high temperature operation (60℃/120h), wet and hot operation (60℃/90%RH/120h), thermal shock (-30℃↔80℃/100 cycles) and ESD protection (contact ±4kV/air ±8kV). When using, be careful to avoid mechanical shock, electrostatic interference and long-term display of static images (it is recommended that the fixed image does not exceed 2 minutes) to prevent residual images. This module is suitable for scenes such as industrial control and portable devices.
This display is a version with FPC soft cable and does not contain a driver board. Developers can develop their own adaptive platforms according to the actual requirements of the product. This display supports common platforms such as Arduino and Raspberry Pi.
Engineers do not have development capabilities? It doesn't matter. We also provide this product with a driver board model HTM-H013A2-SPI-A01. The driving method is simple and easy to operate. Maybe the square is not your best choice. Then, you can also choose the same size of circular TFT product series: 1.3-inch circular TFT display.
General Feature:
|
https://www.display-lcd.com/data/upload/admin/202401/65a64b1d0e7f8.pdf
