Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H013A1HQIST2C16
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Content: |
320x320 Dots |
Dimensions (mm): |
44x44x3.03 |
Field Of View Window Size: |
Full View |
Backlight Brightness: |
250cd/m2 |
Driver Chip: |
ST7796DW |
Interface: |
MIPI |
Operating Temperature:: |
-20~70℃ |
Display Content: |
320x320 Dots |
Dimensions (mm): |
44x44x3.03 |
Field Of View Window Size: |
Full View |
Backlight Brightness: |
250cd/m2 |
Driver Chip: |
ST7796DW |
Interface: |
MIPI |
Operating Temperature:: |
-20~70℃ |

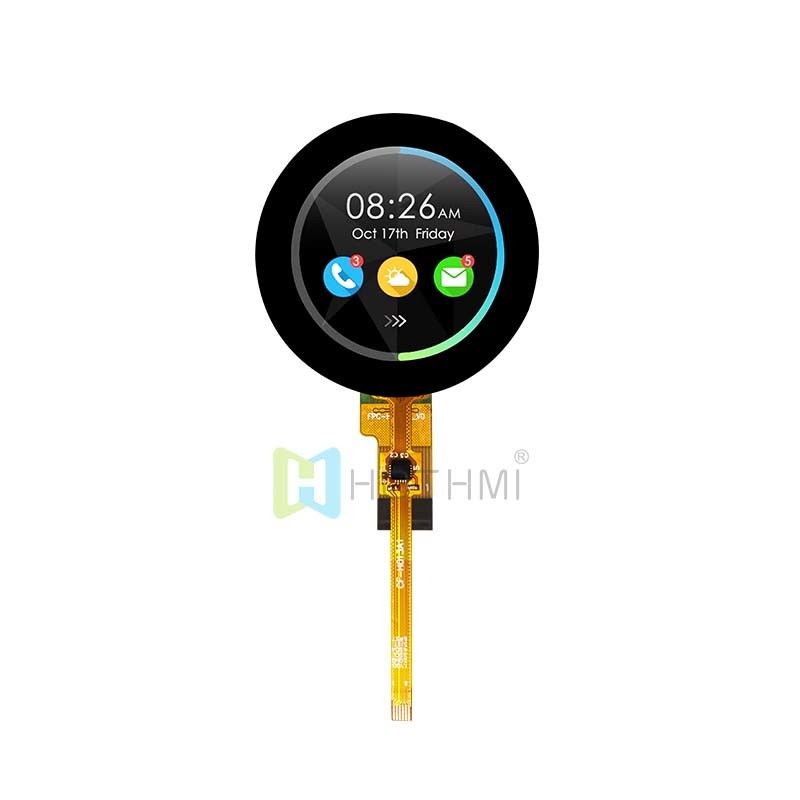

This1.3 inch round TFT LCD display has a diameter of 1.3 inches and a resolution of 320x320 pixels. This circular TFT display consists of an IPS TFT-LCD panel with higher contrast, a pure black background when the display or pixel is turned off, a wider viewing angle of left: 80 / right: 80 / top: 80 / bottom: 80 degrees (typical), a contrast ratio of 1,000:1 (typical), and a brightness of 250 nits (typical). It has a built-in ST7796DW driver IC and can communicate via the MIPI interface. This 1.3 inch round TFT LCD display comes with capacitive touch, multi-touch, and optical bonding manufacturing processes to give the display a high-quality picture. The non-touch version of the same series is TFT-H013A1HQIST3N16. The MIPI interface enables the display to achieve high-speed transmission and high-bandwidth capabilities as well as low power consumption, strong anti-interference capabilities, and the ability to efficiently transmit data and speed up the response speed of the display module.
This 1.3 inch round TFT LCD display module is suitable for compact devices such as smart meters, Android/RK motherboards, wearable devices, and instrument applications. They are also ideal for home automation products, white products and video systems. At the same time, we also provide other models of SPI interface TFT-H013A6QQIGC7N10 with the same size, and model HTM-H013A6-SPI-V0 with driver module.
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H013A1HQIST2C16 | |
| Diagonal size | 1.3” | Inch |
| Resolution | 320x320 | Dot |
| Dimensions | 44x44x3.03 | mm |
| Active area (AA) | 33.12x33.12 | mm |
| LCD type | 1.3” TFT Module | mm |
| Display viewing angle | Full View | |
| Aspect ratio | 1:1 | |
| Backlight type | LED white | |
| TFT driver IC | ST7796DW | |
| Brightness | 250cd/m2 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ | ℃ |
