Product Details
Place of Origin: dongguan,China
Brand Name: HOTHMI
Model Number: TFT-H101A5WSIFT3N50
Payment & Shipping Terms
Minimum Order Quantity: 2
Delivery Time: 25 days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Display Format: |
1024x600 |
Outline L X W X H:: |
235.00×143.00×3.00mm |
Active Area L X W:: |
222.72x125.28mm |
Luminance: |
300cd/m2 |
Interface: |
TTL 24 Bit |
Controller Type: |
EK79001+EK73215 |
Operating Temperature:: |
-20°C~70°C |
Display Format: |
1024x600 |
Outline L X W X H:: |
235.00×143.00×3.00mm |
Active Area L X W:: |
222.72x125.28mm |
Luminance: |
300cd/m2 |
Interface: |
TTL 24 Bit |
Controller Type: |
EK79001+EK73215 |
Operating Temperature:: |
-20°C~70°C |

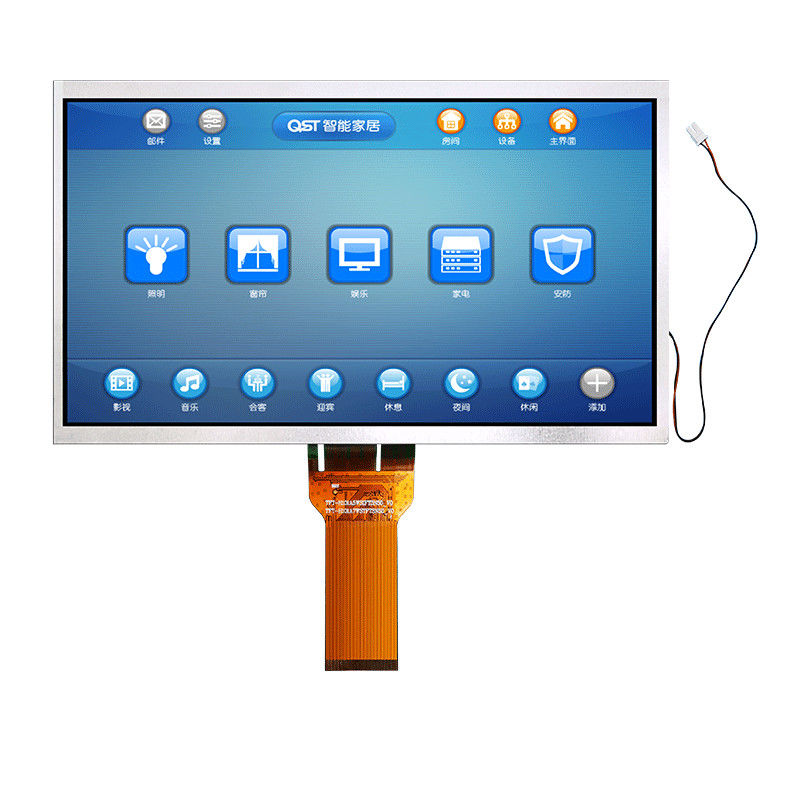

10.1 Inch LCD Display 1024x600 IPS TFT LCD Panel TFT LCD Display Manufacturer
TFT-H101A5WSIFT3N50 | 10.1" IPS LCD Display | TFT LCD Display Manufacturer | 1024x600 resolution | -20℃~70℃ | IC EK79001+EK73215 | Interface TTL 24 bit
Looking for a high-quality LCD display that's perfect for your latest project? Look no further than the TFT-H101A5WSIFT3N50 - a 10.1 inch IPS LCD display with a stunning 1024x600 resolution. Designed and manufactured by a top-tier TFT LCD display manufacturer, this panel delivers excellent image quality and color reproduction, making it perfect for a wide range of applications.
Not only does this LCD display look great, but it's also built to last. With a temperature range of -20℃ to 70℃, it can handle even the toughest environments. And thanks to its IC EK79001+EK73215 and interface TTL 24 bit, it's easy to integrate into your existing systems.
Whether you're building a new digital signage system, designing a new industrial control panel, or just need a high-quality display for your latest project, the TFT-H101A5WSIFT3N50 is the perfect choice. So why wait? Order yours today and start experiencing the benefits of this top-quality LCD display for yourself!
General Feature
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H101A5WSIFT3N50 | |
| Diagonal size | 10.1” | Inch |
| Resolution | 1024x600 | Dot |
| Dimensions | 235x143x3.0 | mm |
| Active area (AA) | 222.72x128.28 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | IPS | |
| Aspect ratio | 3:2 | |
| Backlight type | LED white | |
| TFT driver IC | EK79001+EK73215 | |
| Brightness | 300 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ | ℃ |
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.
Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.
Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.
Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
